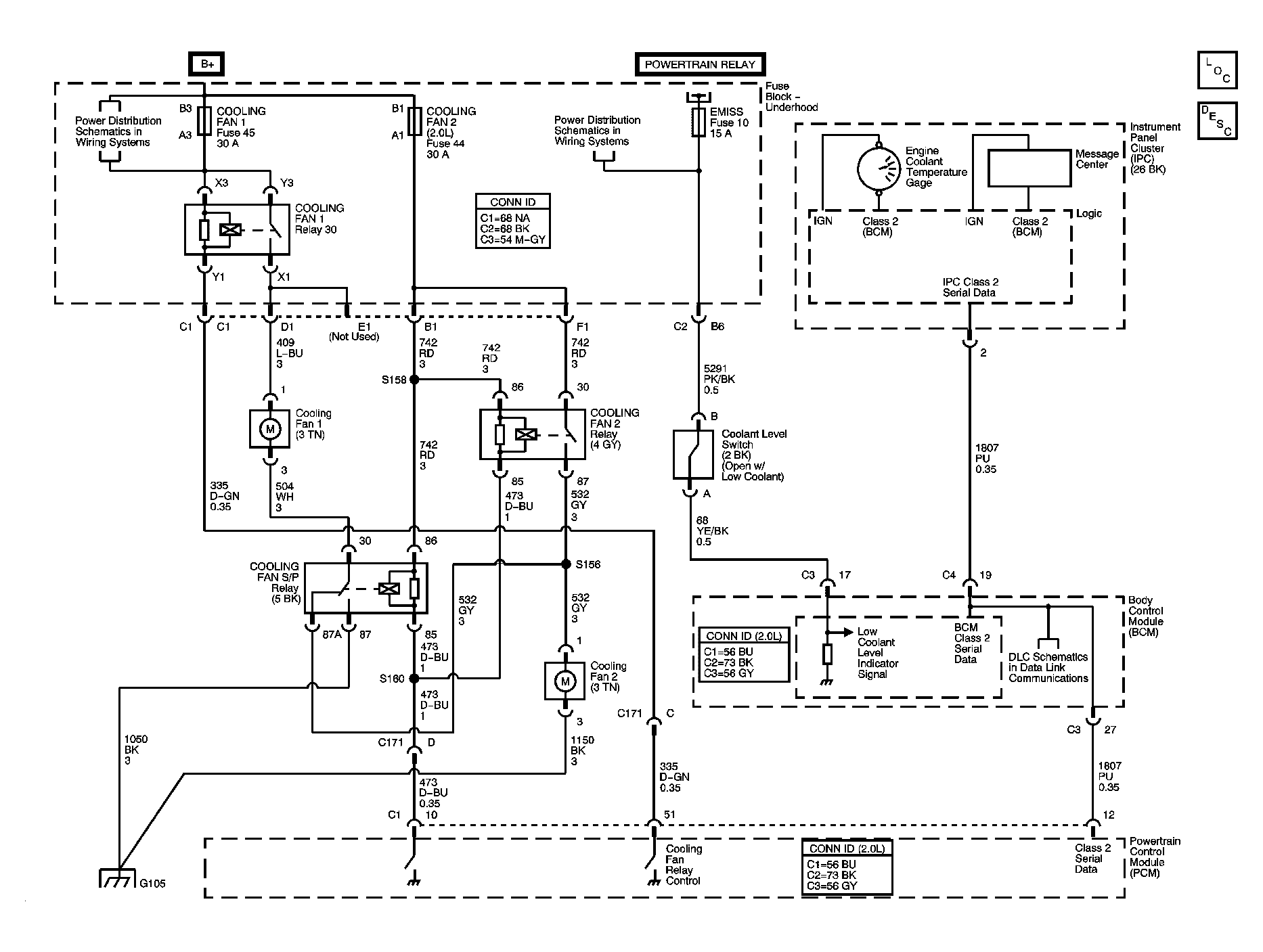

Home >> Saturn >> 2004 >> Ion 1 Standard >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Schematic and Routing Diagrams >> Engine Cooling Schematics (2.0L)
