Headlights/Daytime Running Lights (DRL) Schematics

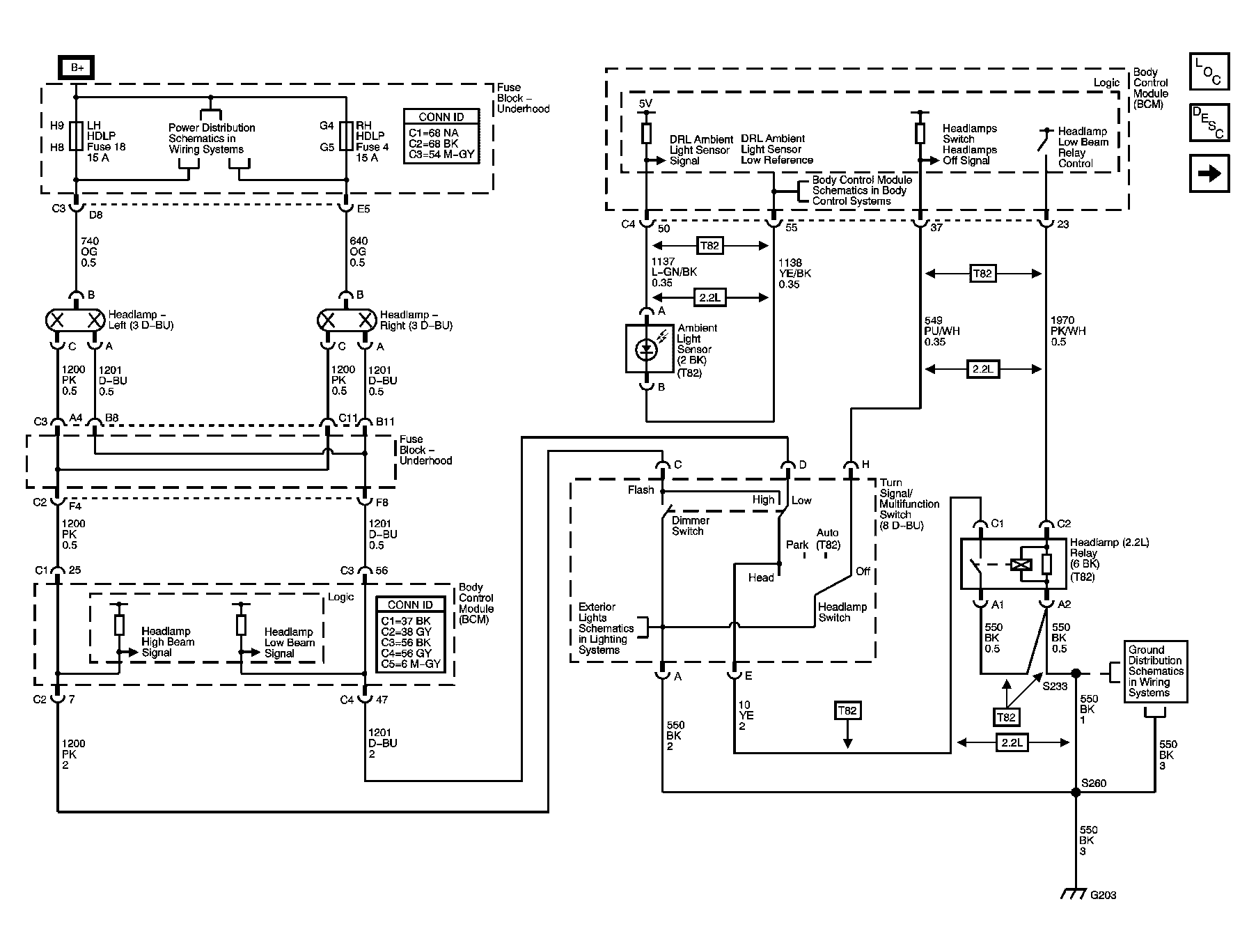

Fig 1: Headlamps - Coupe
GM1255423Courtesy of GENERAL MOTORS CORP.

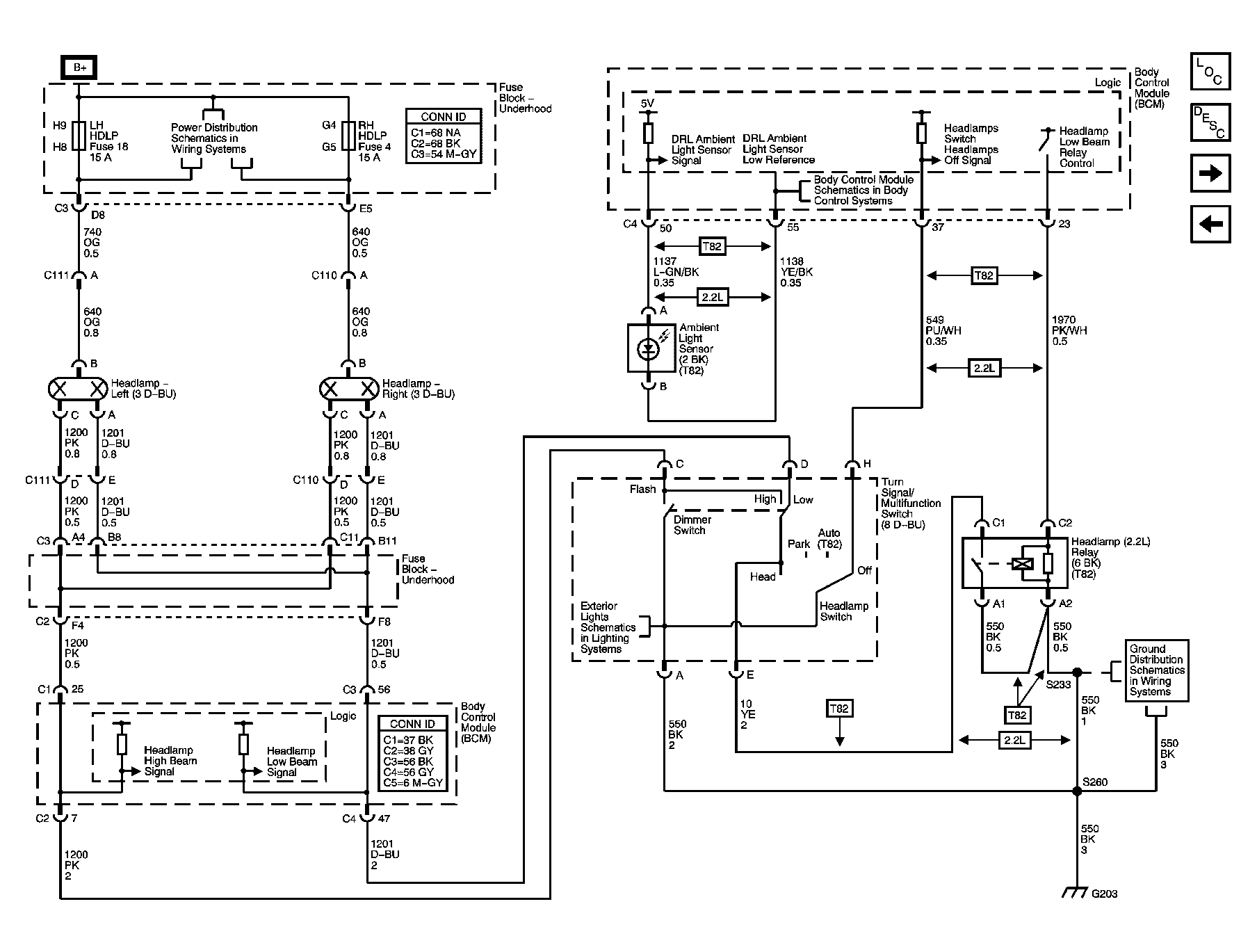

Fig 2: Headlamps - Sedan
GM1255425Courtesy of GENERAL MOTORS CORP.
Fig 3: Daytime Running Lamps
GM1255426Courtesy of GENERAL MOTORS CORP.
