Exterior Lights Schematics

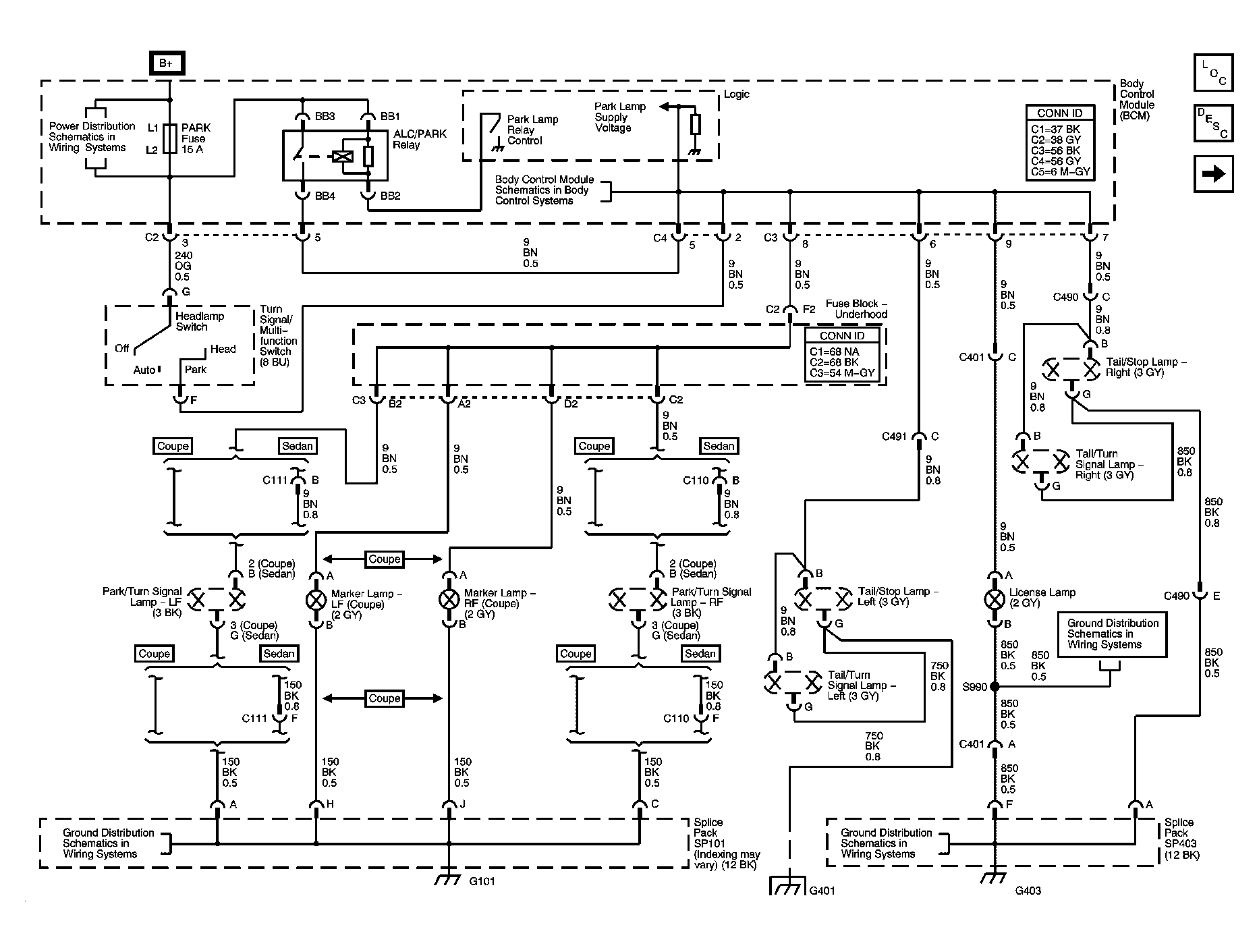

Fig 1: Park Lamps - Early Production
GM1255435Courtesy of GENERAL MOTORS CORP.
Fig 2: Park Lamps - Late Production
GM1430022Courtesy of GENERAL MOTORS CORP.

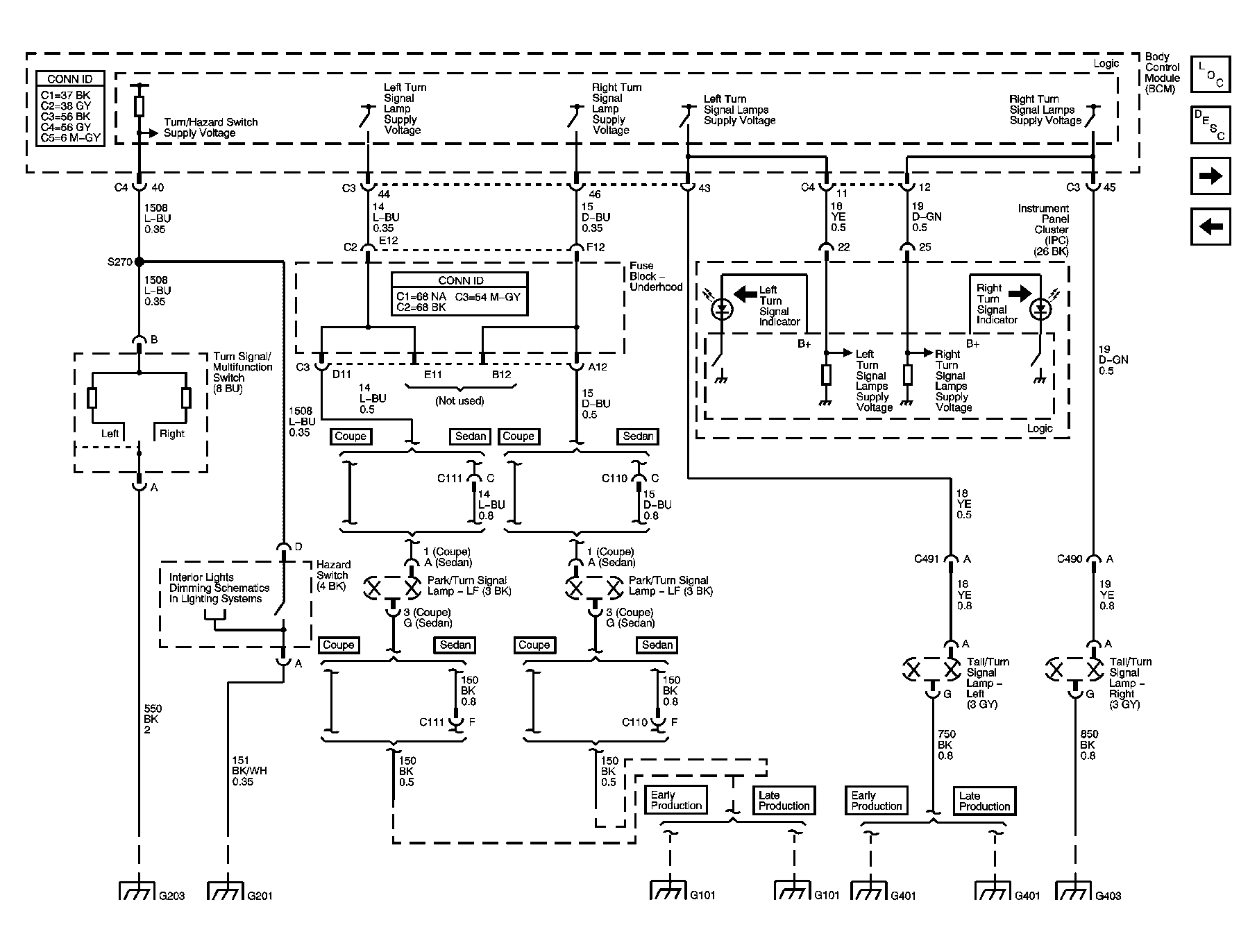

Fig 3: Turn/Hazard Lamps
GM1255437Courtesy of GENERAL MOTORS CORP.

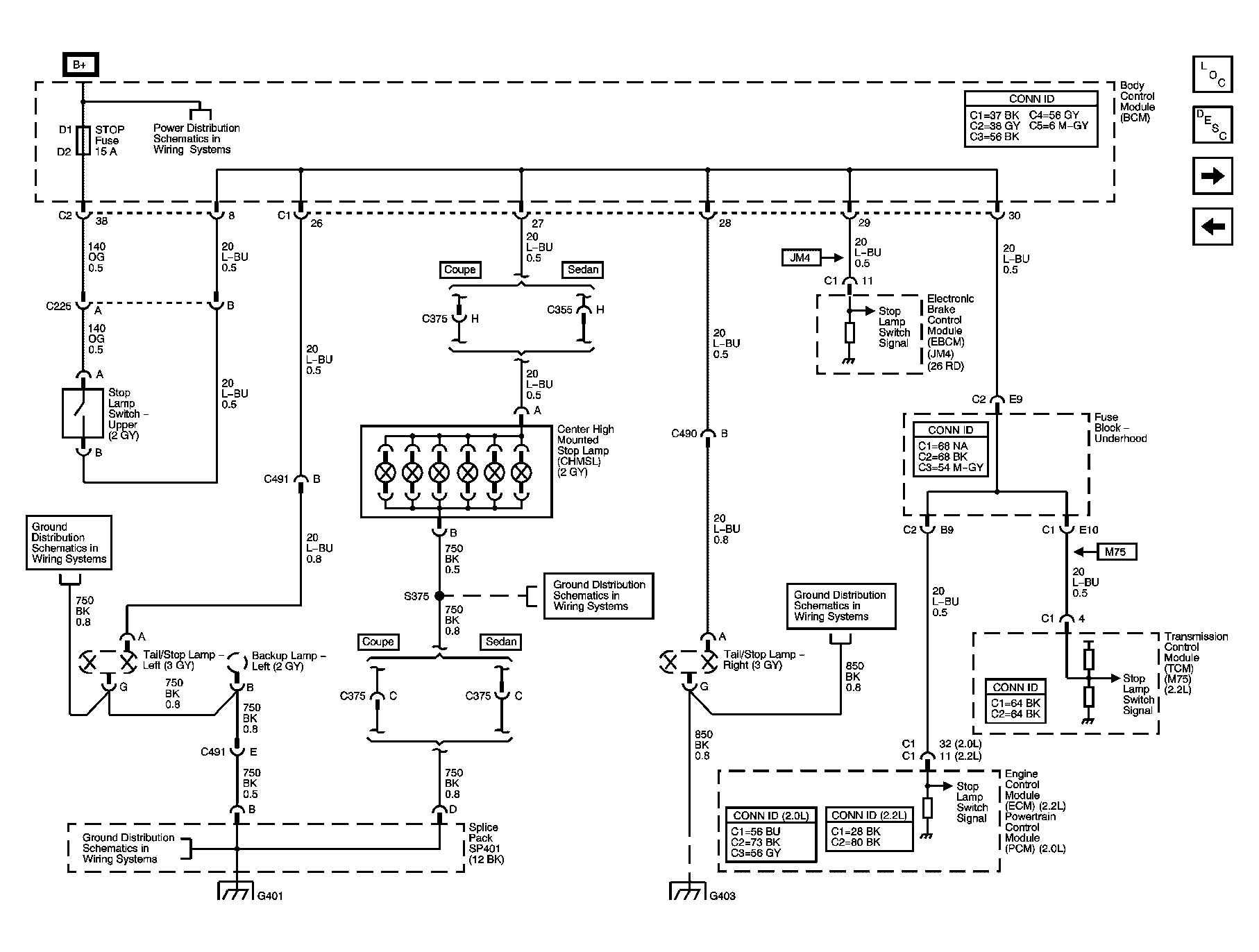

Fig 4: Stop Lamps - Early Production
GM1255439Courtesy of GENERAL MOTORS CORP.

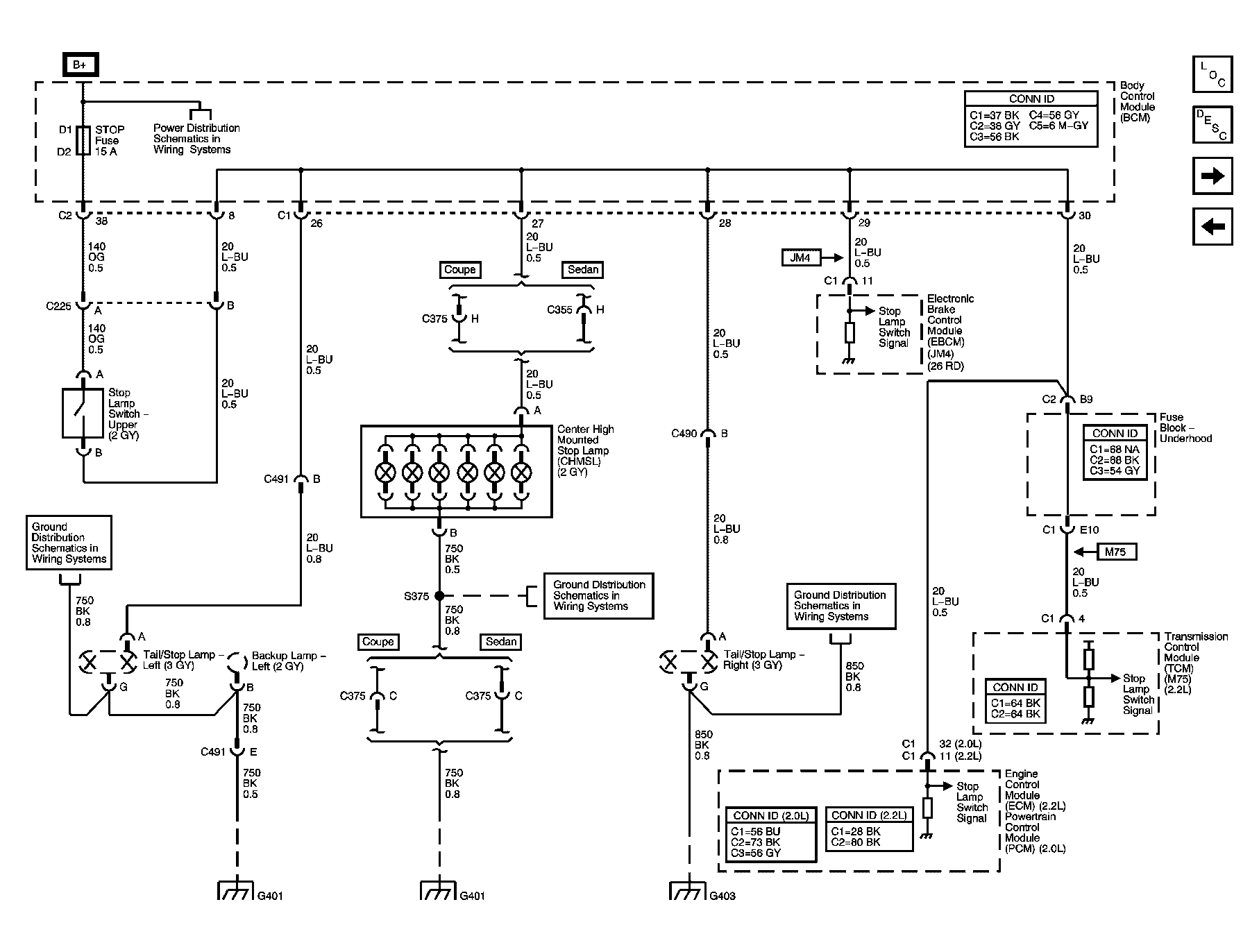

Fig 5: Stop Lamps - Late Production
GM1430040Courtesy of GENERAL MOTORS CORP.

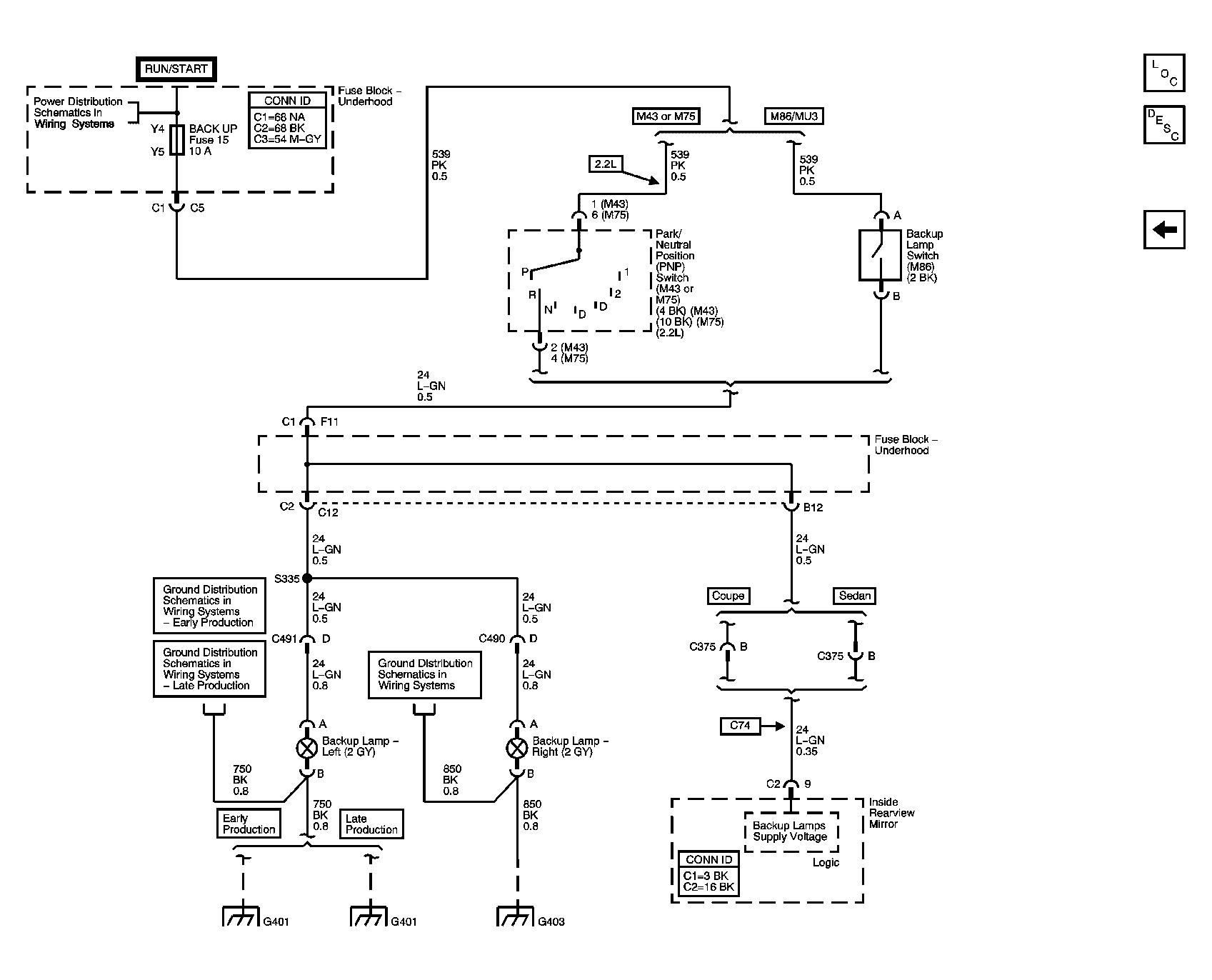

Fig 6: Backup Lamps
GM1255443Courtesy of GENERAL MOTORS CORP.
