Saturn
>>
2004
>>
Ion 1 Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrument Panel System Displays, Gauges And Console
>>
Schematic and Routing Diagrams
>>
Instrument Cluster Schematics
Instrument Cluster Schematics

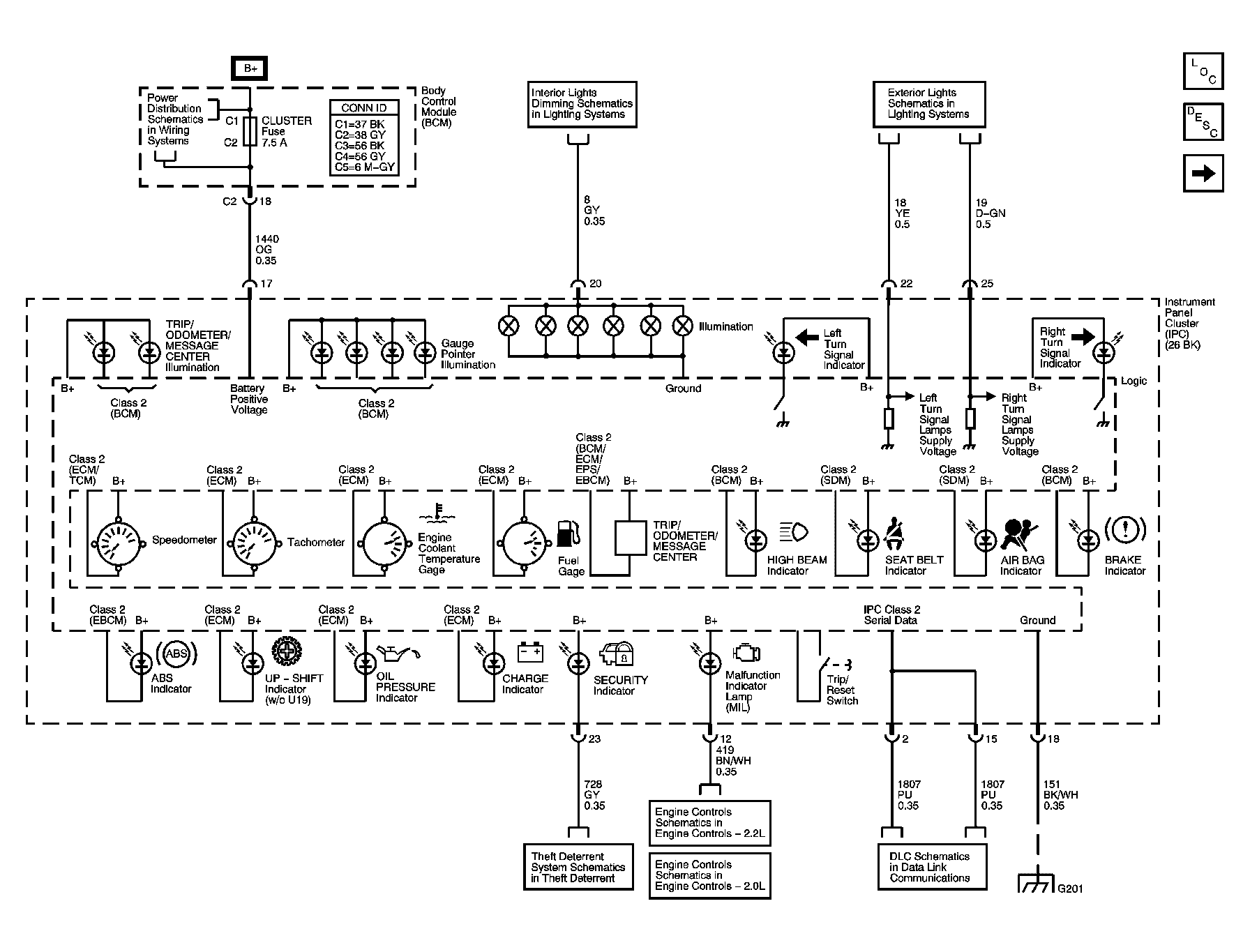

Fig 1: DLC, Gages, Ground, Indicators, and Power Schematic
Courtesy of GENERAL MOTORS CORP.

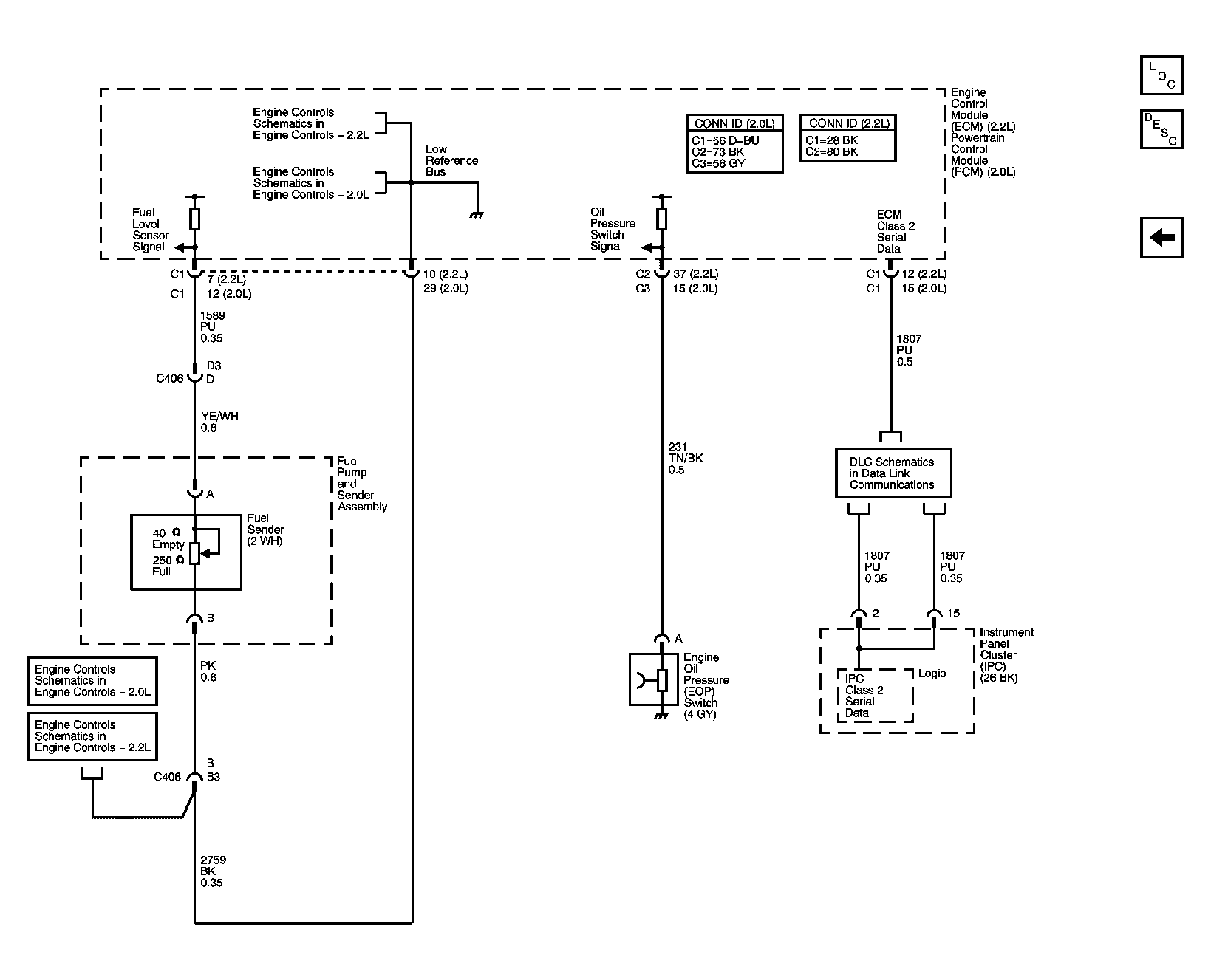

Fig 2: Fuel Level and Oil Pressure Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
