Instrument Panel, Gages, and Console Connector End Views

Engine Oil Pressure (EOP) Switch Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12065299 1-Way F Metri-Pack 150 Series Sealed (L-GY)
Pin	Wire Color	Circuit No.	Function
A	TN/BK	231	Oil Pressure Switch Signal

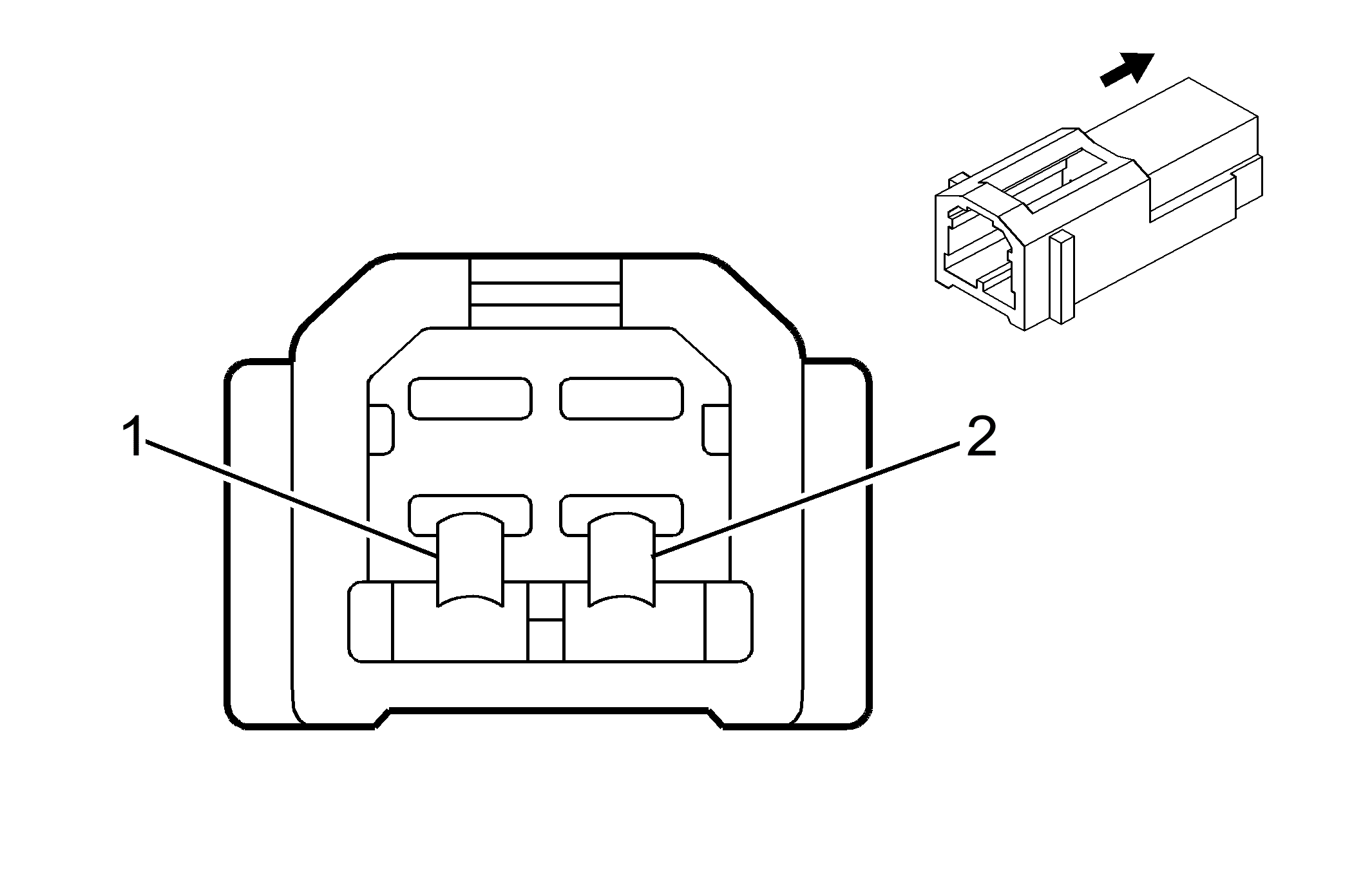

Fuel Sender Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		174460-1 2-Way F Amp (WH)
Pin	Wire Color	Circuit No.	Function
A	YE/WH	1589	Fuel Level Sensor Signal
B	PK/OG	2759	Low Reference

Instrument Panel Cluster (IPC) Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		1326043-1 26-Way F (BK)
Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	PU	1807	Class 2 Serial Data
3-11	-	-	Not Used
12	BN/WH	419	MIL Control
13-14	-	-	Not Used
15	PU	1807	Class 2 Serial Data
16	-	-	Not Used
17	OG	1440	Battery Positive Voltage
18	BK/WH	151	Ground
19	-	-	Not Used
20	GY	8	Instrument Panel Lamp Supply Voltage
21	-	-	Not Used
22	YE	18	Left Turn Signal Lamps Supply Voltage
23	GY	728	Security Indicator Control
24	-	-	Not Used
25	D-GN	19	Right Turn Signal Lamps Supply Voltage
26	-	-	Not Used
