Disc Brakes & Drum Brakes: Overhaul

NOTE: For overhaul procedures, use illustrations. See Fig 1 -Fig 3 . Manufacturer does not recommend overhaul of power brake booster or master cylinder. If service is required, replace component.

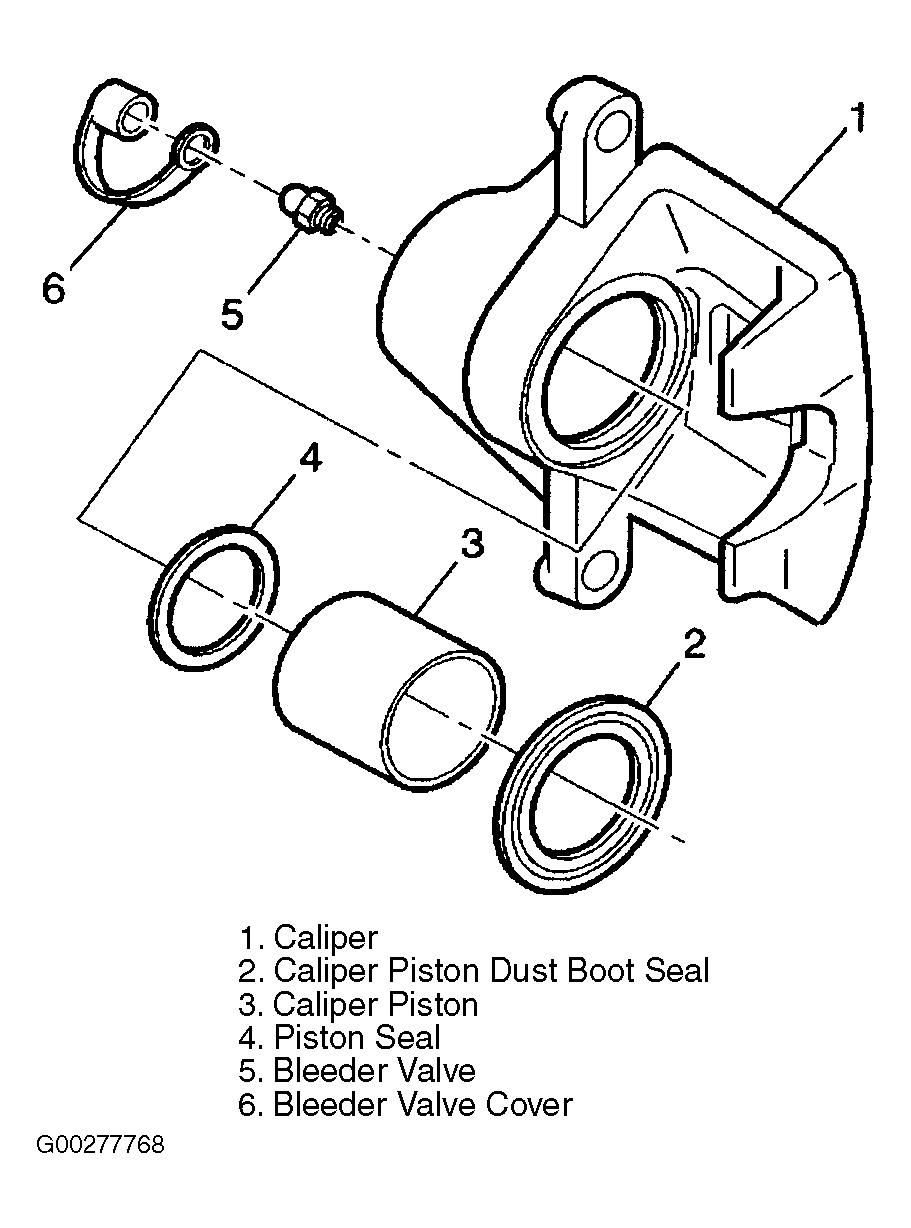

Fig 1: Exploded View Of Front Brake Caliper

Courtesy of GENERAL MOTORS CORP.

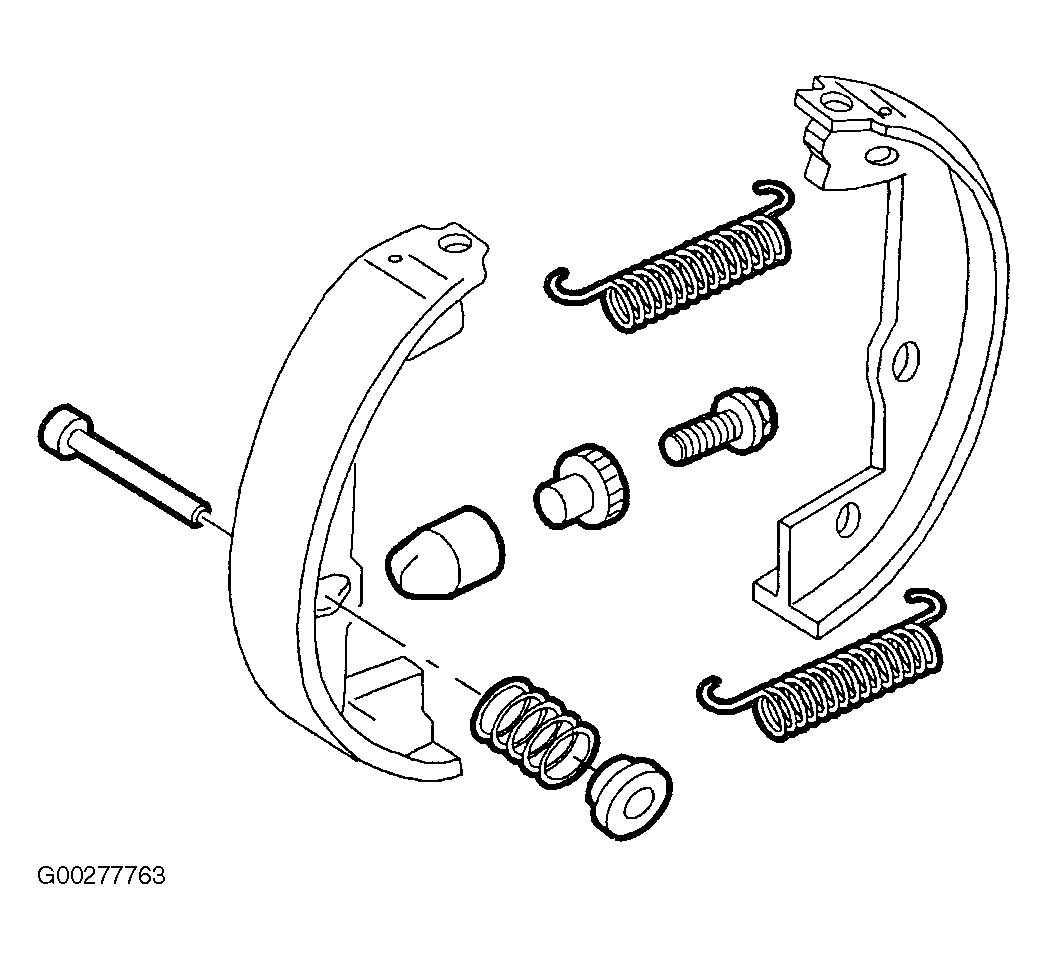

Fig 2: Exploded View Of Parking Brake (Rear Disc Brake System)

Courtesy of GENERAL MOTORS CORP.

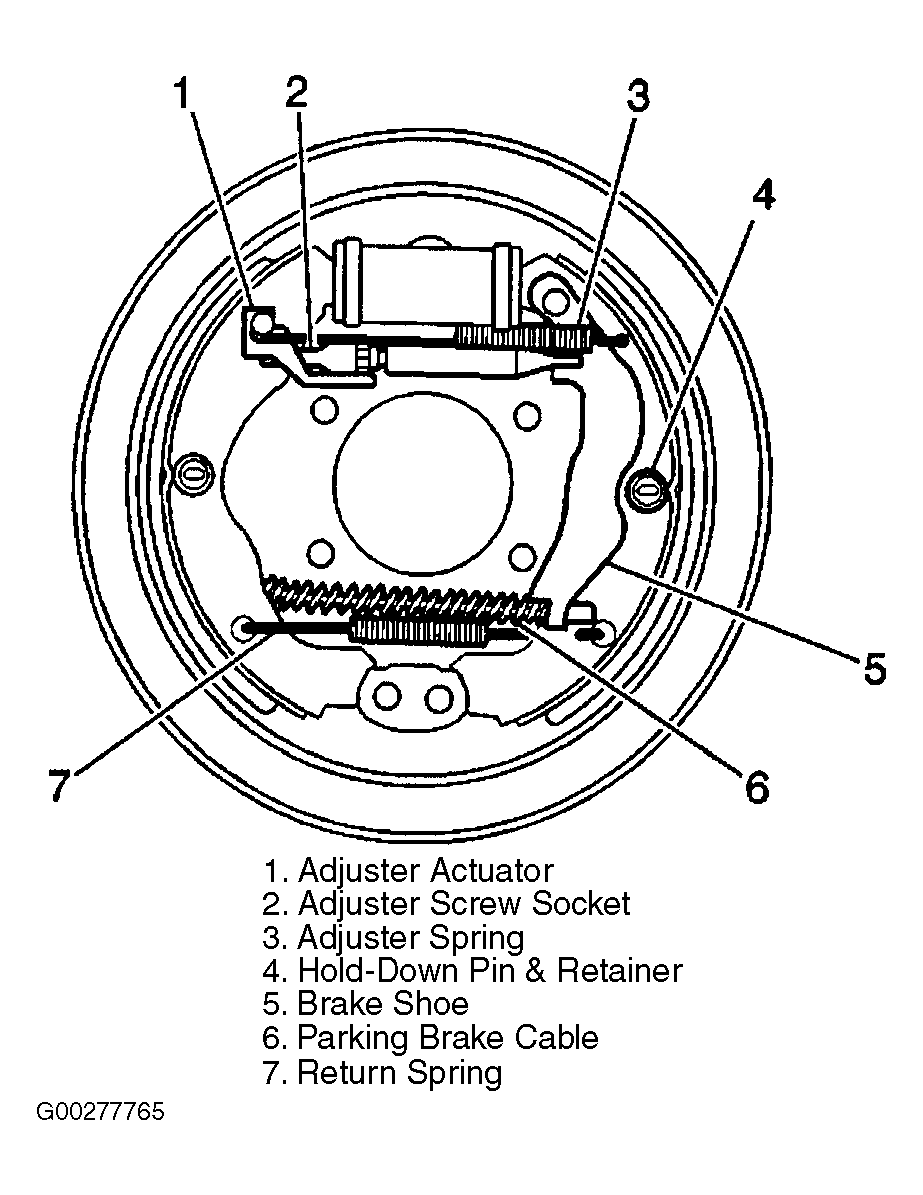

Fig 3: Identifying Rear Drum Brake Components

Courtesy of GENERAL MOTORS CORP.
