Seat Belt Schematics
Seat Belt Schematics

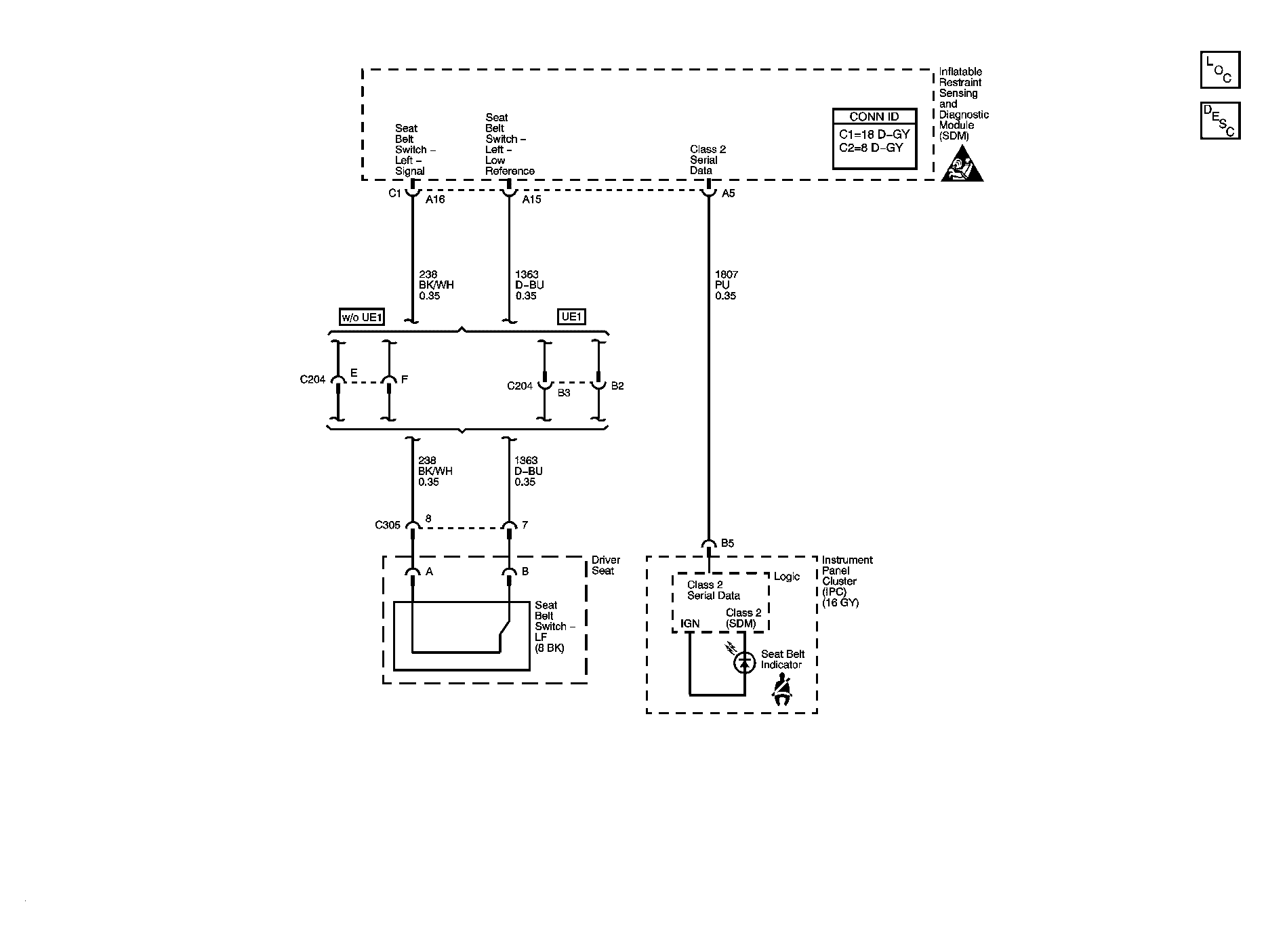

Fig 1: Seat Belt Schematics
Courtesy of GENERAL MOTORS CORP.
