Interior Lights Schematics

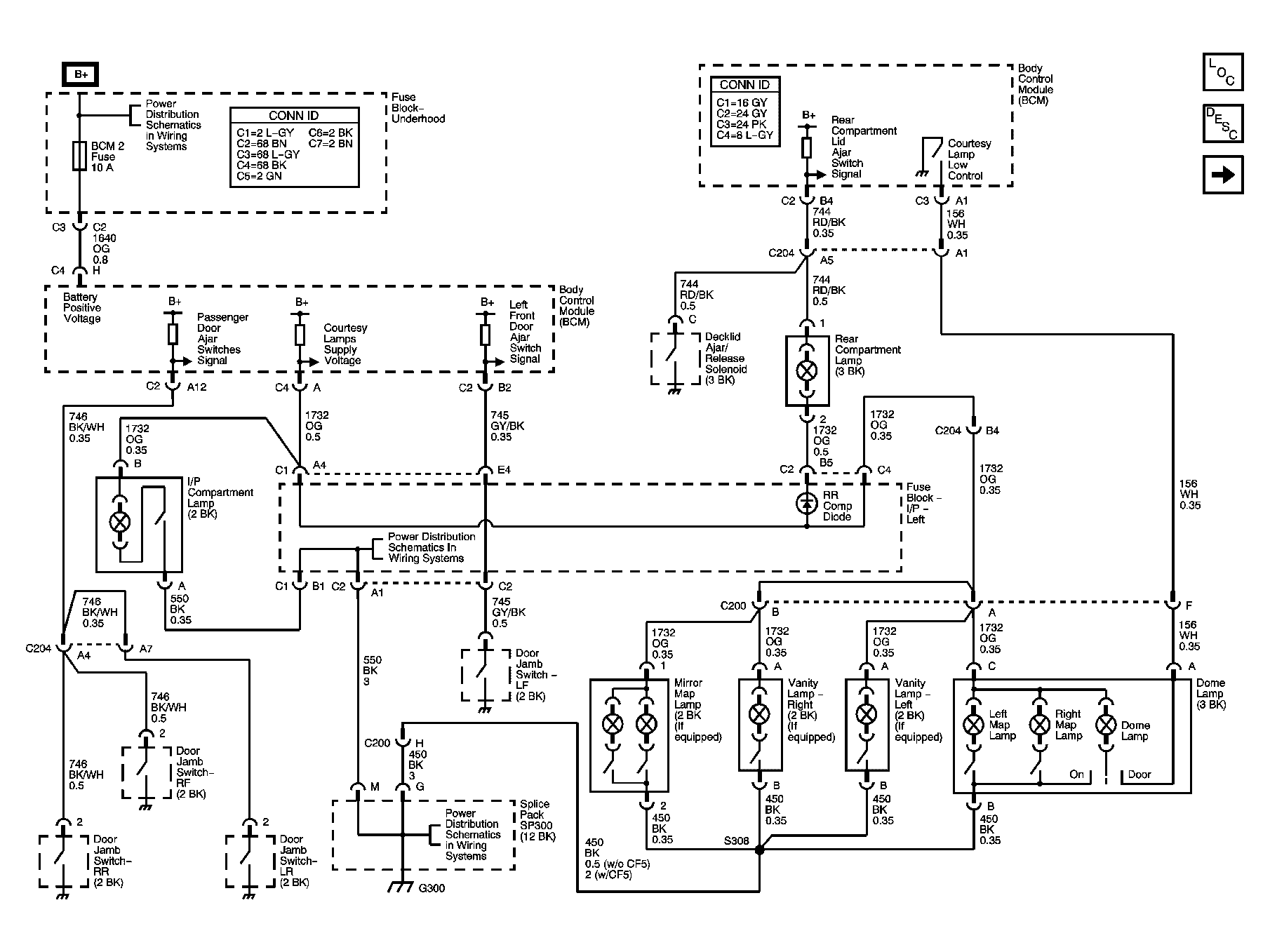

Fig 1: Sedan (W/ UE1)
GM1226348Courtesy of GENERAL MOTORS CORP.

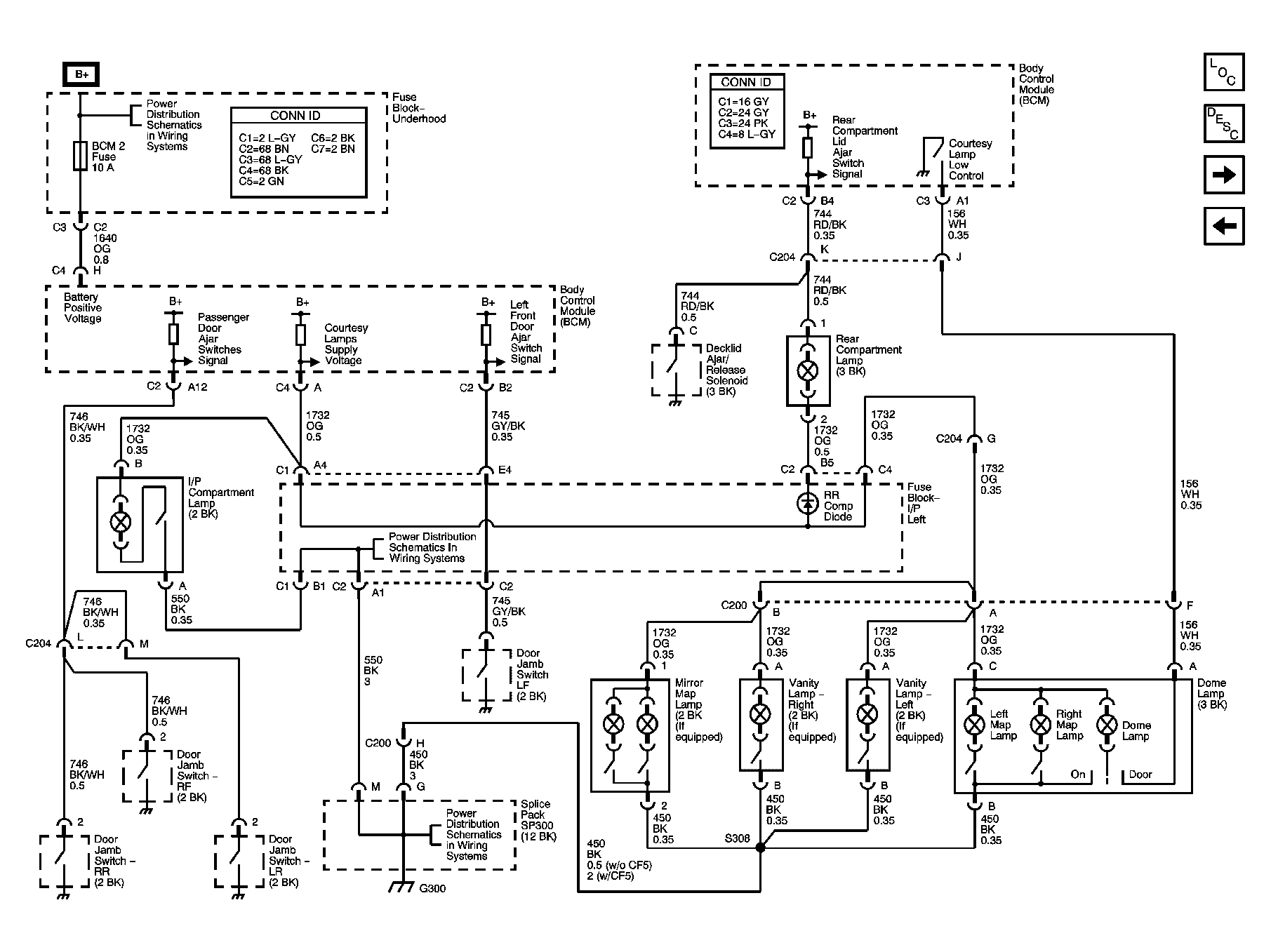

Fig 2: Sedan (W/O UE1)
GM1236382Courtesy of GENERAL MOTORS CORP.

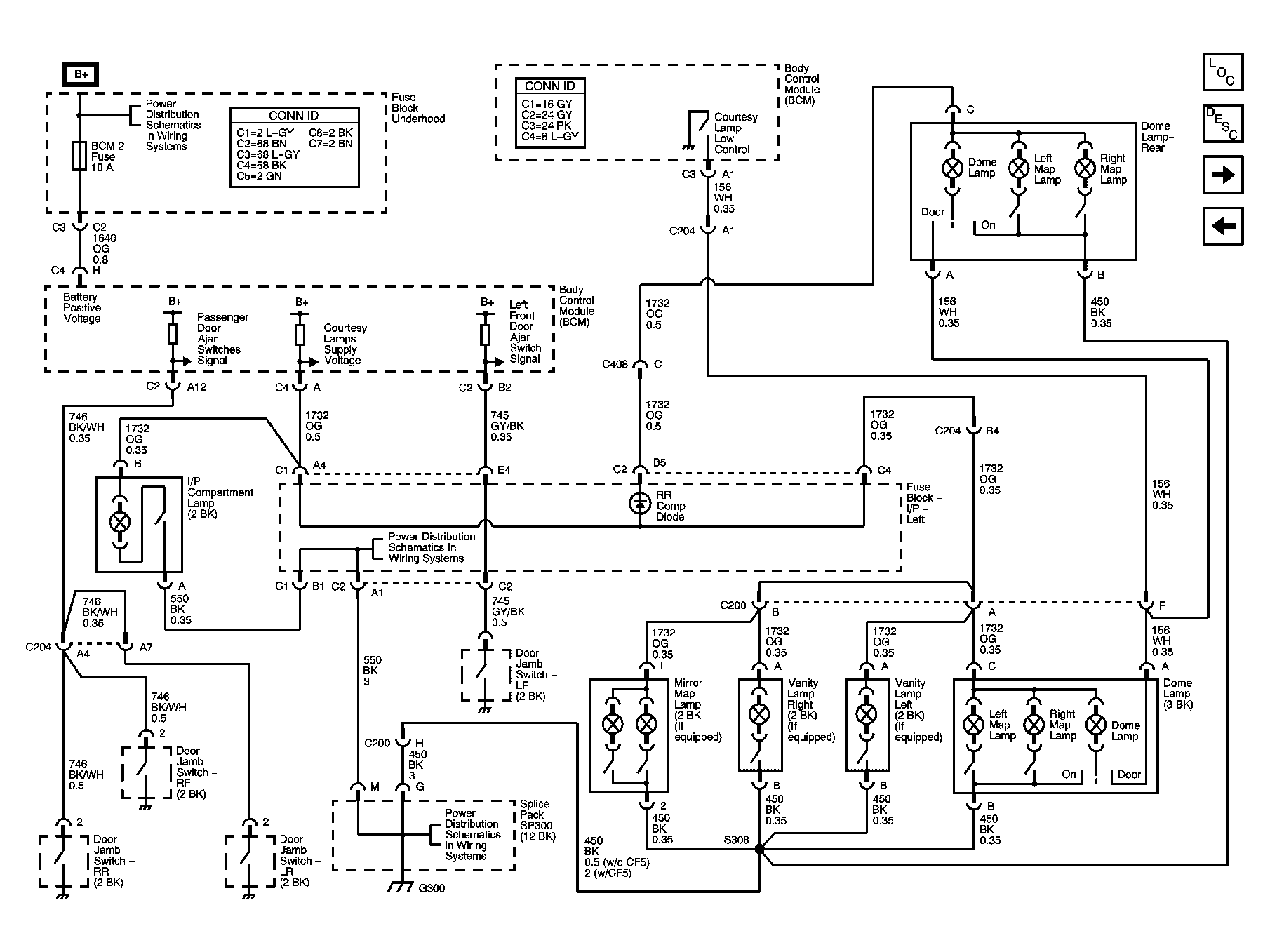

Fig 3: Wagon (W/UE1)
GM1226349Courtesy of GENERAL MOTORS CORP.

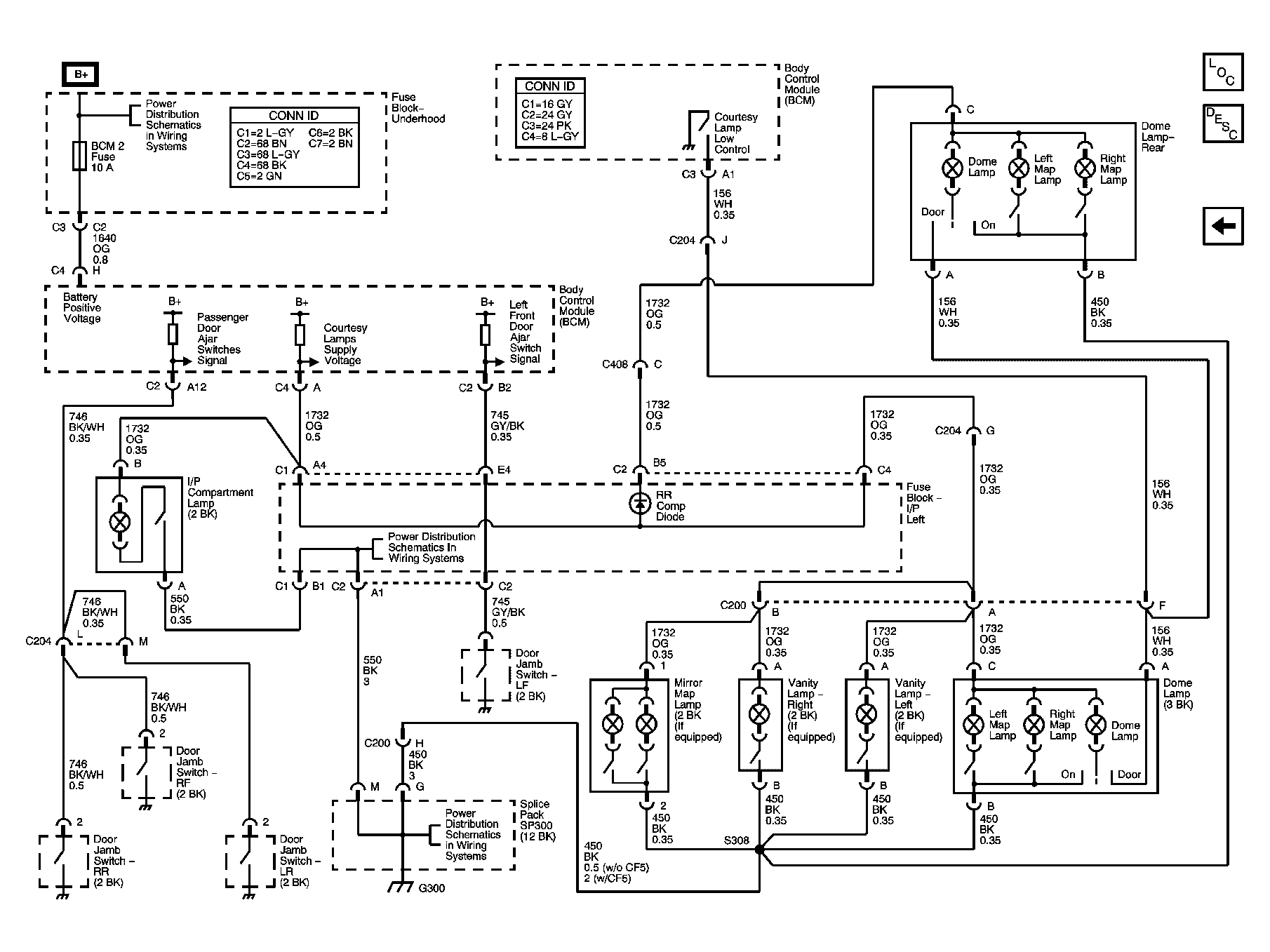

Fig 4: Wagon (W/O UE1)
GM1236385Courtesy of GENERAL MOTORS CORP.
