Instrument Cluster Schematics

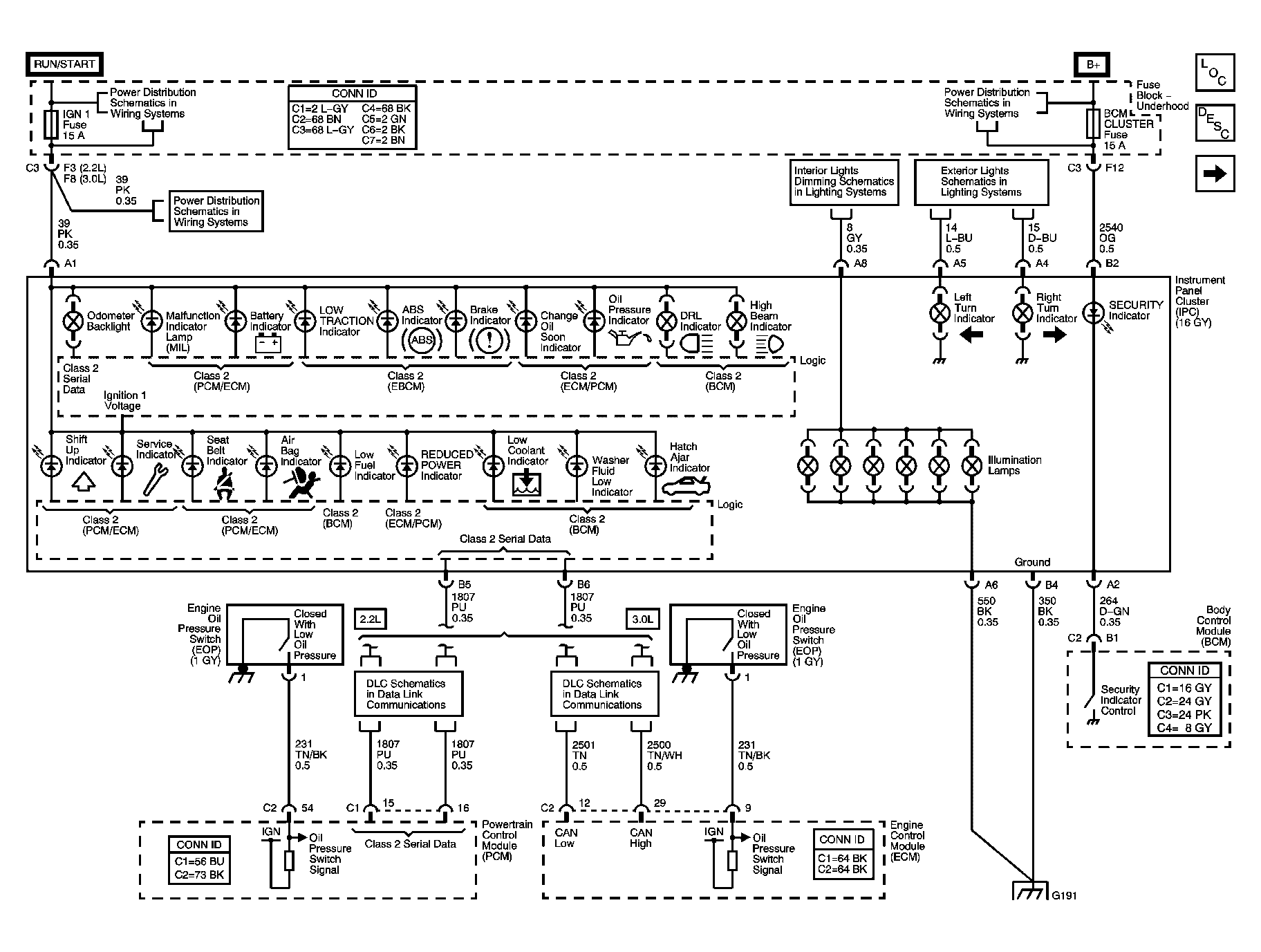

Fig 1: Power, Ground, and Indicators Schematic

GM1204511

Courtesy of GENERAL MOTORS CORP.

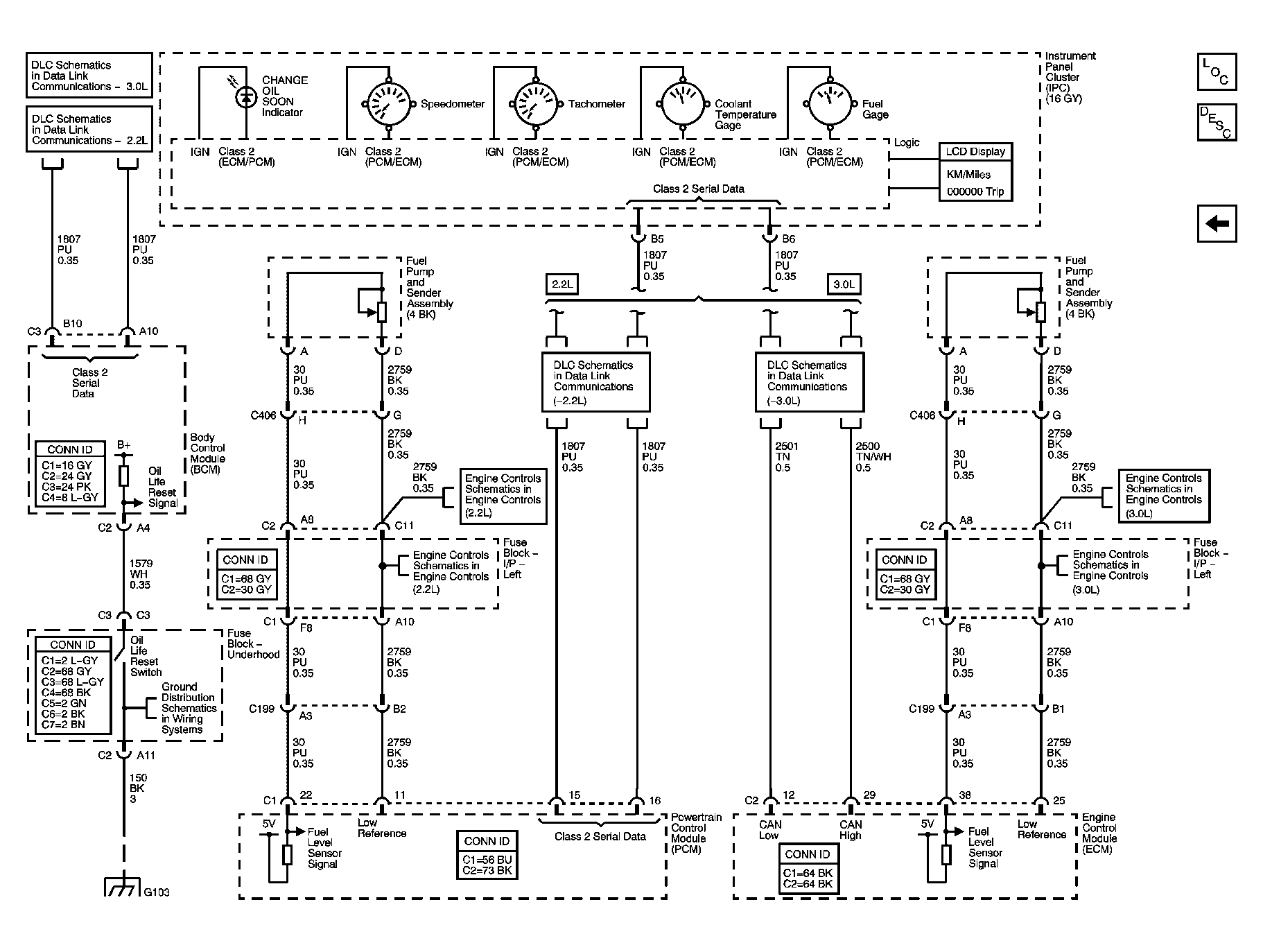

Fig 2: Gages Schematic

GM1204515

Courtesy of GENERAL MOTORS CORP.
