Power Distribution Schematics

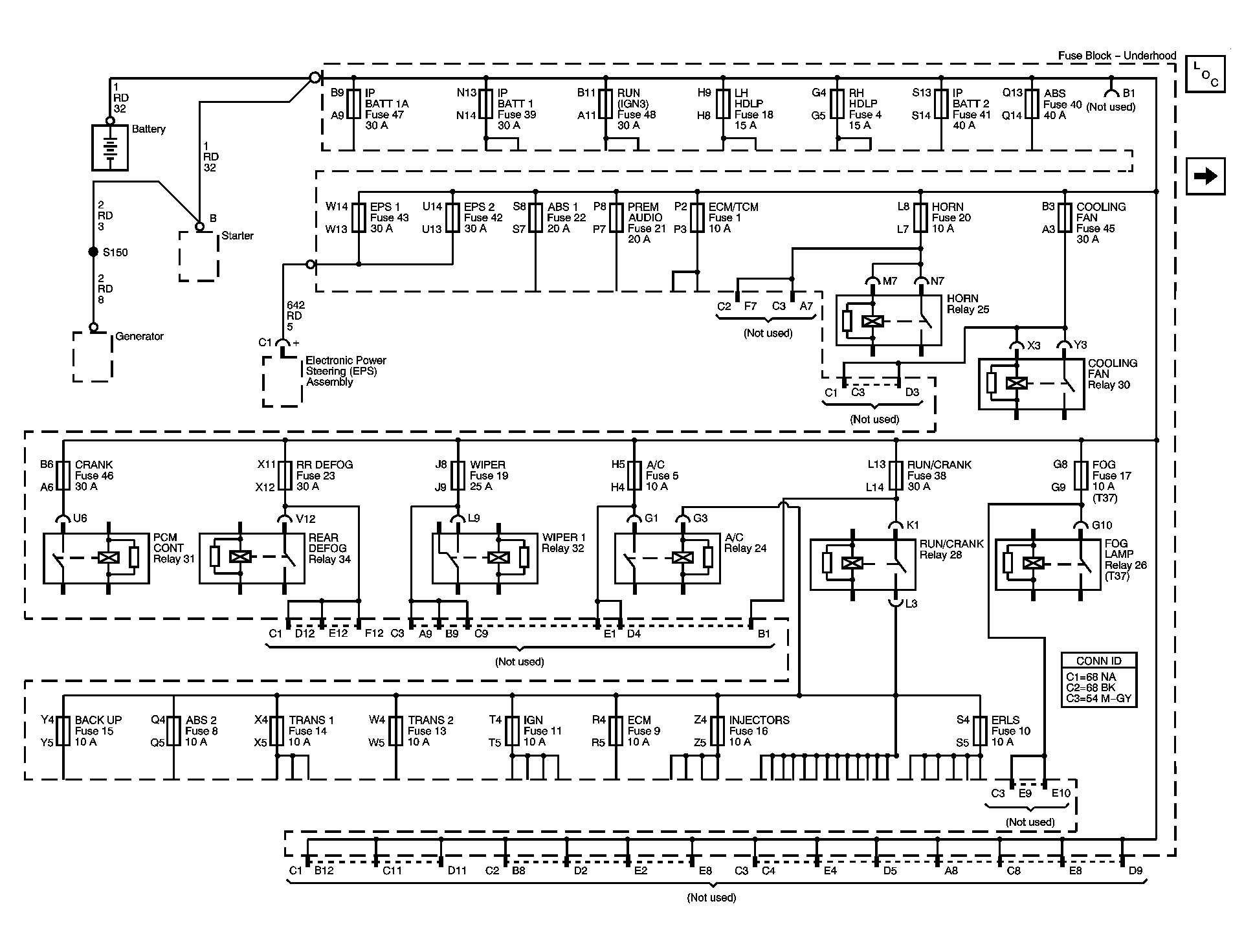

Fig 1: Fuse Block-Underhood Bus

Courtesy of GENERAL MOTORS CORP.

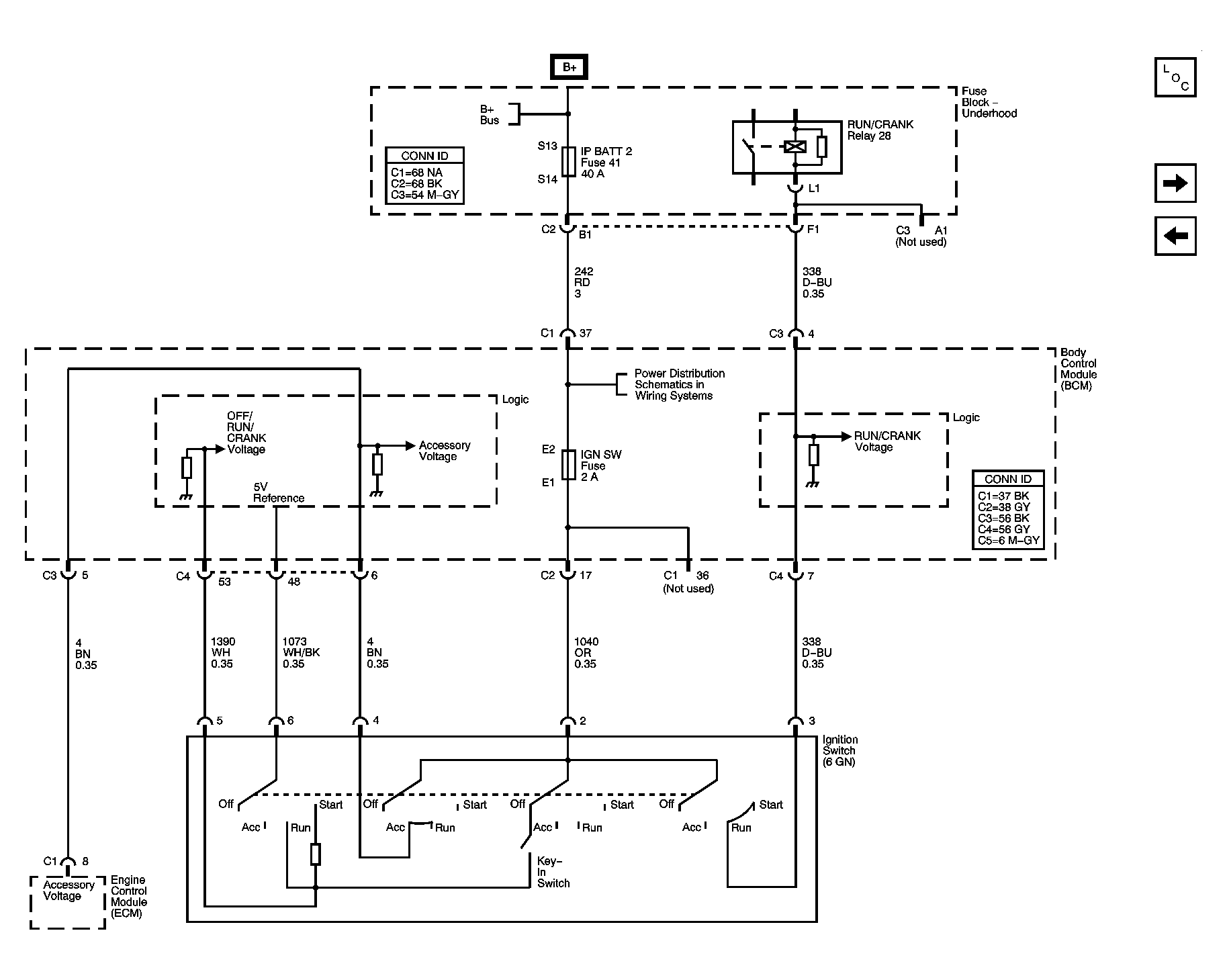

Fig 2: Ignition Switch

Courtesy of GENERAL MOTORS CORP.

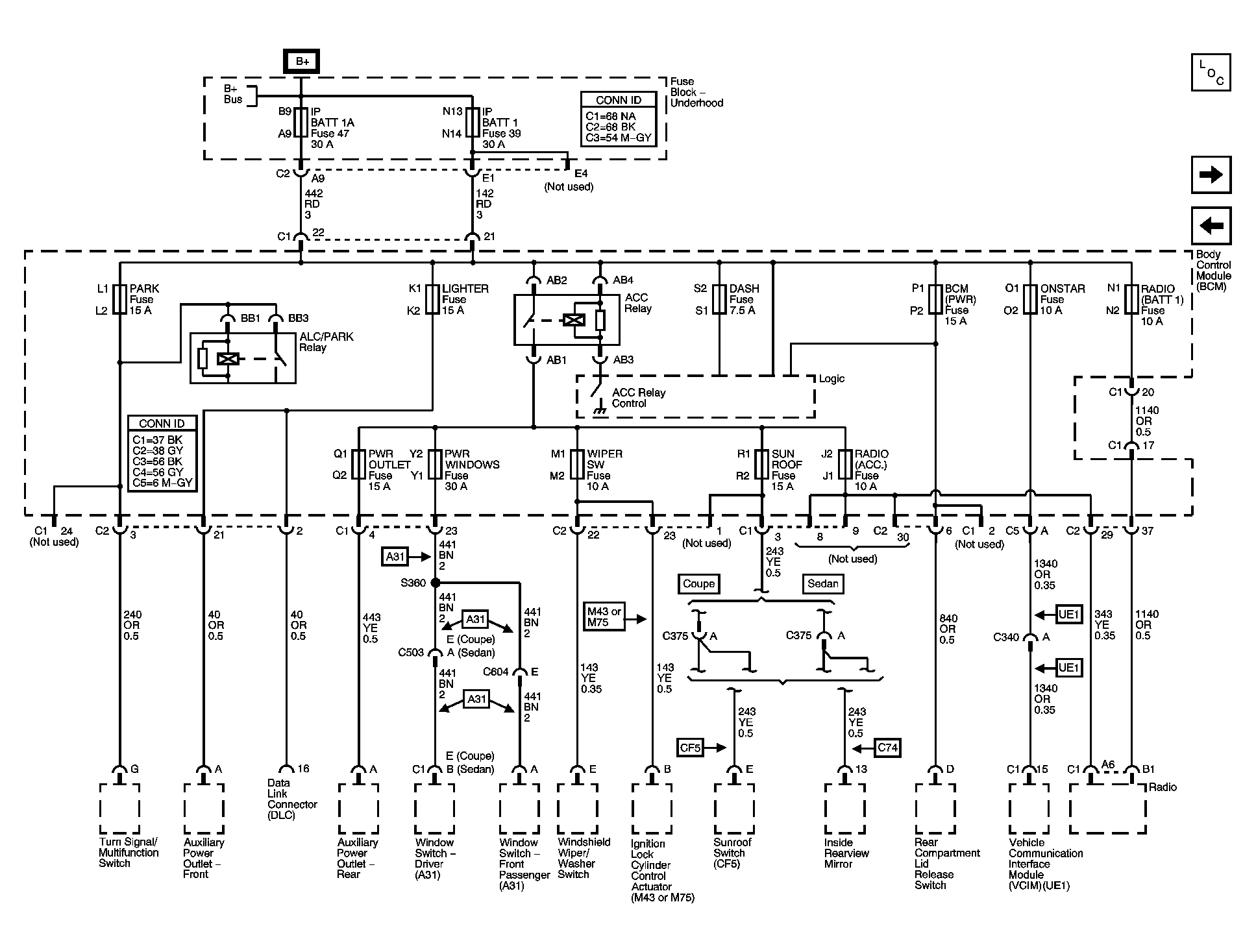

Fig 3: Fuse Block-Underhood Fuses: IP BATT1 and IP BATT1A, BCM Fuses: BCM PWR, DASH, LIGHTER, ONSTAR, PARK, PWR OUTLET, PWR WINDOWS, RADIO (ACC.), RADIO (BATT1), SUN ROOF, and WIPER

Courtesy of GENERAL MOTORS CORP.

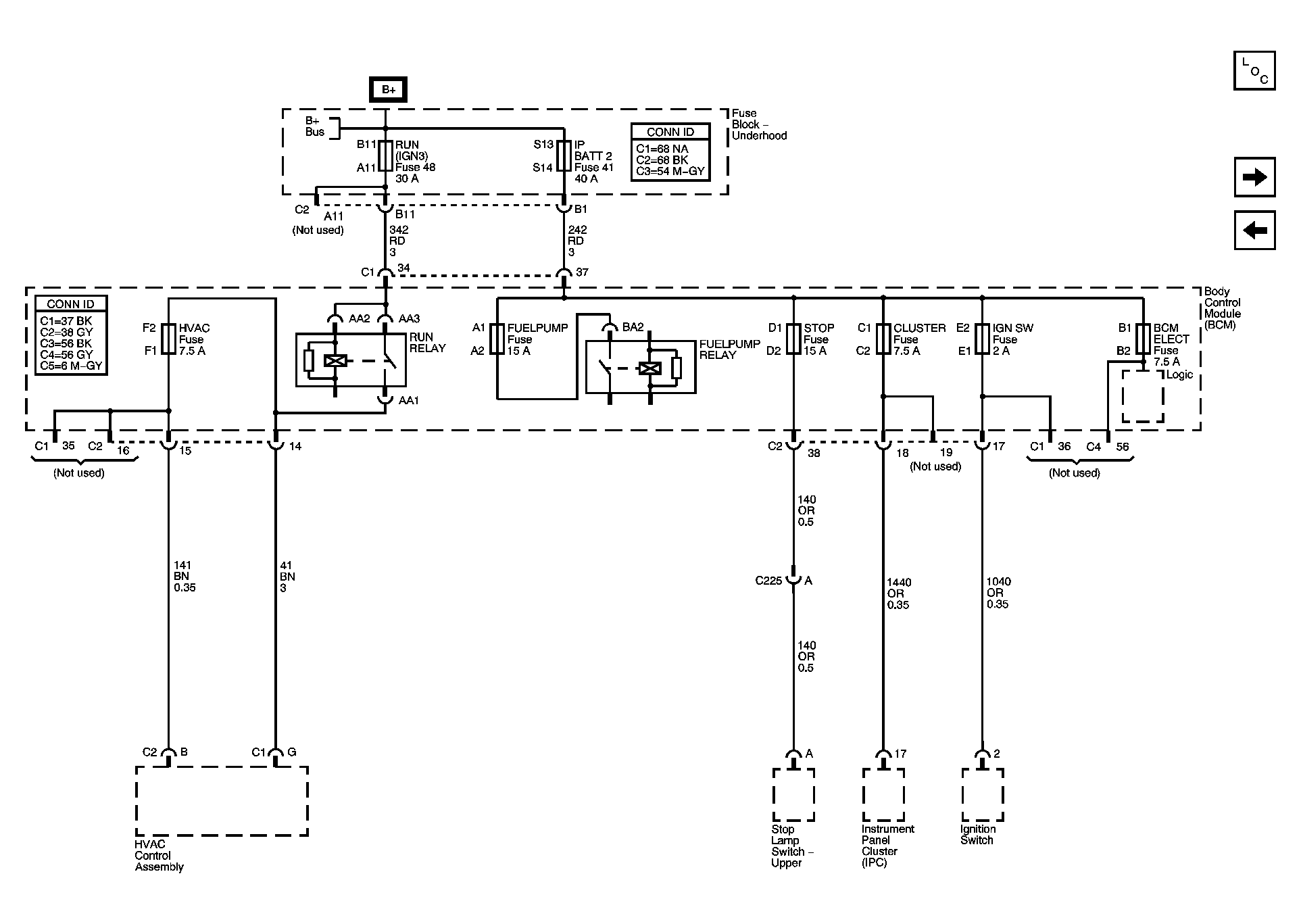

Fig 4: Fuse Block-Underhood Fuses: IP BATT2 and RUN (IGN3), BCM Fuses: BCM ELECT, CLUSTER, FUELPUMP, HVAC, IGN. SW, and STOP

Courtesy of GENERAL MOTORS CORP.

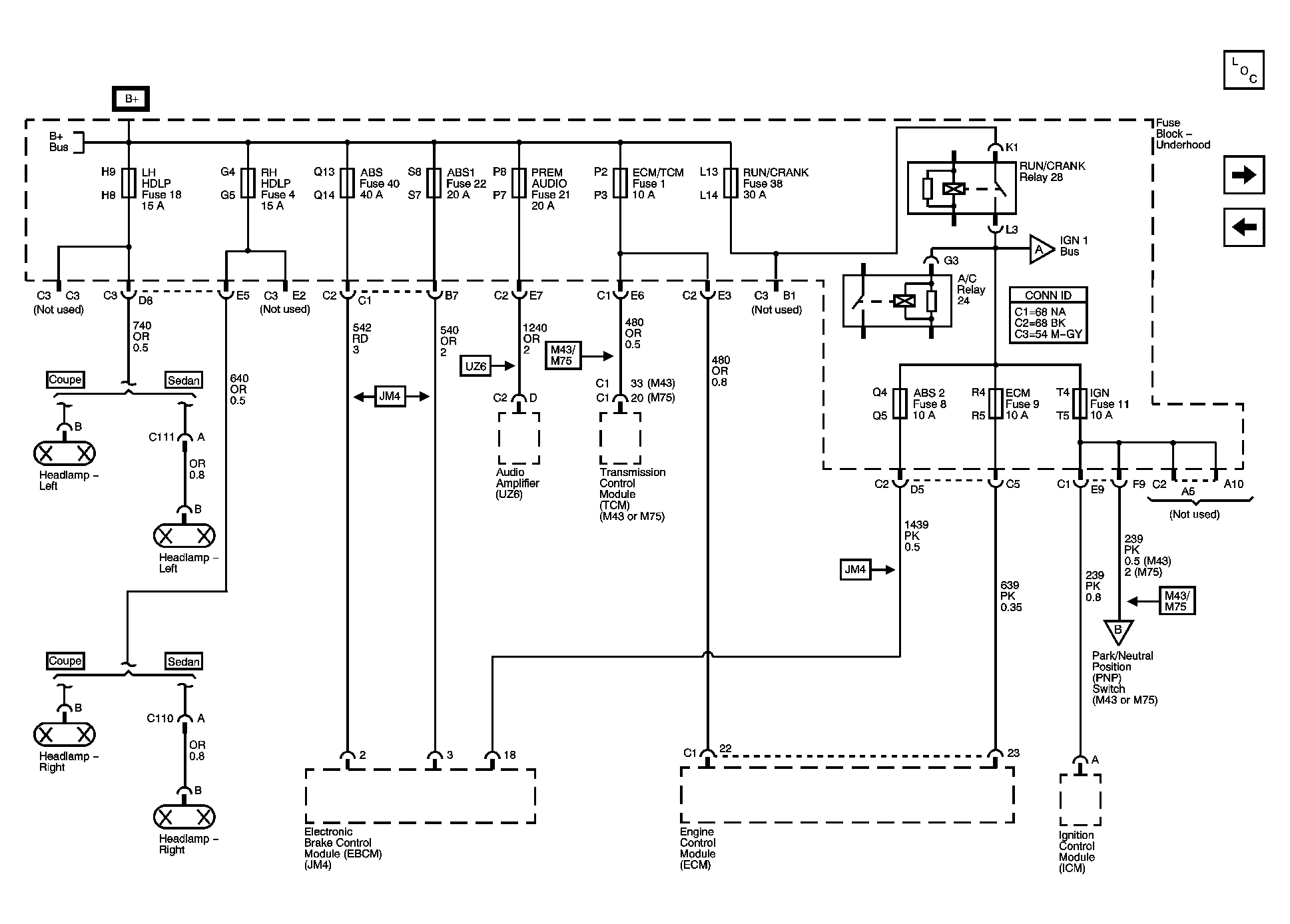

Fig 5: Fuse Block-Underhood Fuses: ABS, ABS1, ABS2, ECM, ECM/TCM, IGN, LH HDLP, PREM AUDIO, RH HDLP, and RUN/CRANK

Courtesy of GENERAL MOTORS CORP.

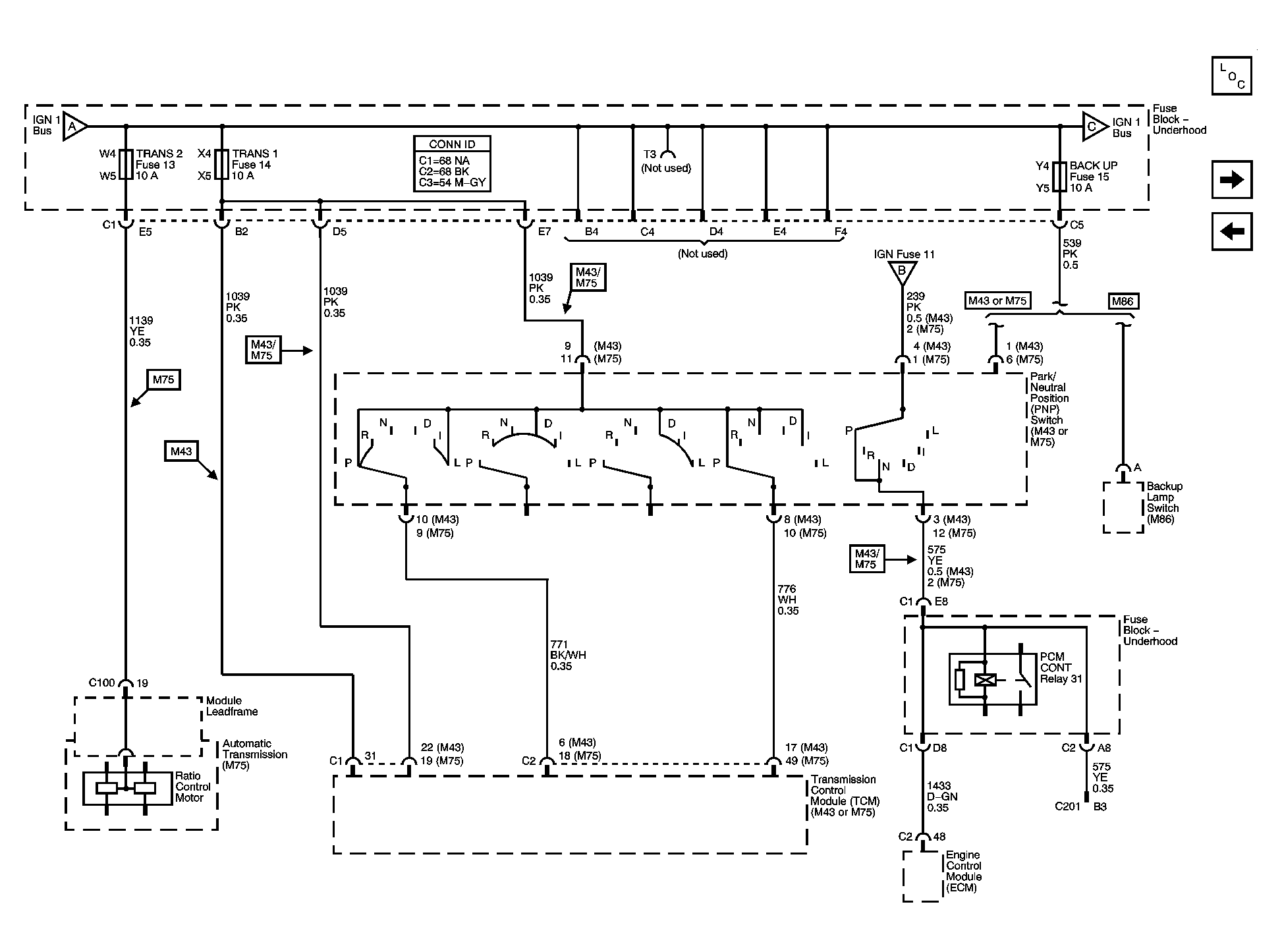

Fig 6: Fuse Block-Underhood Fuses: BACK UP, TRANS1, and TRANS2

Courtesy of GENERAL MOTORS CORP.

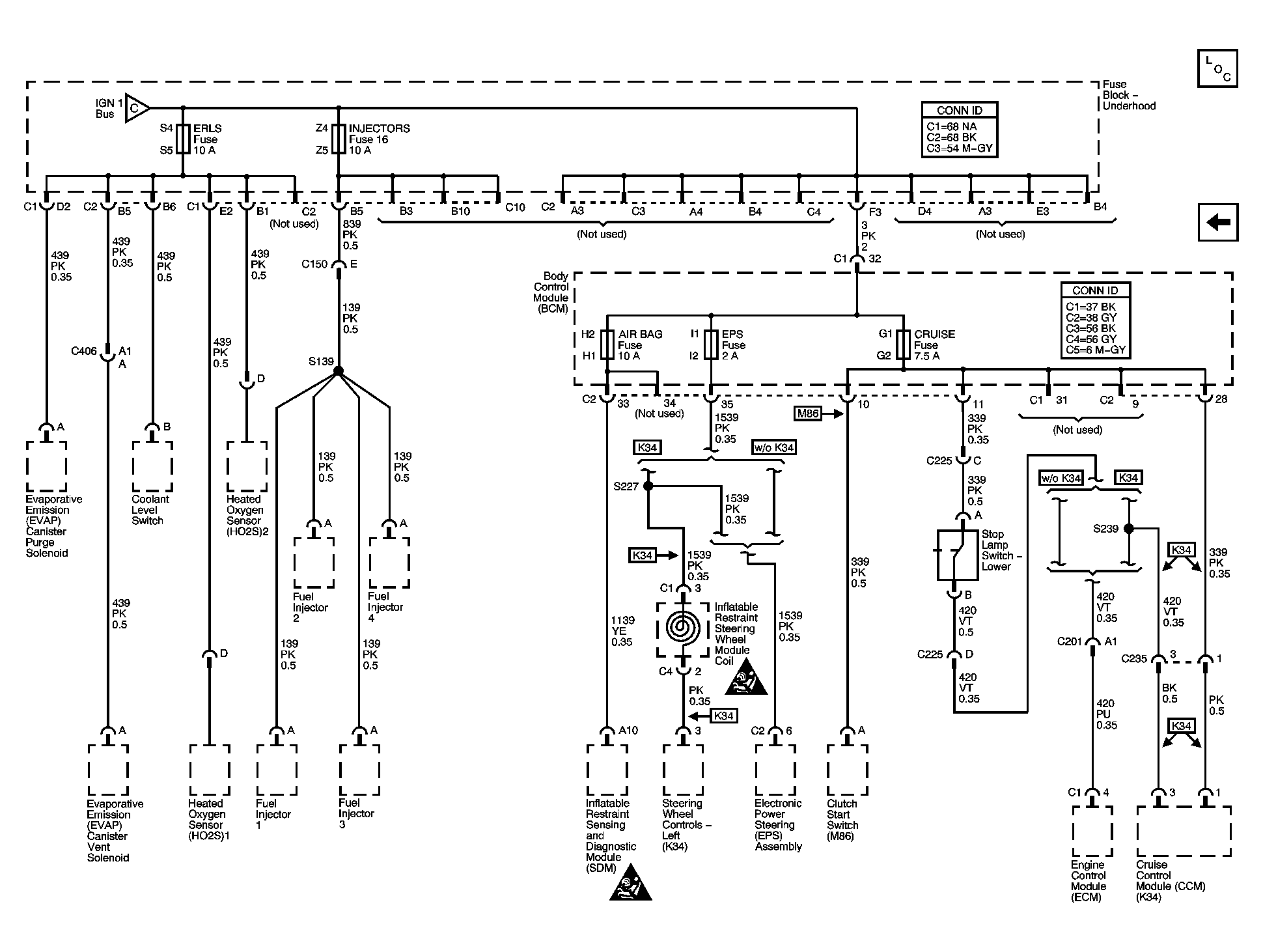

Fig 7: Fuse Block-Underhood Fuses: ERLS and INJECTORS, BCM Fuses: AIR BAG, CRUISE, and EPS

Courtesy of GENERAL MOTORS CORP.
