Instrument Cluster Schematics

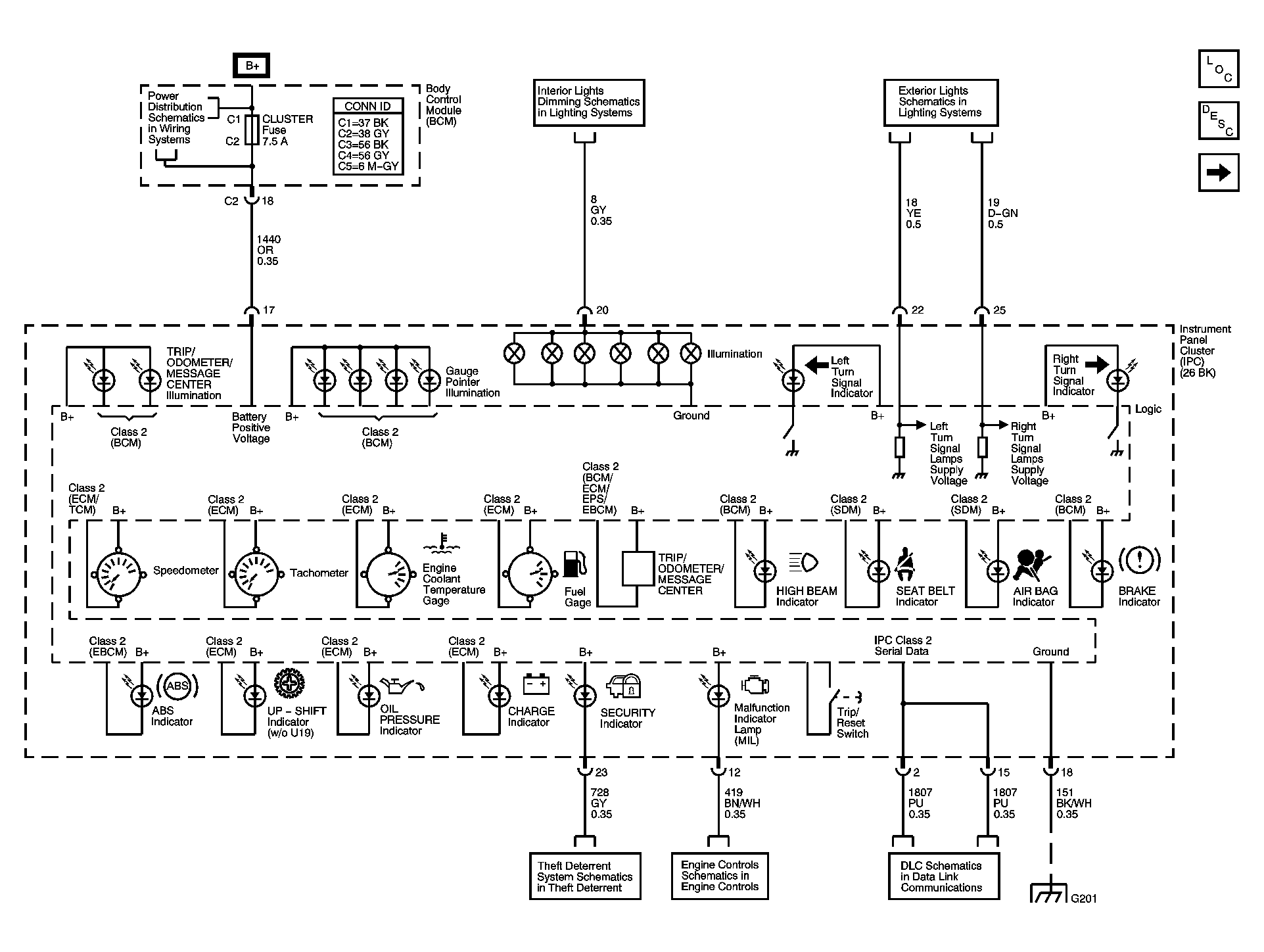

Fig 1: DLC, Gages, Ground, Indicators, and Power Schematic

GM875832

Courtesy of GENERAL MOTORS CORP.

Fig 2: Fuel Level and Oil Pressure Schematic

GM881523

Courtesy of GENERAL MOTORS CORP.
