ABS Schematics

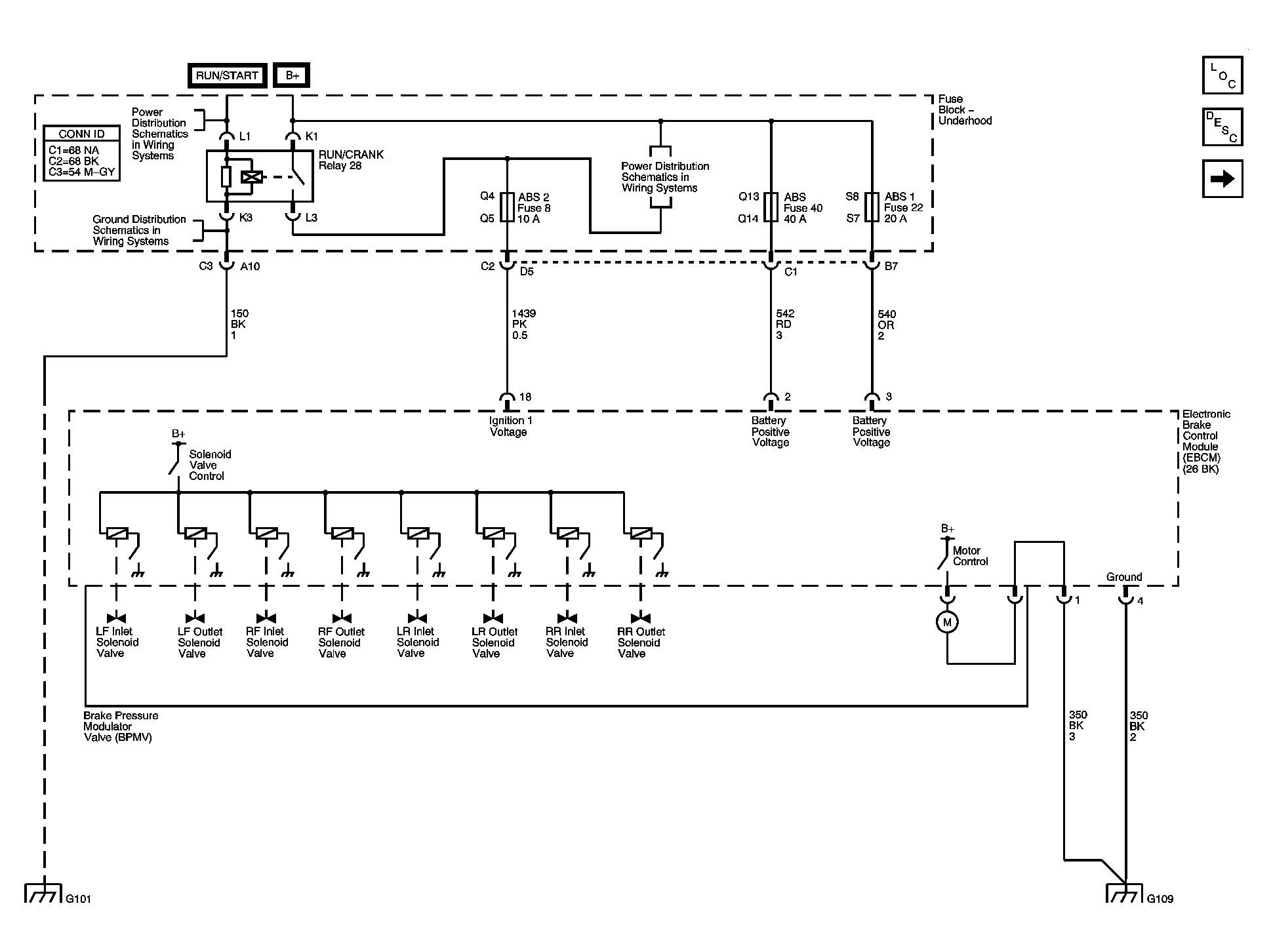

Fig 1: Power, Ground, and BPMV Controls Schematics
GM876893Courtesy of GENERAL MOTORS CORP.

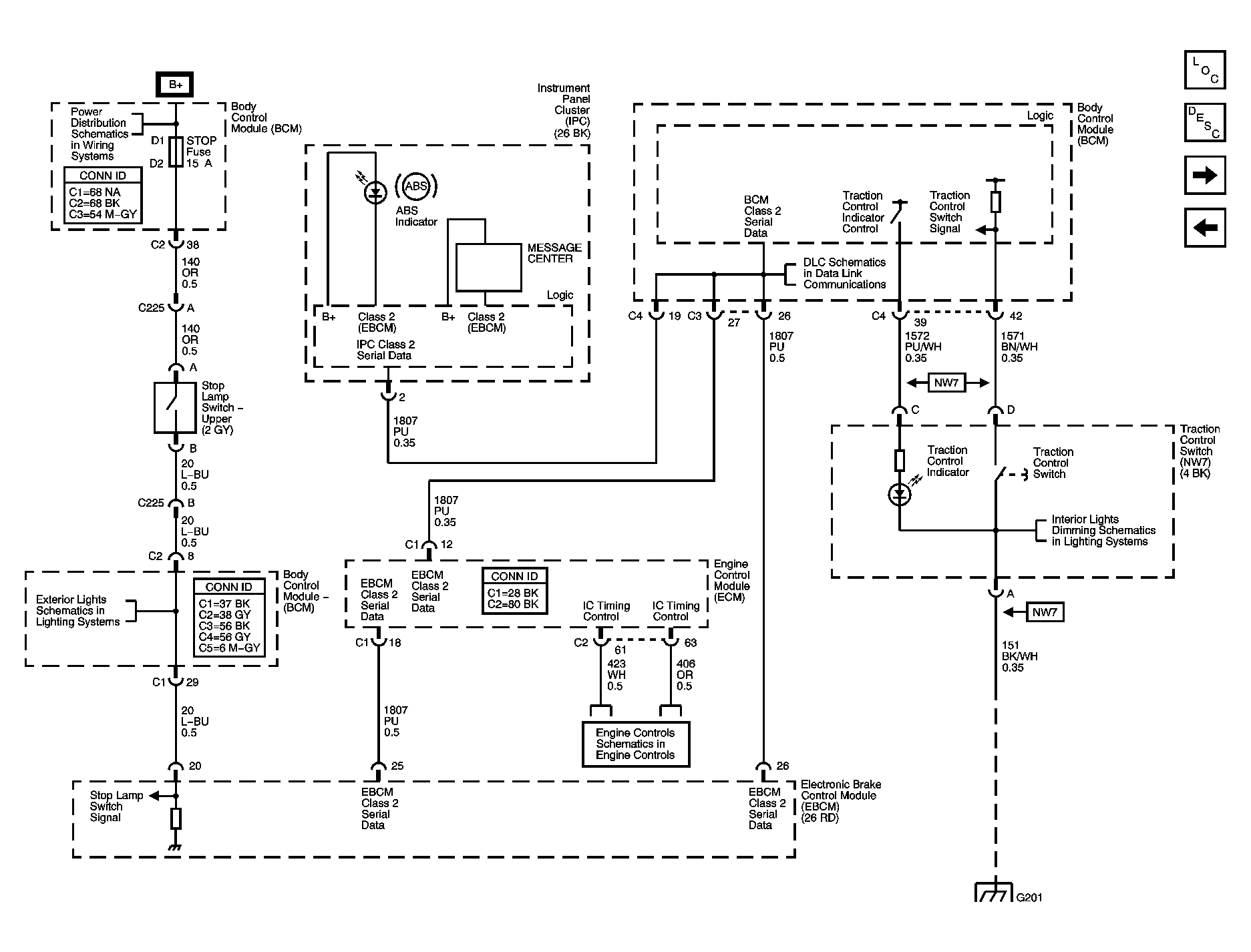

Fig 2: Traction Control, DLC, and Indicators Schematics
GM876894Courtesy of GENERAL MOTORS CORP.

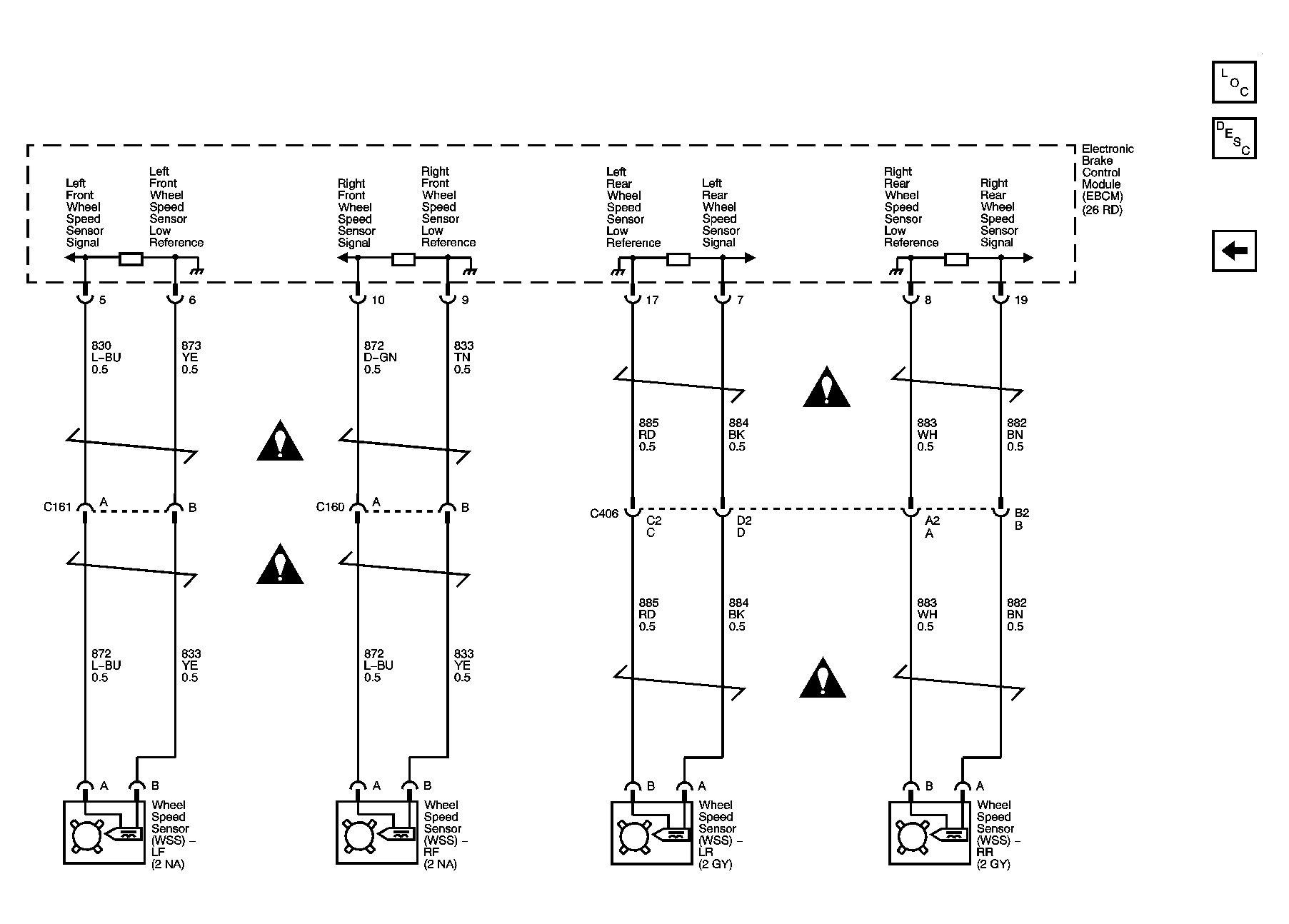

Fig 3: Wheel Speed Sensors Schematics
GM876897Courtesy of GENERAL MOTORS CORP.
