Stoplight Switch
NOTE:
Improper stoplight switch adjustment may cause brake drag, heat buildup and excessive brake lining wear.
- Remove accelerator pedal retaining nuts. Move pedal aside.

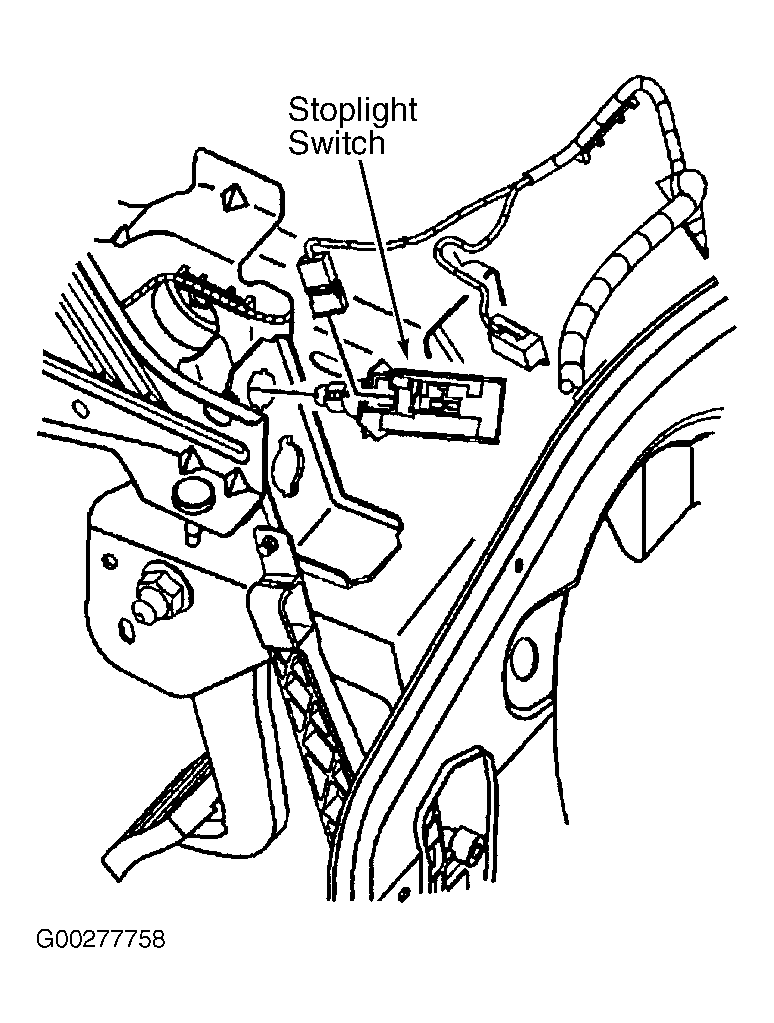

- With the brake pedal fully released, insert the stoplight switch into the brake pedal bracket until the switch plunge is fully depressed into the barrel.
- Twist switch clockwise until the travel stop has been reached.
- The plunger should extend out of the barrel of the switch about 0.04" (1.0 mm).
- Install accelerator pedal to the dash panel. Install and tighten retaining nuts.
- Inspect stoplights for proper operation.
