Headlights/Daytime Running Lights (DRL) Schematics

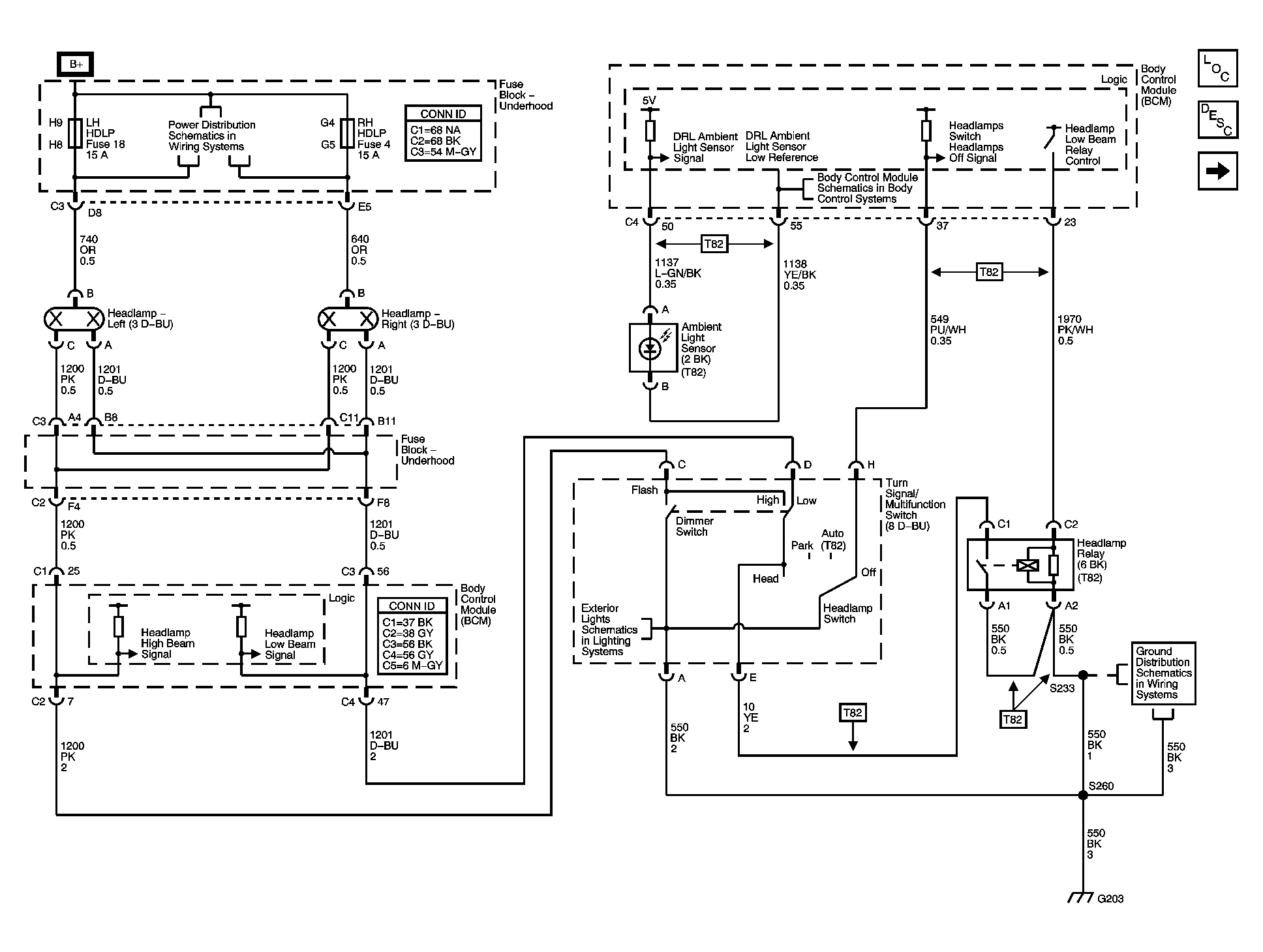

Fig 1: Headlights Schematic - Coupe

Courtesy of GENERAL MOTORS CORP.

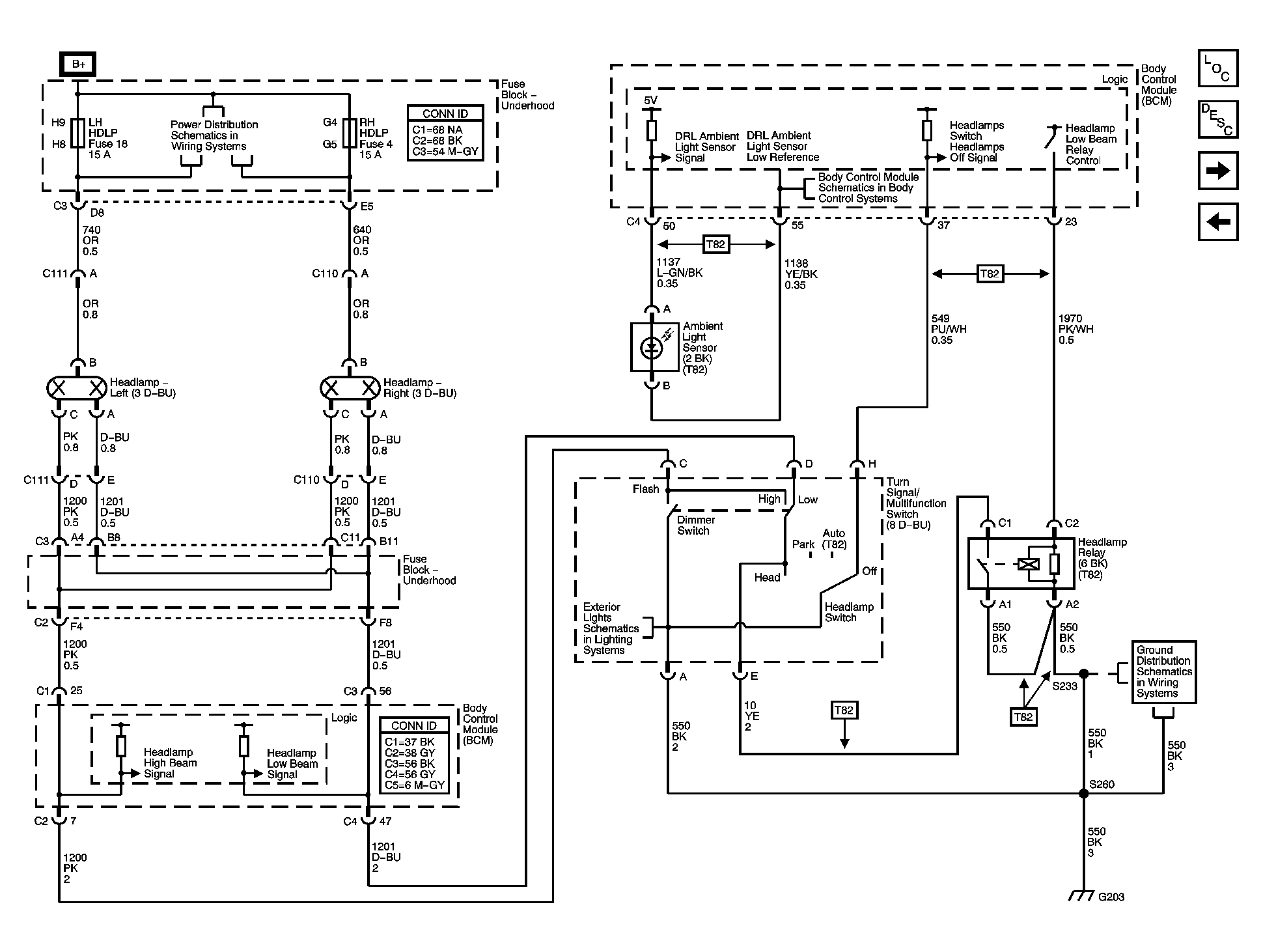

Fig 2: Headlights Schematic - Sedan

Courtesy of GENERAL MOTORS CORP.

Fig 3: Daytime Running Lights Schematic

Courtesy of GENERAL MOTORS CORP.
