Exterior Lights Schematics

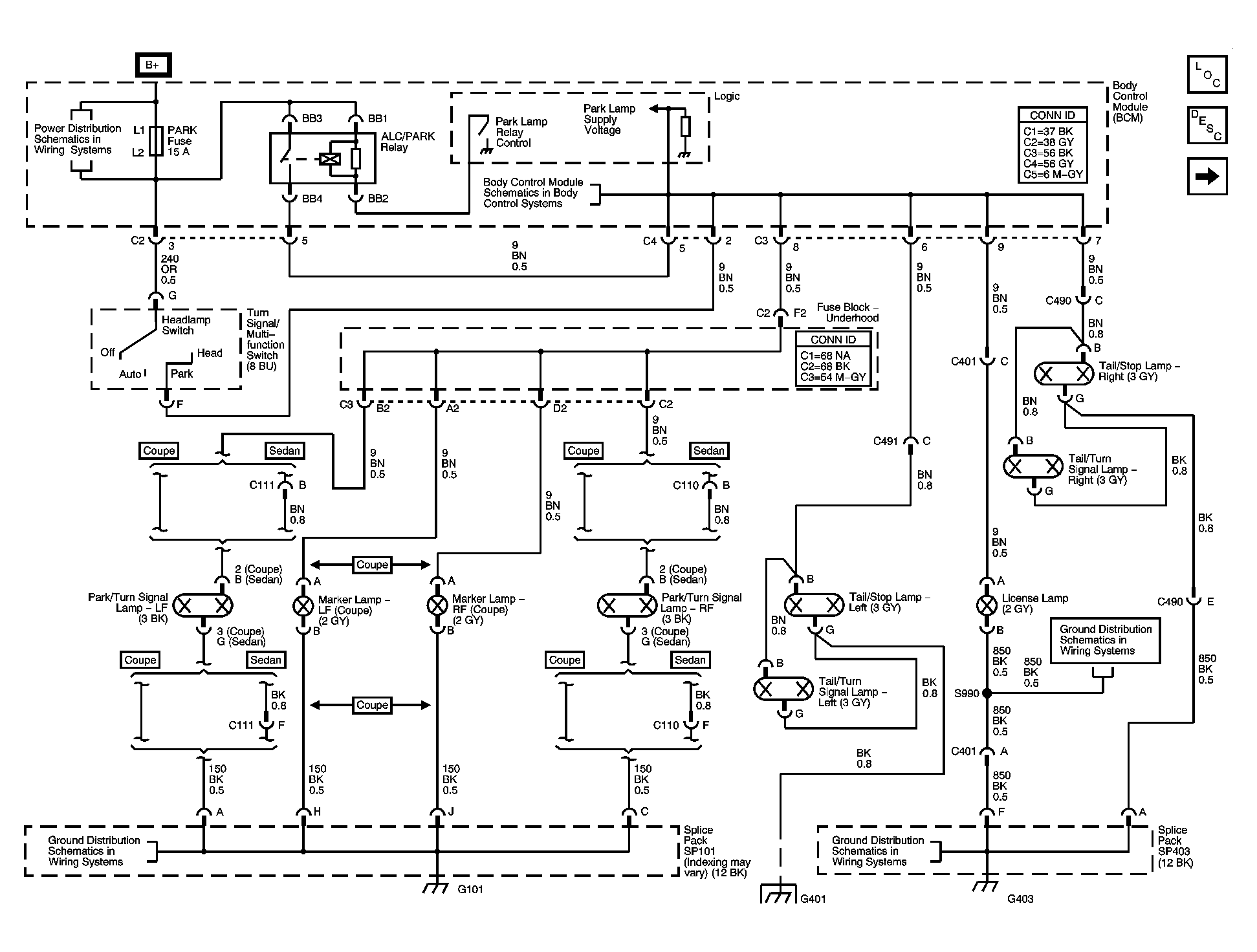

Fig 1: Park Lamps Schematic
GM884647Courtesy of GENERAL MOTORS CORP.

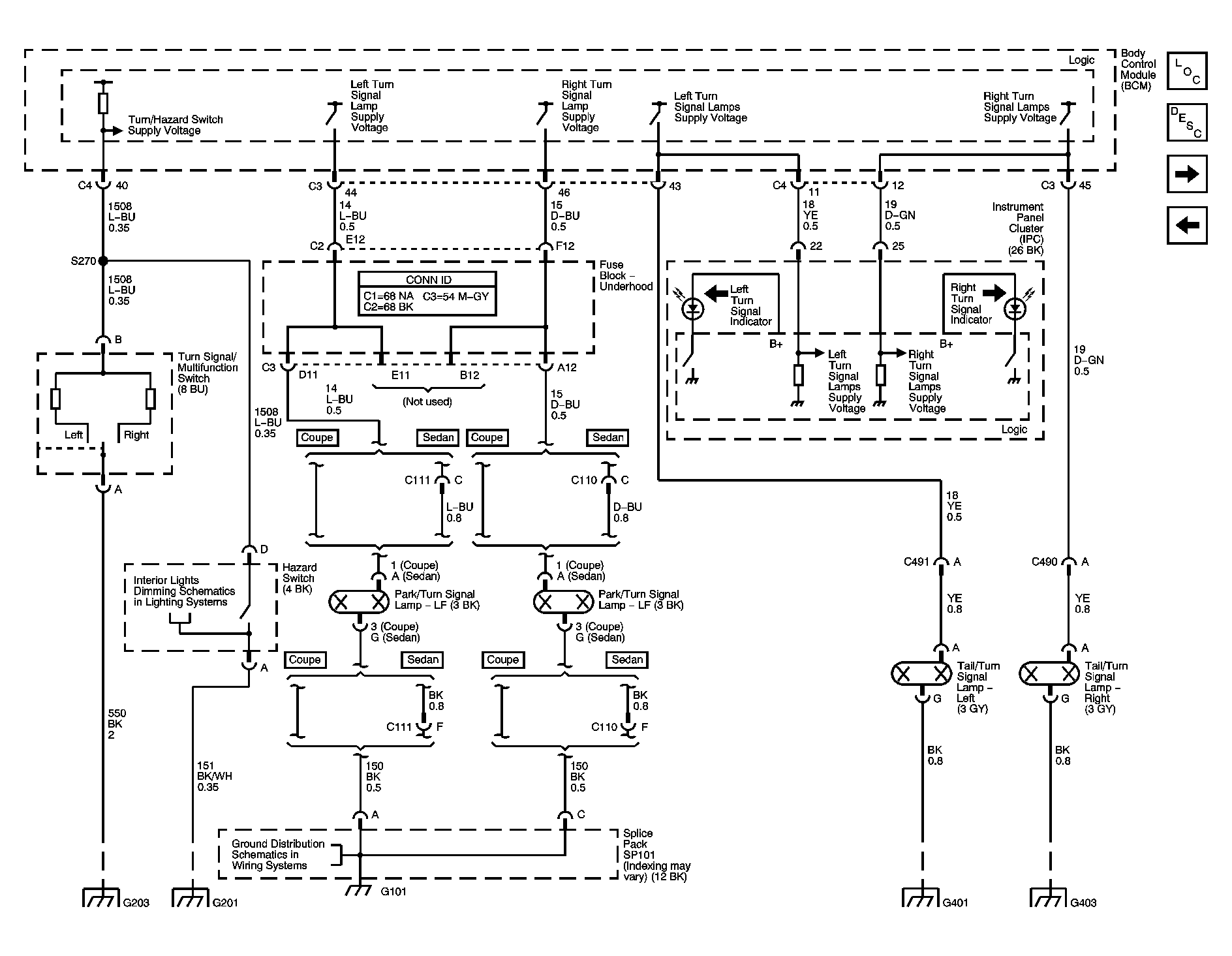

Fig 2: Turn/Hazard Lamps Schematic
GM884648Courtesy of GENERAL MOTORS CORP.

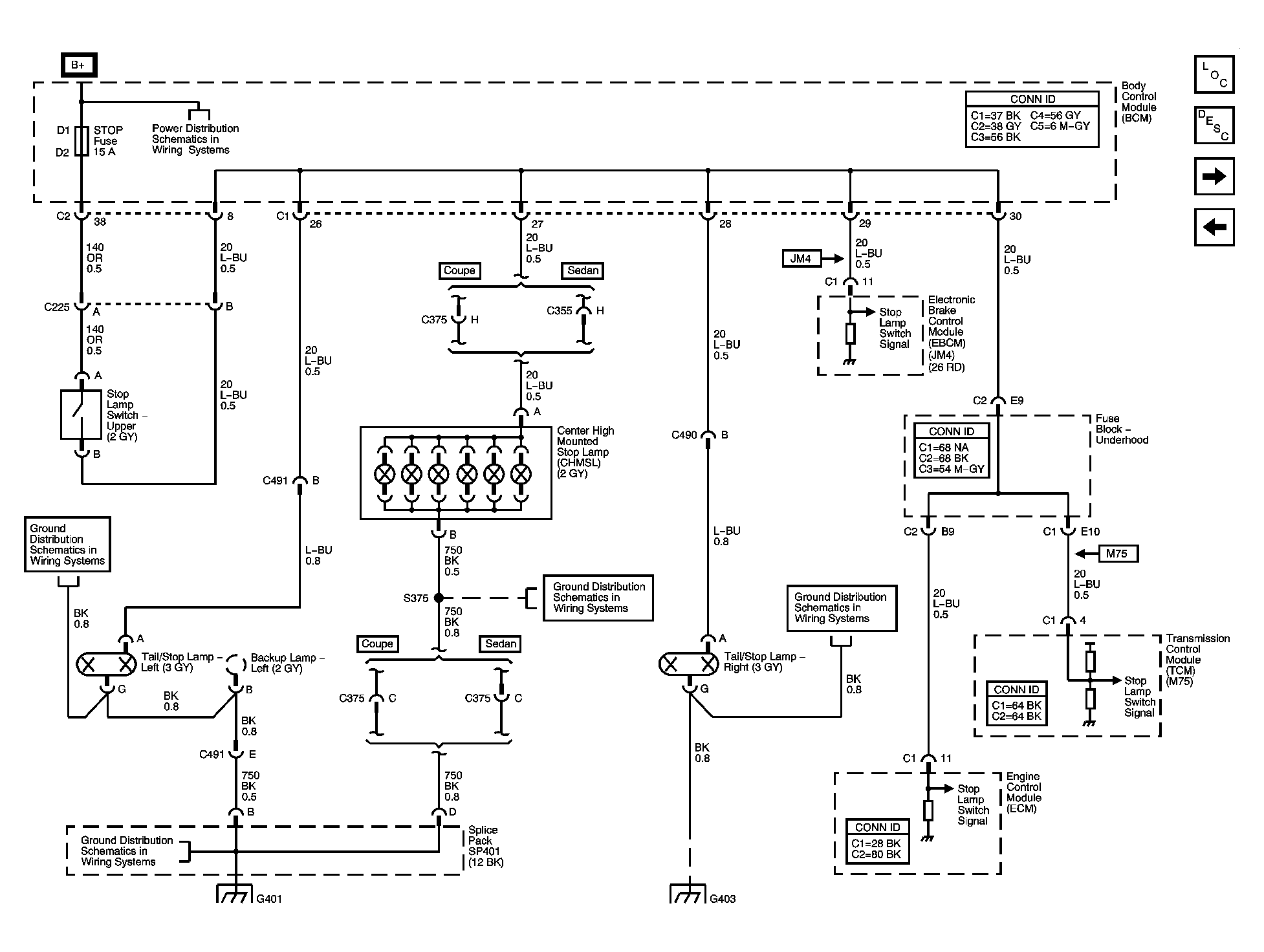

Fig 3: Stop Lamps Schematic
GM884649Courtesy of GENERAL MOTORS CORP.

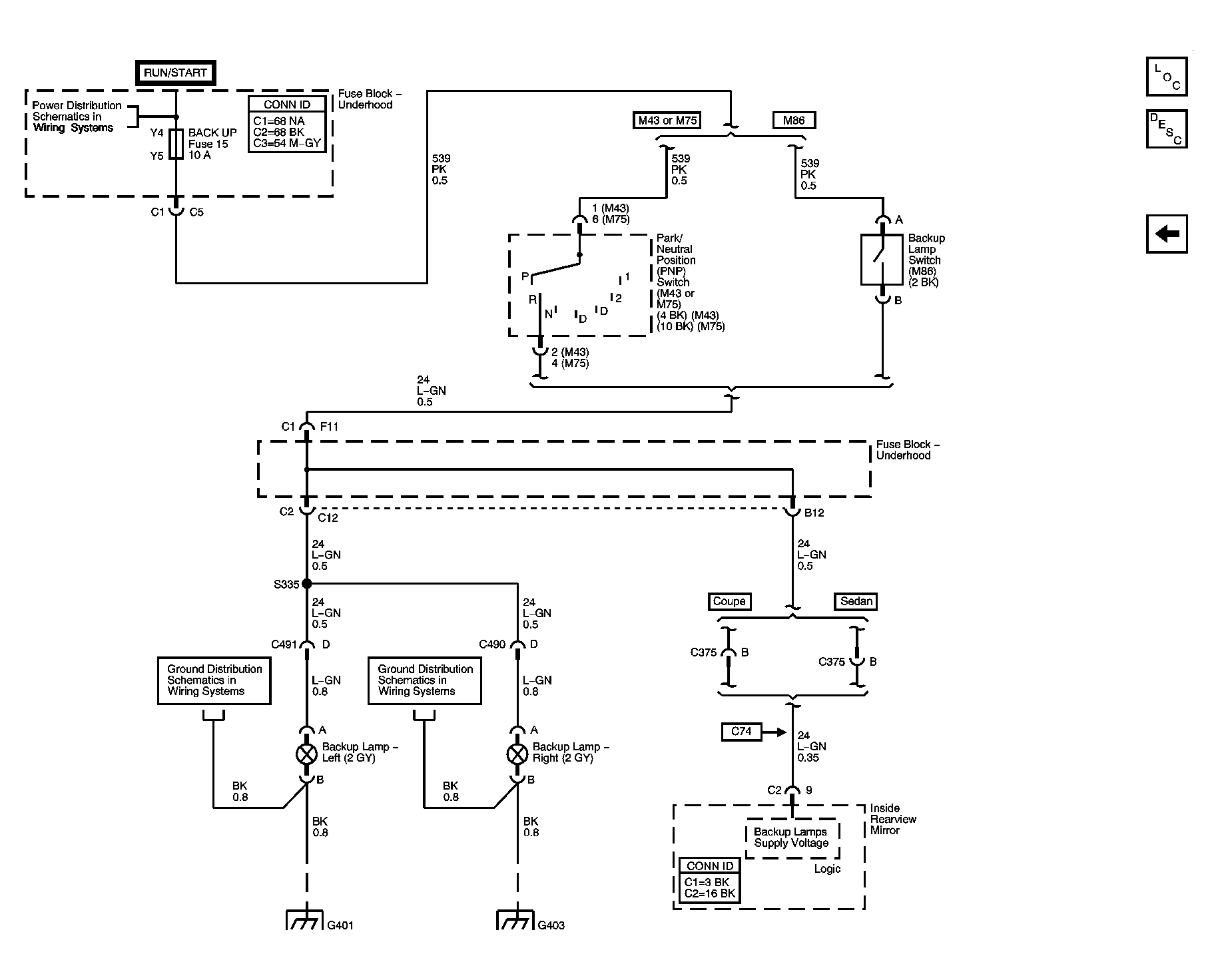

Fig 4: Backup Lamps Schematic
GM884110Courtesy of GENERAL MOTORS CORP.
