Lighting Systems Connector End Views

Ambient Light Sensor (T82) Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A L-GN/BK 1137 DRL Ambient Light Sensor Signal
B YE/BK 1138 DRL Ambient Light Sensor Low Reference

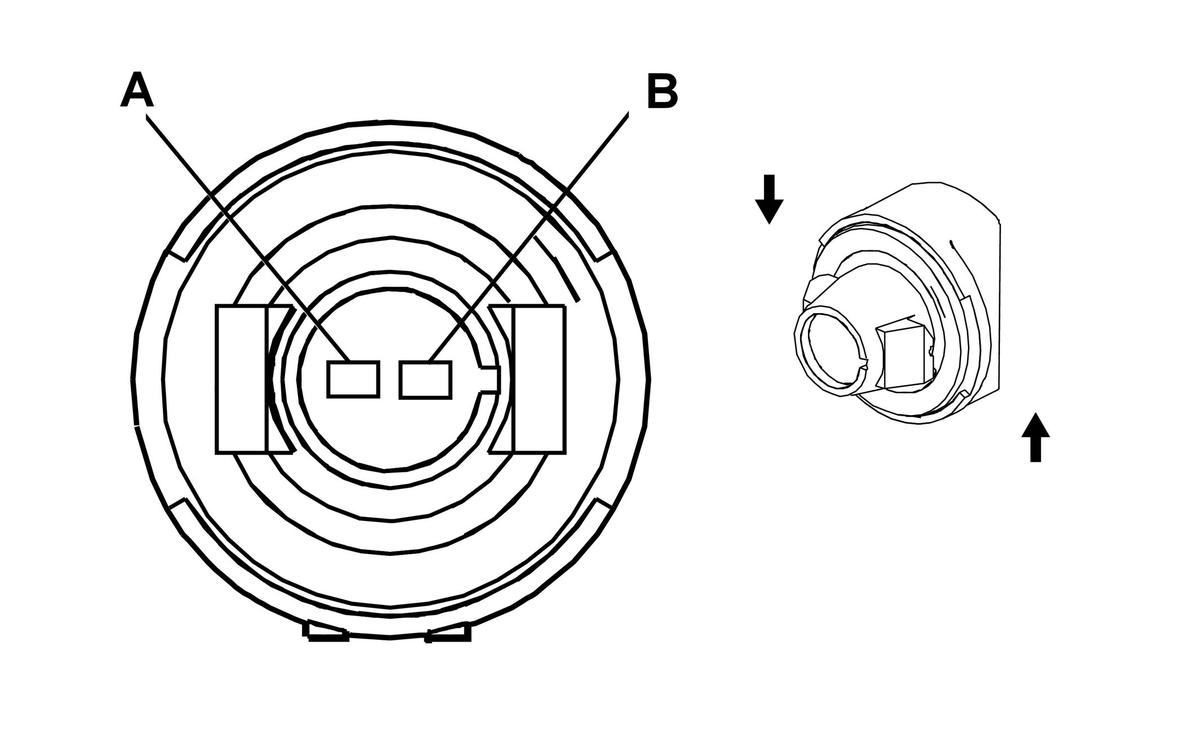

Backup Lamp-Left Connector End View

GM877923Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 16530675
  • 2 Way (GY)
Pin Wire Color Circuit No. Function
A L-GN - Backup Lamp Supply Voltage
B BK - Ground
BK - Ground
Backup Lamp-Right Connector End View

GM877923Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 16530675
  • 2 Way (GY)
Pin Wire Color Circuit No. Function
A L-GN - Backup Lamp Supply Voltage
B BK - Ground
BK - Ground
Backup Lamp Switch (M86) Connector End View

GM635009Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052641
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PK 539 Ignition 1 Voltage
B L-GN 24 Backup Lamp Supply Voltage
Center High Mounted Stop Lamp (CHMSL) Connector End View

GM877909Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092158
  • 2 Way F (GY)
Pin Wire Color Circuit No. Function
A L-BU 20 Stop Lamp Supply Voltage
B BK 750 Ground
Dome Lamp Connector End View

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A WH 156 Courtesy Lamp Low Control
B BK 750 Ground
C OR 1732 Courtesy Lamps Supply Voltage
Courtesy/Reading Lamp Connector End View

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A WH 156 Courtesy Lamp Low Control
B BK 750 Ground
C OR 1732 Courtesy Lamps Supply Voltage
Door Jamb Switch - Driver Connector End View

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A L-GN/BK 394 Driver Door Jamb Switch Signal
B BK/WH 151 Ground
C - - Not Used
Door Jamb Switch - Front Passenger Connector End View

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A L-BU 395 Passenger Door Jamb Switch Signal
B BK/WH 151 Ground
C - - Not Used
Door Jamb Switch - LR (Sedan) Connector End View

GM295483Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304635
  • 2-Way F Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function
A L-BU 395 Passenger Door Jamb Switch Signal
B BK/WH 151 Ground
Door Jamb Switch - RR (Sedan) Connector End View

GM295483Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304635
  • 2-Way F Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function
A L-BU 395 Passenger Door Jamb Switch Signal
B BK/WH 151 Ground

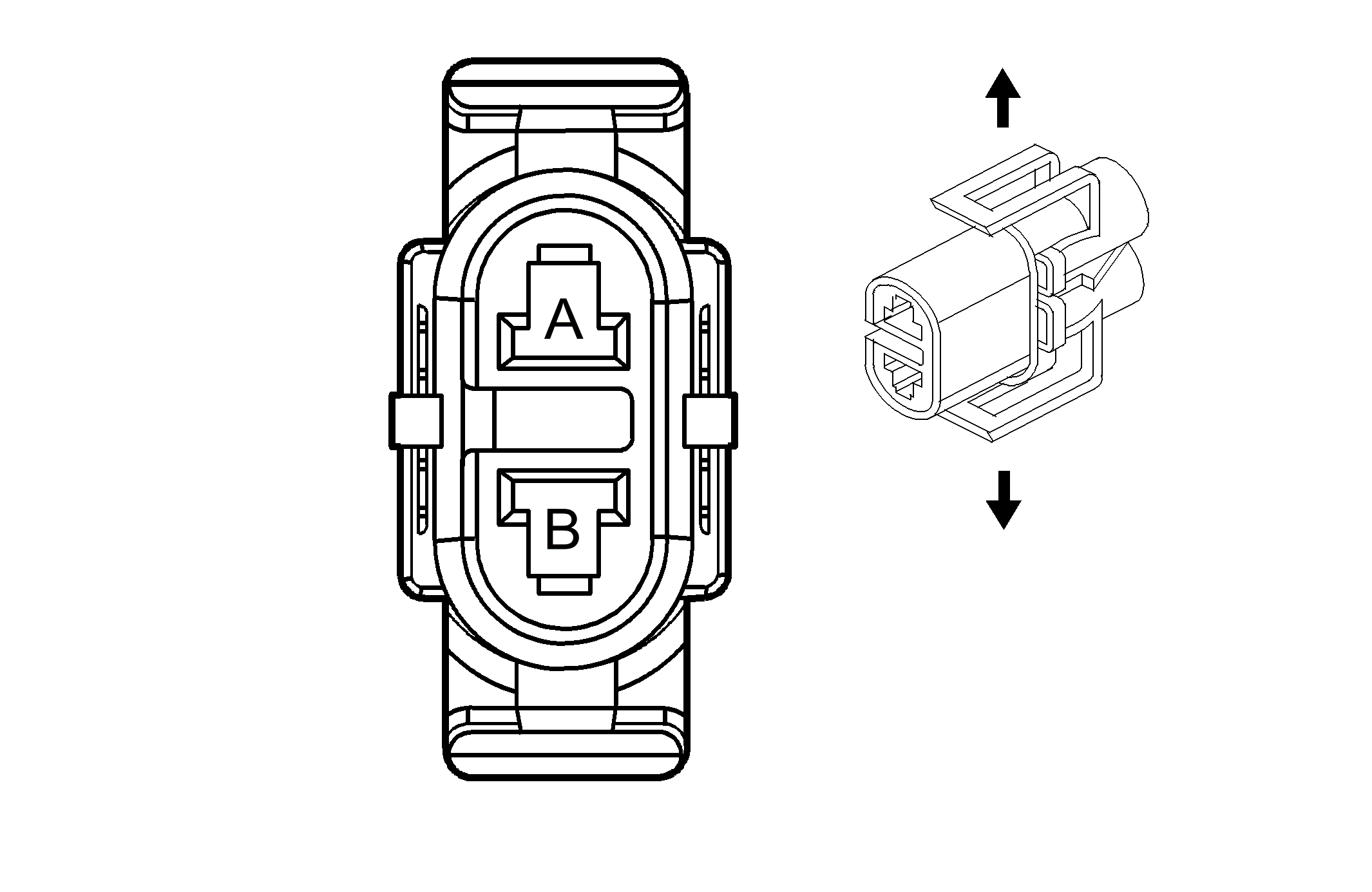

Fog Lamp-LF (T37) Connector End View

GM808661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124819
  • 2 Way F (BK)
Pin Wire Color Circuit No. Function
A PU 34 Fog Lamps Supply Voltage
B BK 150 Ground
Fog Lamp-RF (T37) Connector End View

GM808661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124819
  • 2 Way F (BK)
Pin Wire Color Circuit No. Function
A PU 34 Fog Lamps Supply Voltage
B BK 150 Ground
Fog Lamp Switch (T37) Connector End View

GM39665Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12089248
  • 4-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BK/WH 151 Ground
B GY 8 Instrument Panel Lamp Supply Voltage
C YE 317 Fog Lamp Relay Coil Supply Voltage
D OR 192 Front Fog Lamp Switch Signal/Fog Lamps Enable
Hazard Switch Connector End View

GM39660Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047785
  • 4 Way F Metri-Pack 150 Series (WH)
Pin Wire Color Circuit No. Function
A BK/WH 151 Ground
B GY 8 Instrument Panel Lamp Supply Voltage
C - - Not Used
D L-BU 1508 Turn/Hazard Module Supply Voltage
Headlamp - Left (Coupe) Connector End View

GM808663Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12048369
  • 3 Way F Metri-Pack 280 Series Sealed (BU)
Pin Wire Color Circuit No. Function
A D-BU 1201 Headlamp Low Beam Signal
B OR 740 Battery Positive Voltage
C PK 1200 Headlamp High Beam Signal
Headlamp - Left (Sedan) Connector End View

GM808663Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12048369
  • 3 Way F Metri-Pack 280 Series Sealed (BU)
Pin Wire Color Circuit No. Function
A D-BU - Headlamp Low Beam Signal
B OR - Battery Positive Voltage
C PK - Headlamp High Beam Signal
Headlamp - Right (Coupe) Connector End View

GM808663Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12048369
  • 3 Way F Metri-Pack 280 Series Sealed (BU)
Pin Wire Color Circuit No. Function
A D-BU 1201 Headlamp Low Beam Signal
B OR 640 Battery Positive Voltage
C PK 1200 Headlamp High Beam Signal
Headlamp - Right (Sedan) Connector End View

GM808663Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12048369
  • 3 Way F Metri-Pack 280 Series Sealed (BU)
Pin Wire Color Circuit No. Function
A D-BU - Headlamp Low Beam Signal
B OR - Battery Positive Voltage
C PK - Headlamp High Beam Signal

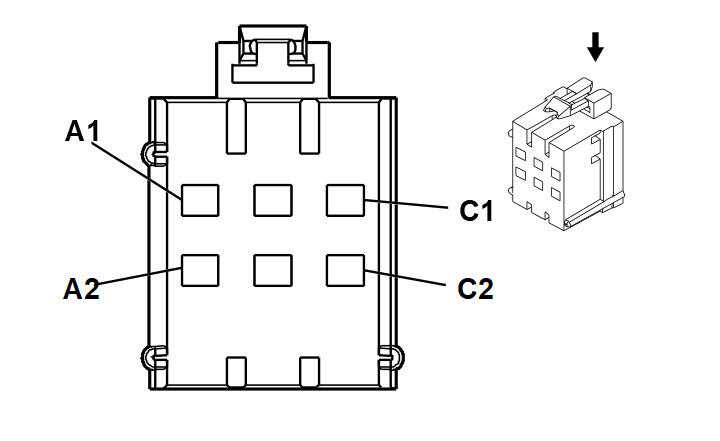

Headlamp Relay (T82) Connector End View

GM281201Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110541
  • 6 Way F Metri-Pack 280 Series Flexlock (BK)
Pin Wire Color Circuit No. Function
A1 BK 550 Ground
A2 BK 550 Ground
BK 550 Ground
B1-B2 - - Not Used
C1 YE 10 Headlamp Switch Signal
C2 PK/WH 1970 Headlamp Low Beam Relay Control
I/P Dimmer Switch Connector End View

GM808685Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020299
  • 5-Way F P/C Edgeboard - Standard (NA)
Pin Wire Color Circuit No. Function
A - - Not Used
B BN/WH 230 Instrument Panel Lamps Dimming Control
C VT 719 Low Reference
D-E - - Not Used

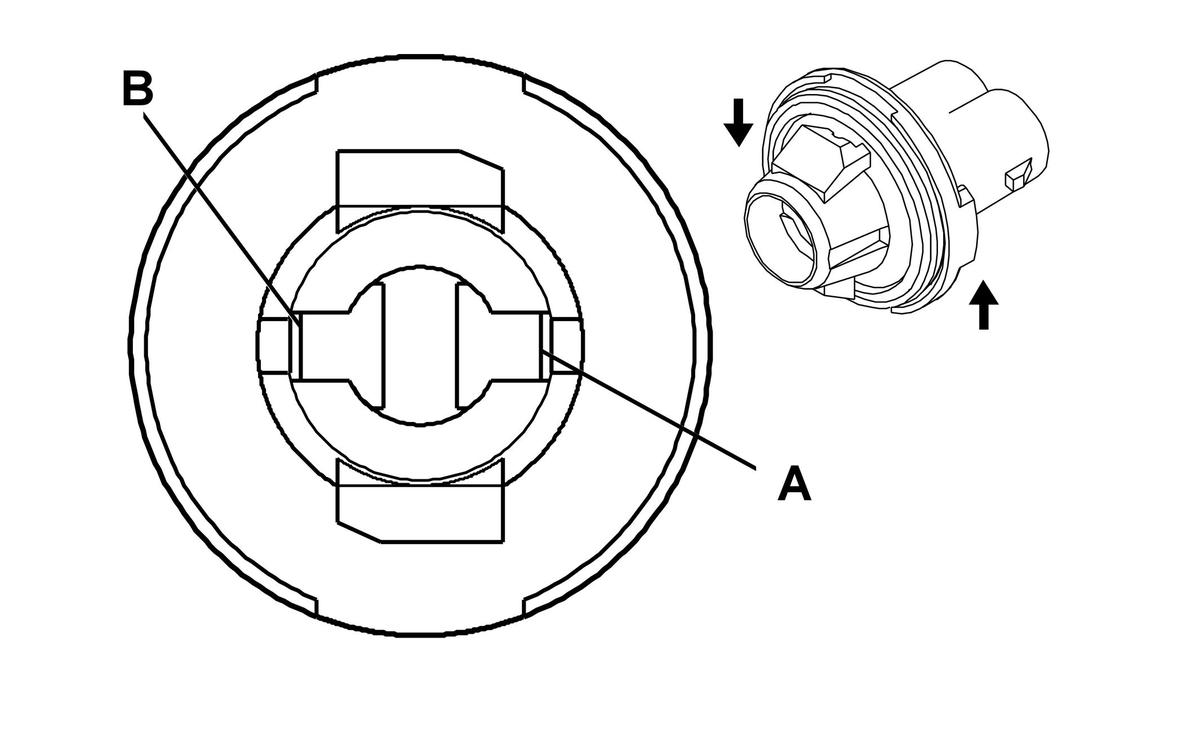

License Lamp Connector End View

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • 2 Way F Lamp Socket Wedge Base W2 (GY)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
B BK 850 Ground
Marker Lamp-LF (Coupe) Connector End View

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • 2 Way F Lamp Socket Wedge Base W2 (GY)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
B BK 150 Ground
Marker Lamp-RF (Sedan) Connector End View

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • 2 Way F Lamp Socket Wedge Base W2 (GY)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
B BK 150 Ground
Park/Turn Signal Lamp-LF (Coupe) Connector End View

GM898467Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7900-1493-000
  • 3 Way F (BK)
Pin Wire Color Circuit No. Function
1 D-BU 15 Right Turn Signal Lamps Supply Voltage
2 BN 9 Park Lamp Supply Voltage
3 BK 150 Ground
Park/Turn Signal Lamp-RF (Coupe) Connector End View

GM898467Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7900-1493-000
  • 3 Way F (BK)
Pin Wire Color Circuit No. Function
1 D-BU 15 Right Turn Signal Lamps Supply Voltage
2 BN 9 Park Lamp Supply Voltage
3 BK 150 Ground
Park/Turn Signal Lamp-LF (Sedan) Connector End View

GM877925Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 16530670
  • 3 Way F (BK)
Pin Wire Color Circuit No. Function
A L-BU 14 Left Turn Signal Lamps Supply Voltage
B BN 9 Park Lamp Supply Voltage
G BK 150 Ground
Park/Turn Signal Lamp-RF (Sedan) Connector End View

GM877925Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 16530670
  • 3 Way F (BK)
Pin Wire Color Circuit No. Function
A D-BU 15 Right Turn Signal Lamps Supply Voltage
B BN 9 Park Lamp Supply Voltage
G BK 150 Ground
Rear Compartment Courtesy Lamp Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2 Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OR/BK 737 Rear Compartment Lamp Control
B OR 1732 Courtesy Lamps Supply Voltage
Stop Lamp Switch-Lower Connector End View

GM287957Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12041433
  • 2 Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A PK 339 Ignition 1 Voltage
B VT 420 Stop Lamp Switch Signal
Stop Lamp Switch-Upper Connector End View

GM73251Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12033701
  • 2 Way F Metri-Pack 480 Series (GY)
Pin Wire Color Circuit No. Function
A OR 140 Battery Positive Voltage
B L-BU 20 Stop Lamp Switch Signal
Tail/Stop Lamp-Left Connector End View

GM877925Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 16530671
  • 3 Way F (GY)
Pin Wire Color Circuit No. Function
A L-BU - Stop Lamp Supply Voltage
B BN - Park Lamp Supply Voltage
BN - Park Lamp Supply Voltage
G BK - Ground
BK - Ground
Tail/Turn Signal Lamp-Left Connector End View

GM877925Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 16530671
  • 3 Way F (GY)
Pin Wire Color Circuit No. Function
A YE - Left Rear Stop/Turn Lamp Supply Voltage
B BN - Park Lamp Supply Voltage
G BK - Ground
Tail/Stop Lamp-Right Connector End View

GM877925Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 16530671
  • 3 Way F (GY)
Pin Wire Color Circuit No. Function
A L-BU - Stop Lamp Supply Voltage
B BN - Park Lamp Supply Voltage
BN - Park Lamp Supply Voltage
G BK - Ground
BK - Ground
Tail/Turn Signal Lamp-Right Connector End View

GM877925Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 16530671
  • 3 Way F (GY)
Pin Wire Color Circuit No. Function
A YE - Right Rear Stop/Turn Lamp Supply Voltage
B BN - Park Lamp Supply Voltage
G BK - Ground
Turn Signal/Multifunction Switch Connector End View

GM73235Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047976
  • 8 Way F Metri-Pack 280 Series (BU)
Pin Wire Color Circuit No. Function
A BK 550 Ground
B L-BU 1508 Turn/Hazard Module Supply Voltage
C PK 1200 Headlamp High Beam Signal
D D-BU 1201 Headlamp Low Beam Signal
E YE 10 Headlamp Lamp High/Low Beam Ground (T82)
F BN 9 Park Lamp Supply Voltage
G OR 240 Battery Positive Voltage
H VT/WH 549 Headlamp Switch Headlamps Off Signal (T82)
