Radio/Audio System Schematics (Early Production)

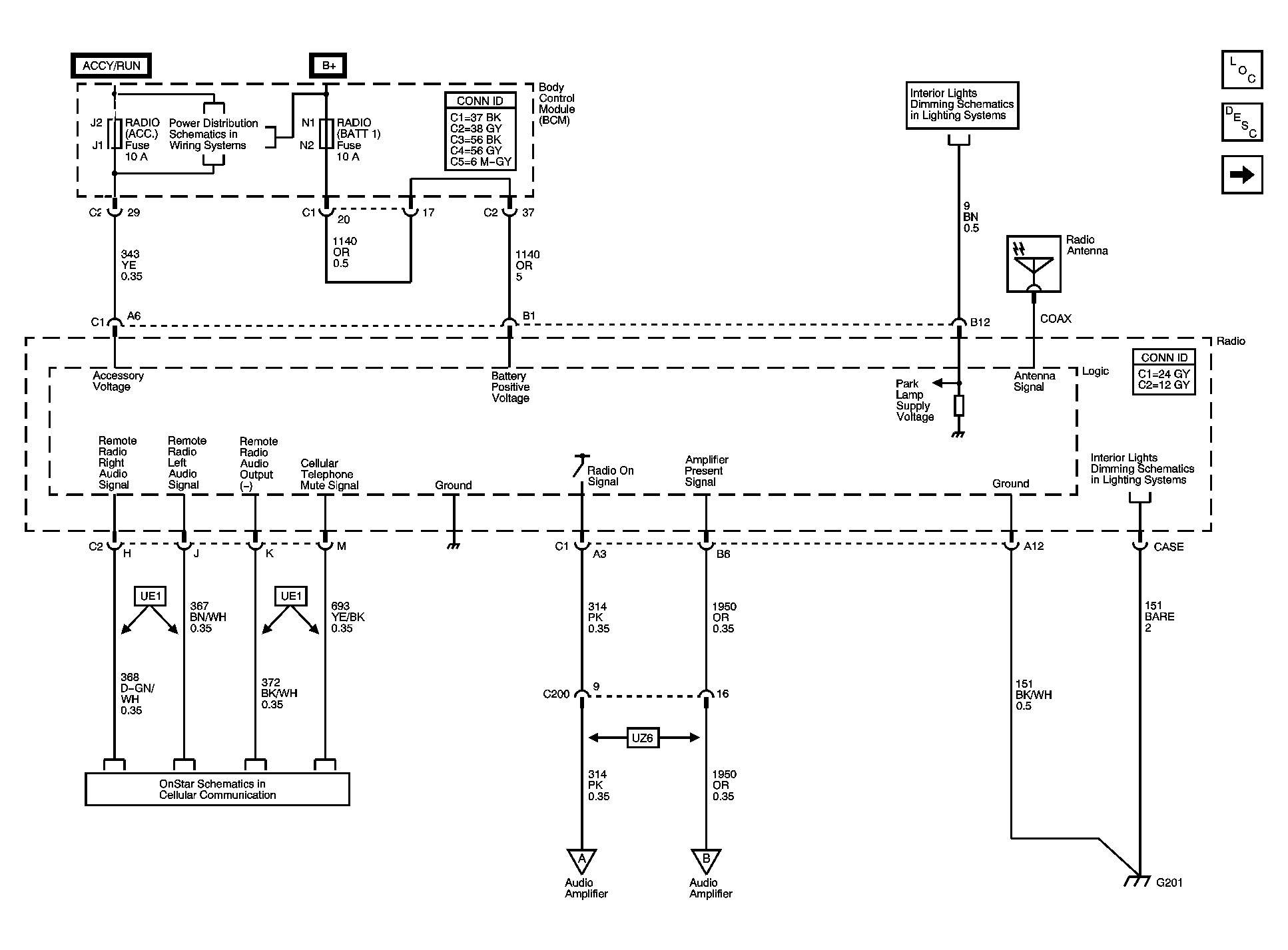

Fig 1: Ground, Power, Signals, and References to Cellular Communication and Lighting Schematic

Courtesy of GENERAL MOTORS CORP.

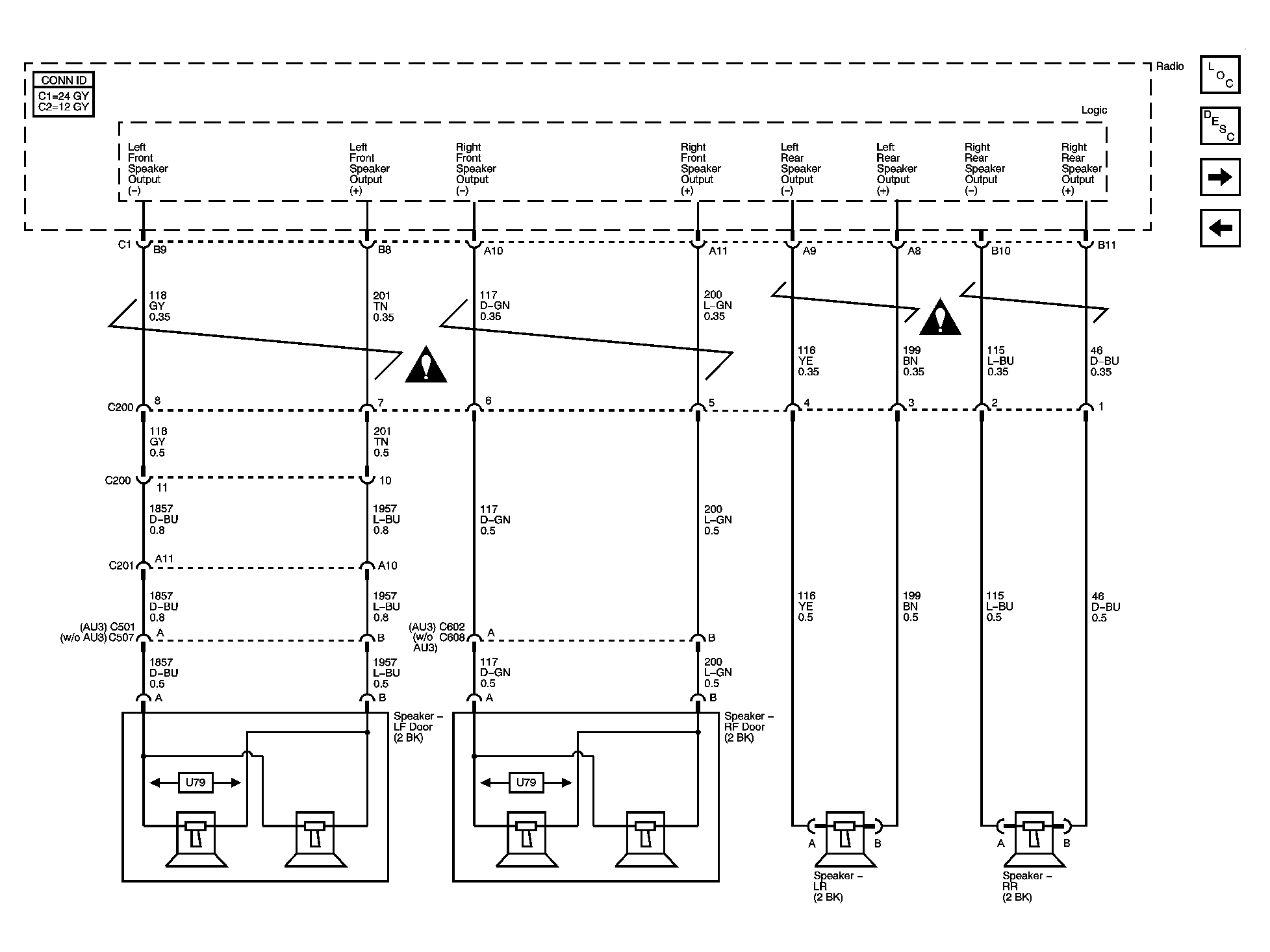

Fig 2: Speakers - U79 OR UX7 Schematic

Courtesy of GENERAL MOTORS CORP.

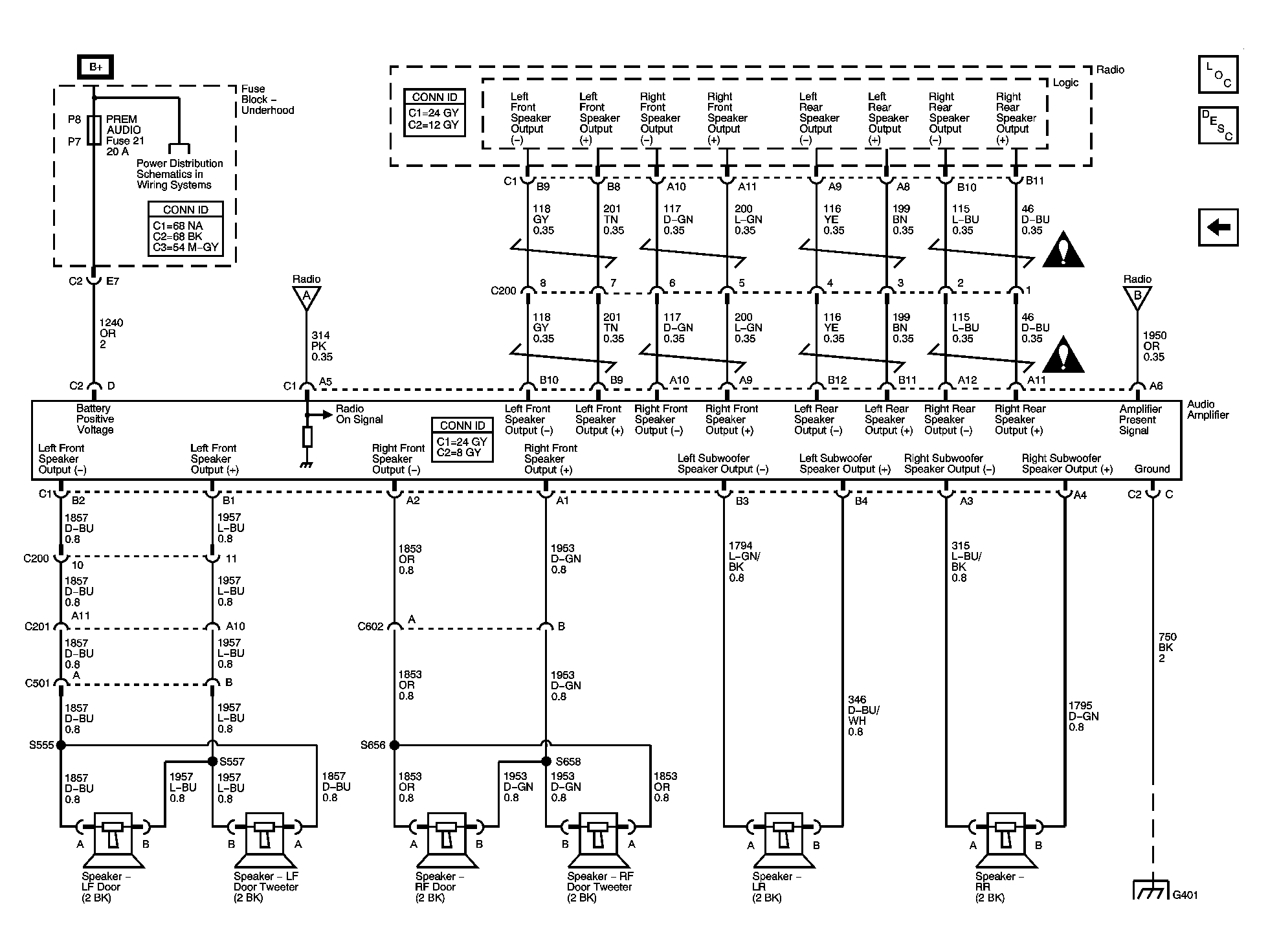

Fig 3: Radio to Amplifier to Speakers - UZ6 Schematic

Courtesy of GENERAL MOTORS CORP.
