Transmission Control Module Harness 64-Way Connector End View C2 (2 Of 2)

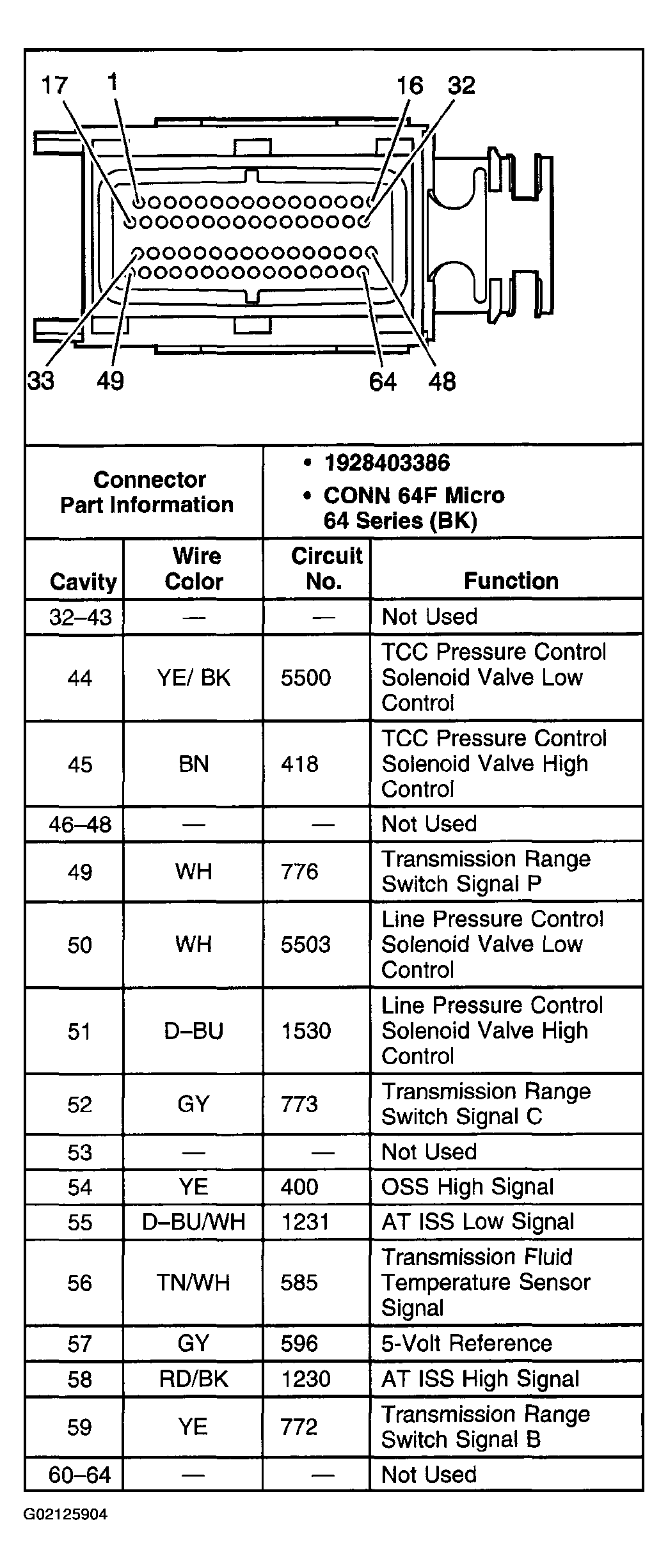

Fig 1: Transmission Control Module Harness 64-Way C2 (2 Of 2)

G02125904

Courtesy of GENERAL MOTORS CORP.
