Brake Stop Lamp Switch Harness 2-Way Connector End View

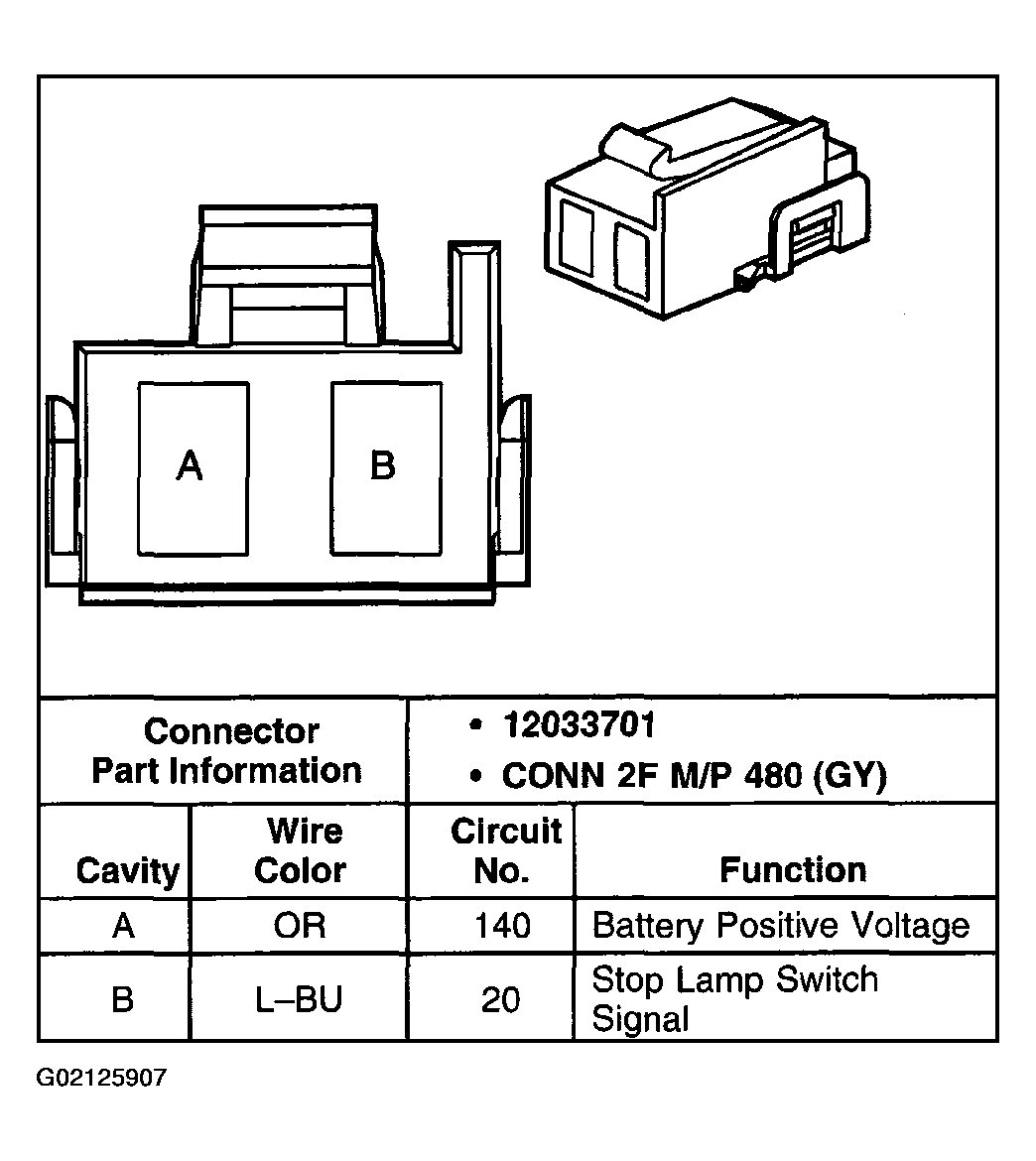

Fig 1: Brake Stop Lamp Switch Harness 2-Way

G02125907

Courtesy of GENERAL MOTORS CORP.
