Installation Procedure

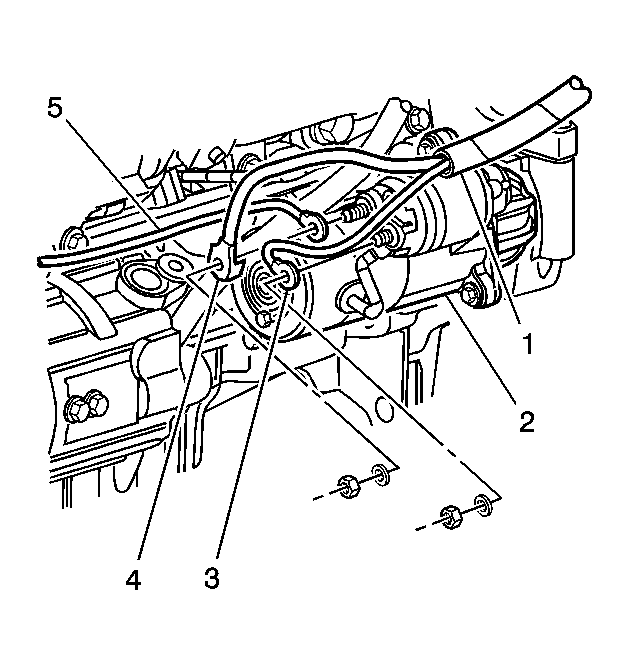

    Fig 1: Identifying Starter Electrical Connectors
    GM758469Courtesy of GENERAL MOTORS CORP.
  1. Place the battery cable in the vehicle using the original routing.
    2. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Connect the positive battery cable (4) to the starter.

    Tighten:  Tighten the starter terminal nut to 17 N.m (13 lb ft).

  3. Tape the positive battery cable to the negative battery cable near the transmission.
  4. Lower the vehicle.
    5. Fig 2: View Of Engine Electrical Center
    GM873343Courtesy of GENERAL MOTORS CORP.
  5. Connect the positive battery cable (1) to the under hood junction block positive bolt (2).

    Tighten:  Tighten the bolt (2) to 17 N.m (13 lb ft).

  6. Connect the negative battery cable to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
