Terminal Removal Procedure

If the terminal is visibly damaged or is suspected of having a faulty connection, the terminal should be replaced.

Follow the steps below in order to repair pull-to-seat connectors.

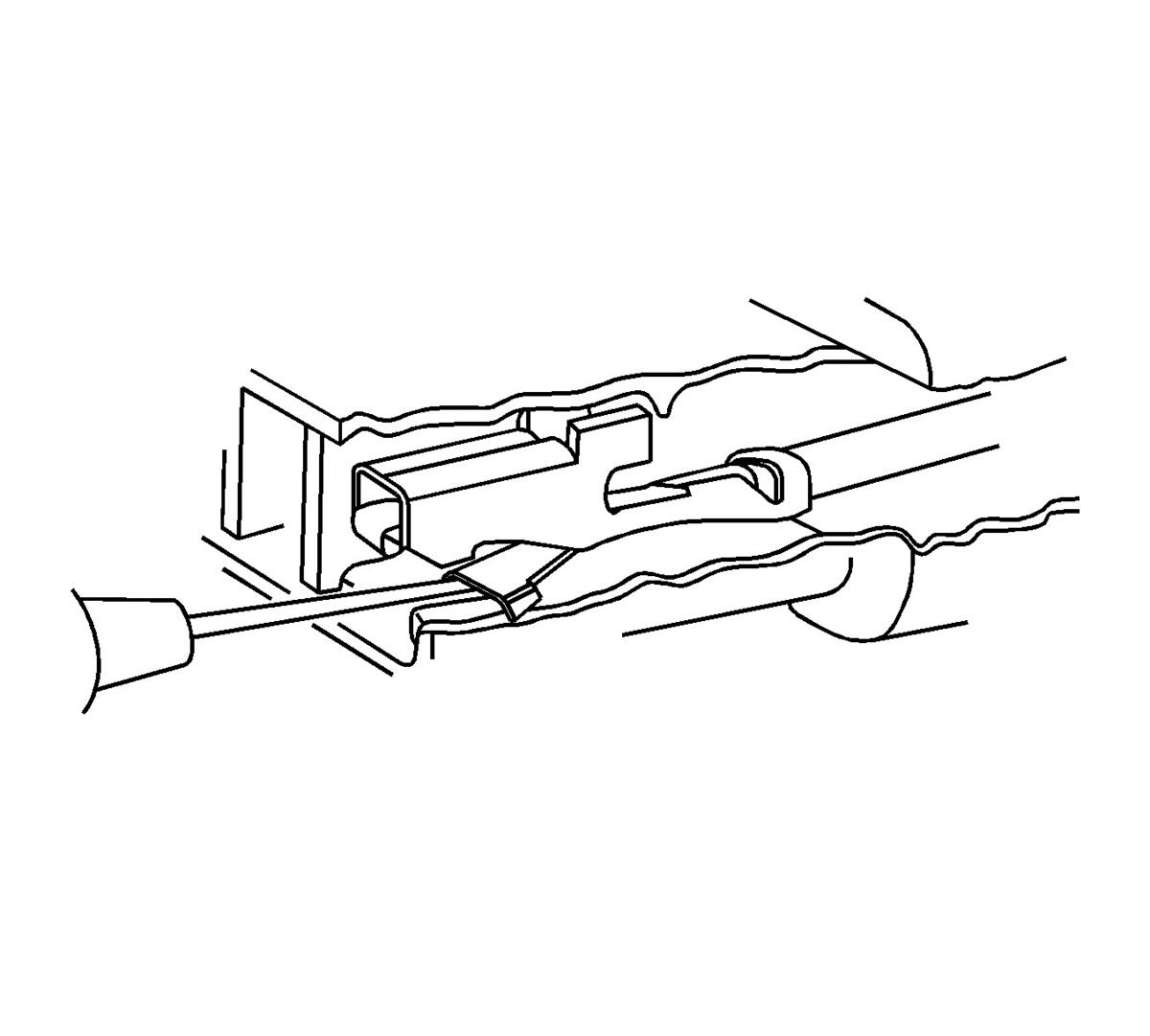

    Fig 1: Inserting Pick Into Connector Body
    GM904718Courtesy of GENERAL MOTORS CORP.
  1. Remove the connector position assurance (CPA) device and/or the secondary lock.
  2. Disconnect the connector from the component or separate the connectors for in-line connectors.
  3. Remove the terminal position assurance (TPA) device.
  4. Insert the proper pick or removal tool into the front of the connector body.
