Installation Procedure

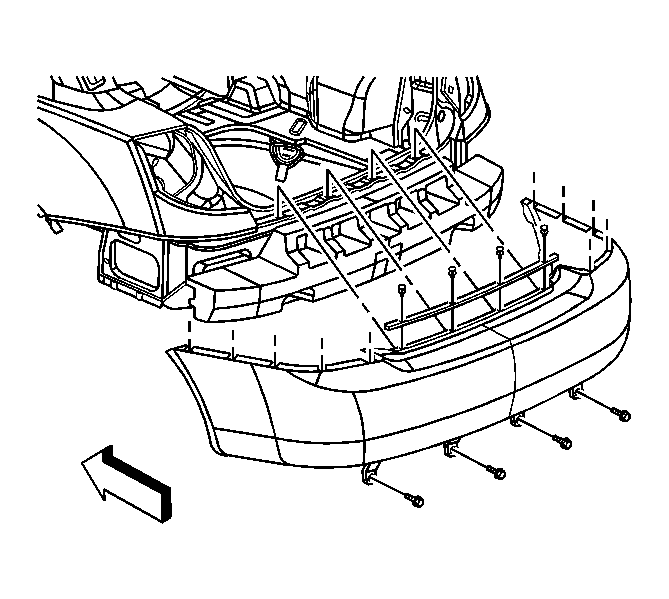

    Fig 1: View Of Rear Bumper Fascia
    GM863991Courtesy of GENERAL MOTORS CORP.
  1. Position the rear fascia over the impact bar.
  2. Firmly push the rear fascia ends into the quarter panel brackets.
    3. Fig 2: View Of Rear Wheelhouse Liner
    GM856911Courtesy of GENERAL MOTORS CORP.
  3. Install the push-in retainers into the wheelhouse liner.
    4. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the screws to the rear fascia inner edge of the quarter panel.

    Tighten:  Tighten the screws to 3 N.m (27 lb in).

    5. Fig 3: View Of Rear Bumper Fascia
    GM863991Courtesy of GENERAL MOTORS CORP.
  5. Install the push-in retainers into the fascia filler.
  6. Lower the vehicle
  7. Close the rear compartment.
