Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
    2. Fig 1: View Of Wheelhouse Liner Push-In Retainers
    GM864045Courtesy of GENERAL MOTORS CORP.
  2. Remove the push-in retainers from the front and lower portion of the wheelhouse liner.
  3. Remove the screw from the front and lower portion of the wheelhouse liner.
    4. Fig 2: View Of Front Fascia Connection (Sedan)
    GM864046Courtesy of GENERAL MOTORS CORP.
  4. Release the rear of the fascia from the fender support brackets.
    5. Fig 3: View Of Front Fog Lamp Assembly Electrical Connector
    GM870465Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the fog lamp electrical connector from the lamp, if equipped.

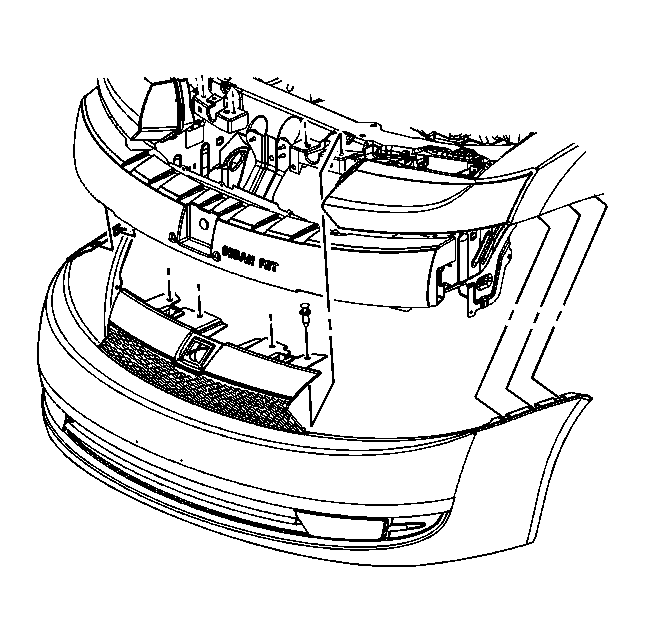

    6. Fig 4: View Of Front Fascia
    GM864048Courtesy of GENERAL MOTORS CORP.
  6. For the sedan and tuner coupe, remove the push-in retainers from the upper grille.
  7. Slide the fascia forward and remove the fascia from the vehicle.
    8. Fig 5: Removing Lower Grille
    GM864049Courtesy of GENERAL MOTORS CORP.
  8. For the sedan only, if a new fascia is being installed, remove the upper grille. Refer to Grille Replacement .
  9. If a new fascia is being installed, remove the lower grille. Refer to Fascia Grille Replacement - Front Bumper - Lower .
