Installation Procedure

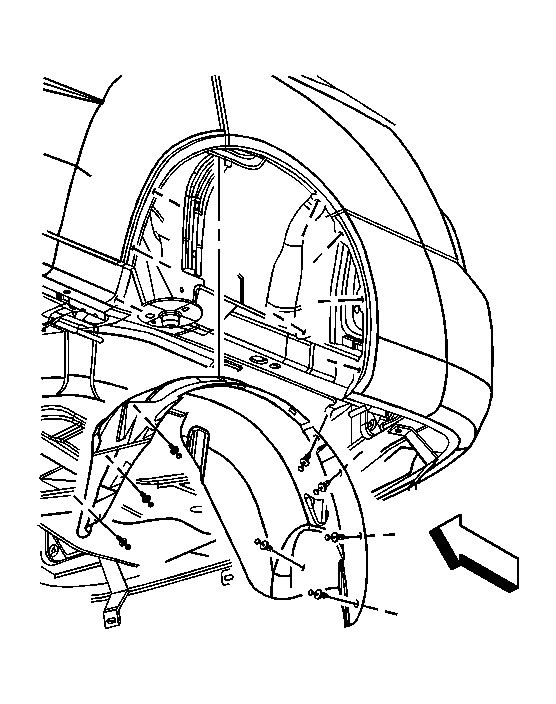

    Fig 1: View Of Rear Wheelhouse Liner
    GM856911Courtesy of GENERAL MOTORS CORP.
  1. Install the rear wheelhouse liner to the vehicle.
    2. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws that secures the rear bumper fascia to the rear wheelhouse liner.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  3. Install the rear tires and wheels. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  4. Lower the vehicle.
