Installation Procedure

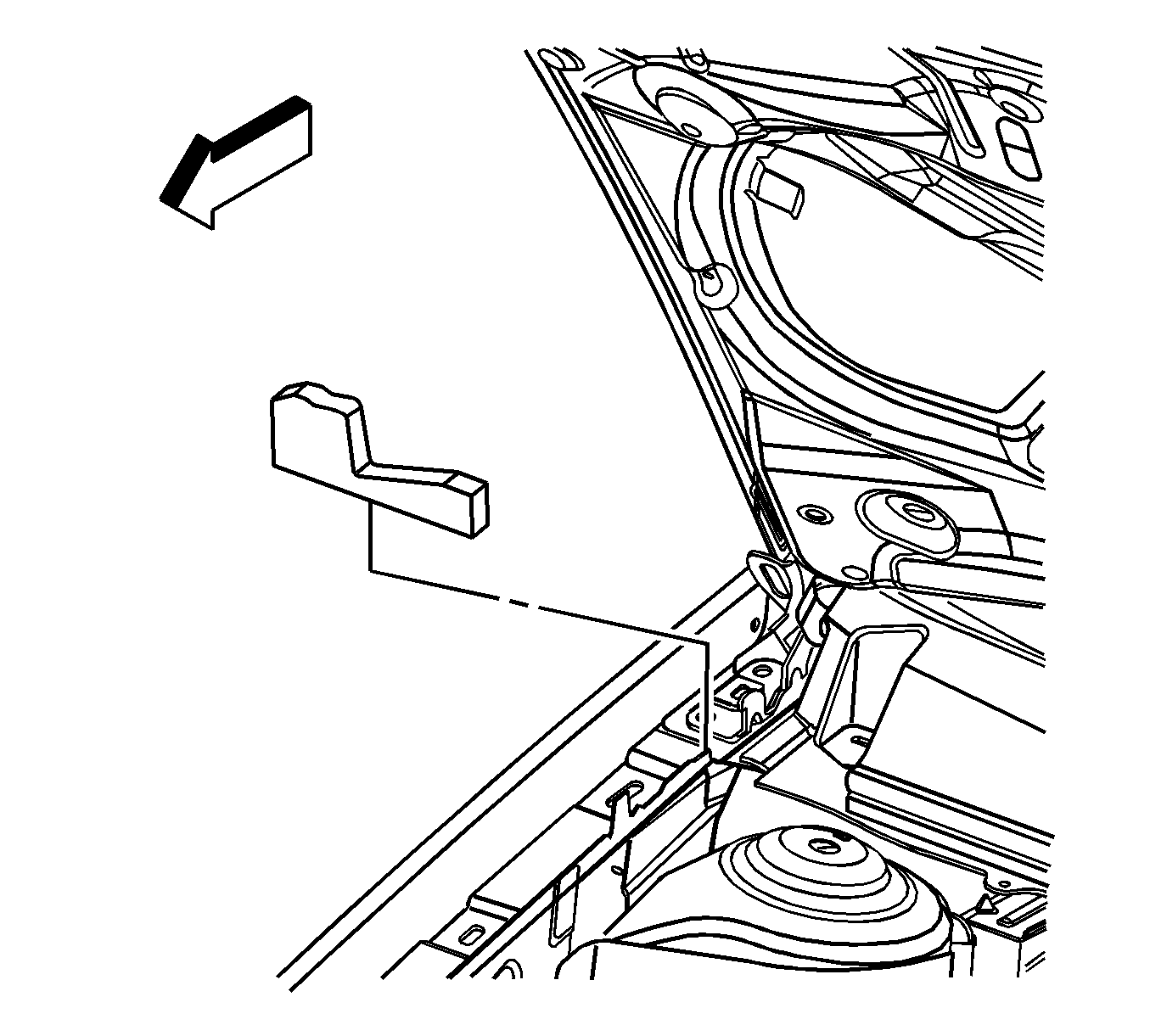

    Fig 1: View Of Rear Side Hood Seal
    GM872463Courtesy of GENERAL MOTORS CORP.
  1. Remove the protective backing paper from the adhesive on the rear side hood seal.
  2. With the rear side hood seal butted to the plenum to hood seal, press the side hood seal until the adhesive is fully adhered.
  3. Close the hood.
