Installation Procedure

    Fig 1: View Of Rear Seat Cushions & Console
    GM873779Courtesy of GENERAL MOTORS CORP.
  1. Position the rear seat cushion in the vehicle.
  2. Lift the rear seat center console and pull the seat belt buckles through the pockets between the seat cushion and the console.

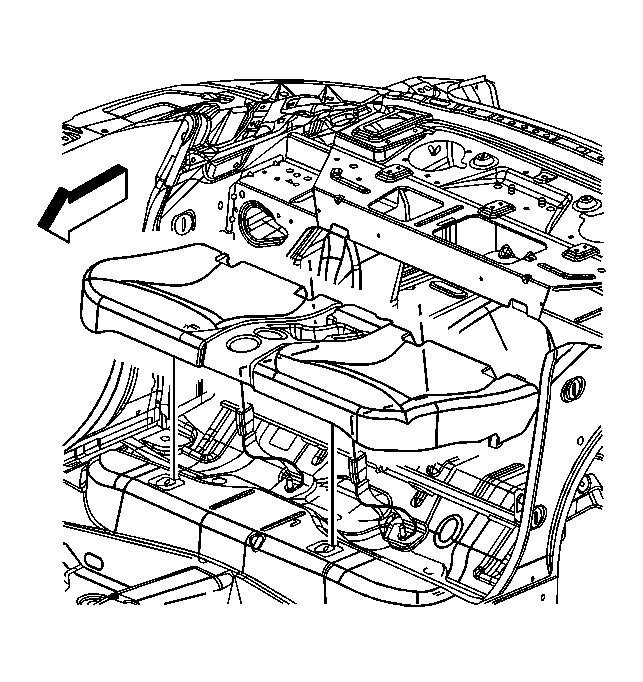

    3. Fig 2: View Of Rear Seat Cushion (Coupe)
    GM873546Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the seat belt buckles are not trapped beneath the cushion.
  3. Install the rear seat cushion by pushing rearward and down until the cushion engages in the floor pan tabs.
    4. Fig 3: View Of Rear Seat Center Console
    GM891338Courtesy of GENERAL MOTORS CORP.
  4. Push down on the center console.
  5. Install the center console push-in fastener.
