Removal Procedure

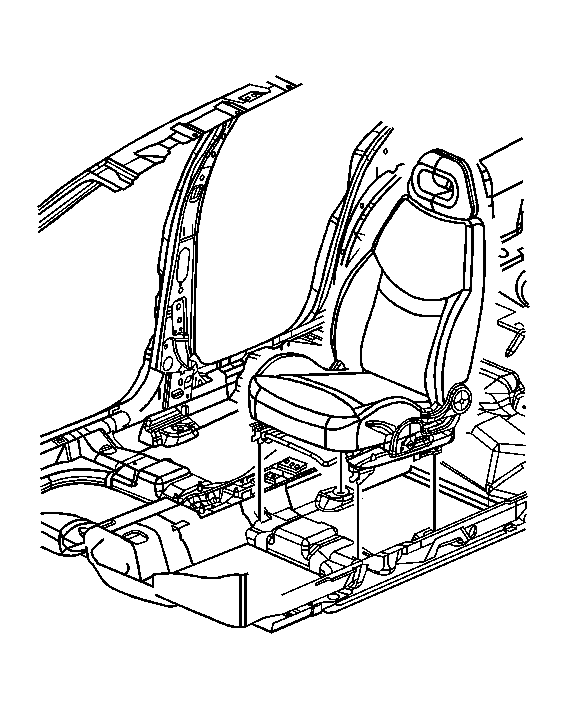

    Fig 1: View Of Front Bucket Seat
    GM873509Courtesy of GENERAL MOTORS CORP.
  1. Remove the seat from the vehicle. Refer to Seat Replacement - Front Bucket .
  2. Remove the front seat side trim. Refer to Seat Cushion Outer Trim Panel Replacement - Front Seat (Fold Flat)  or Seat Cushion Outer Trim Panel Replacement - Front Seat (Non-Fold Flat) .
  3. For vehicles with 4-way driver seats, raise the seat cushion.
    4. Fig 2: View Of Seat Cushion & Frame
    GM873772Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the J-hook retainers from the seat cushion trim cover.
  5. Carefully pull the trim cover out from between the cushion and the seat back and the adjusters.
  6. Remove the trim cover and pad from the seat cushion.
    7. Fig 3: View Of Seat Cushion
    GM873768Courtesy of GENERAL MOTORS CORP.
    NOTE: Use care when disengaging the hook and loop fasteners. The hook end may pull from the seat foam pad, requiring foam pad replacement.
  7. Carefully remove the trim cover from the pad by disengaging the hook and loop retainers.
