Removal Procedure

  1. Open the hood.
  2. Remove the screws that retain the grille applique to the grille.

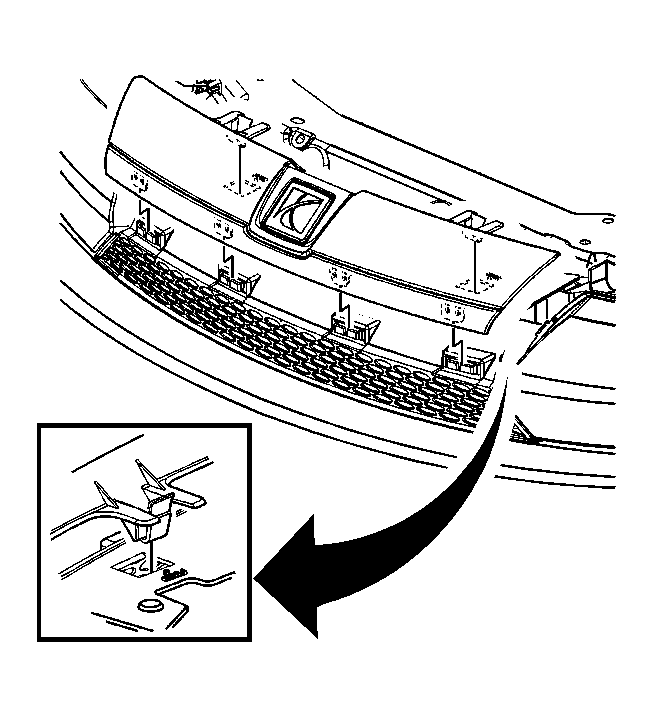

    3. Fig 1: View Of Upper Grille Applique
    GM864043Courtesy of GENERAL MOTORS CORP.
  3. Depress the retainer tabs on the grille applique.
  4. Gently pull on the grille applique. Remove the grille applique.
  5. If the grille applique is being replaced, remove the emblem. Refer to Emblem Replacement - Grille .
