Flywheel: Service and Repair

Engine Flywheel Replacement

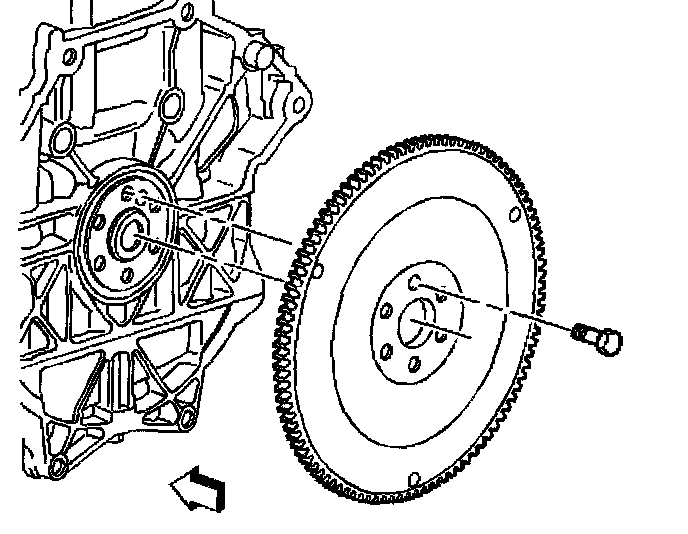

Removal Procedure





1. Remove the transmission.
2. Remove the flywheel bolts, and note the position of the flywheel to the crank shaft
3. Remove the flywheel.

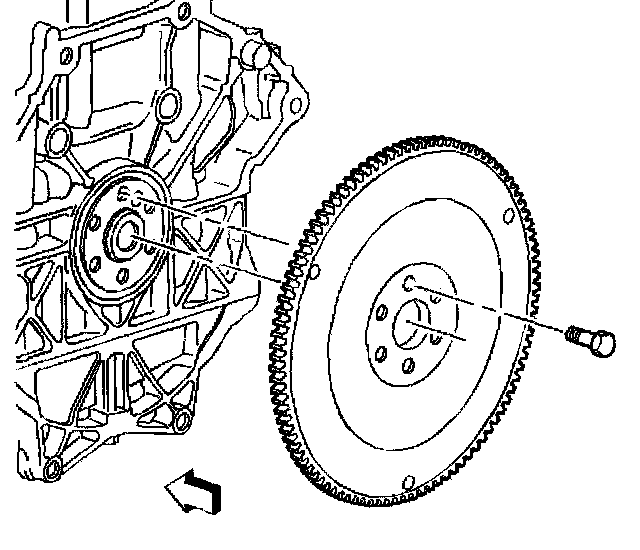

Installation Procedure





1. Position the flywheel on the crankshaft as previously noted.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the flywheel bolts.
- Tighten the flywheel bolts to 53 Nm (39 lb ft) plus 25°.
3. Install the transmission.
