Lower With/Without RPO K34

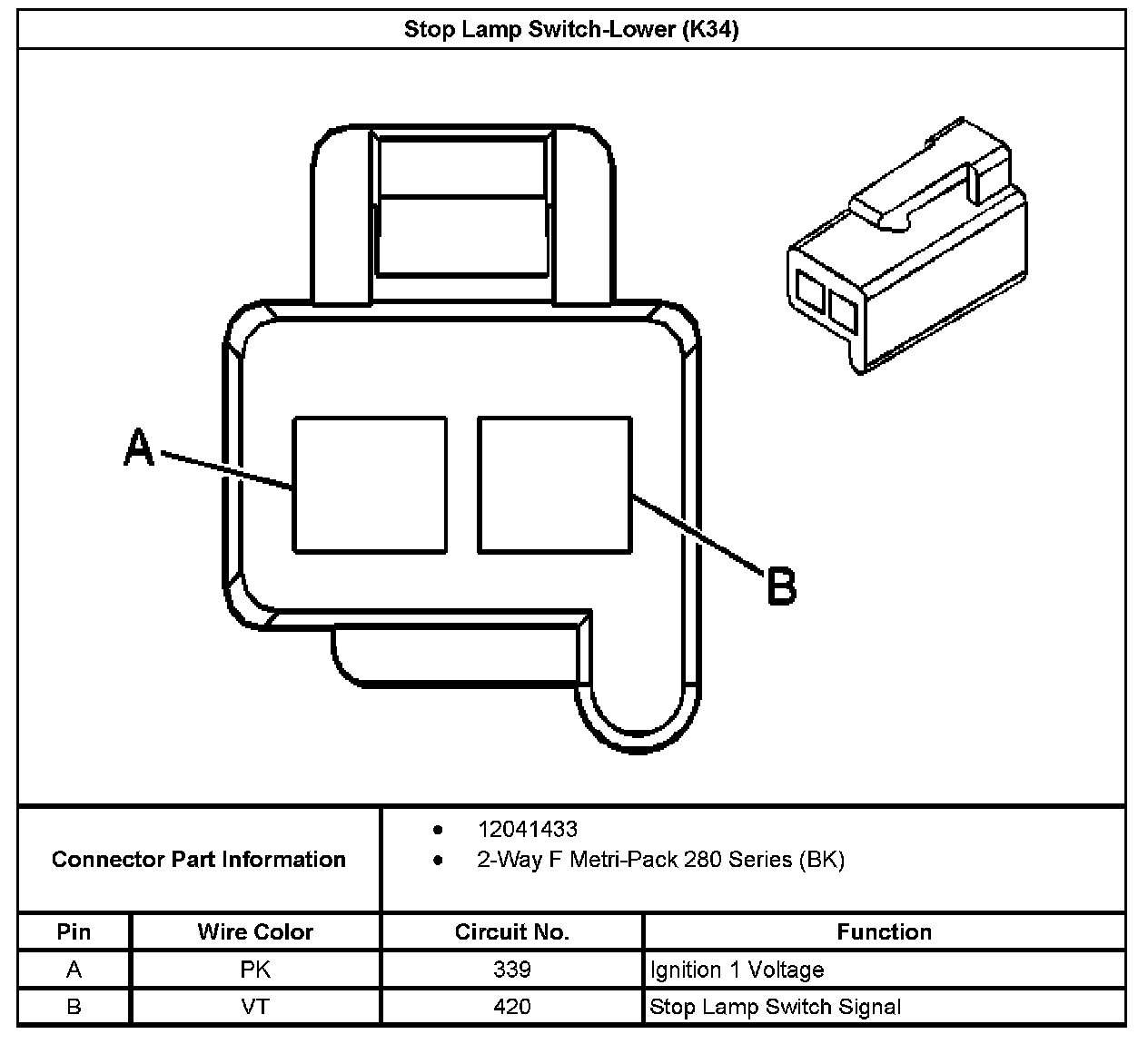

Stop Lamp Switch-Lower (With RPO Code K34):

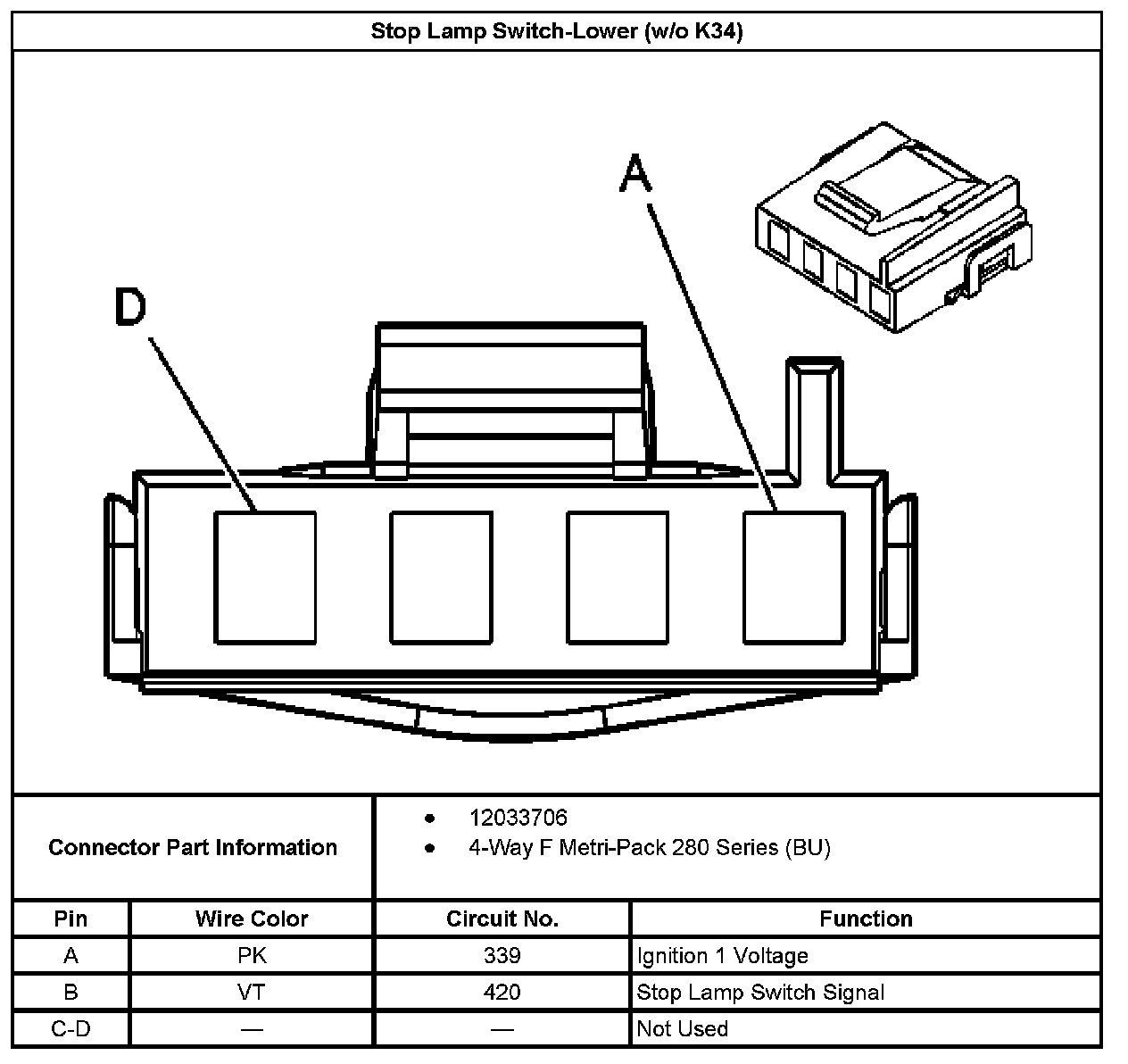

Stop Lamp Switch-Lower (Without RPO Code K34):
