Home >> Saturn >> 2003 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Mirror Switch >> Diagrams

Power Mirror Switch: Diagrams

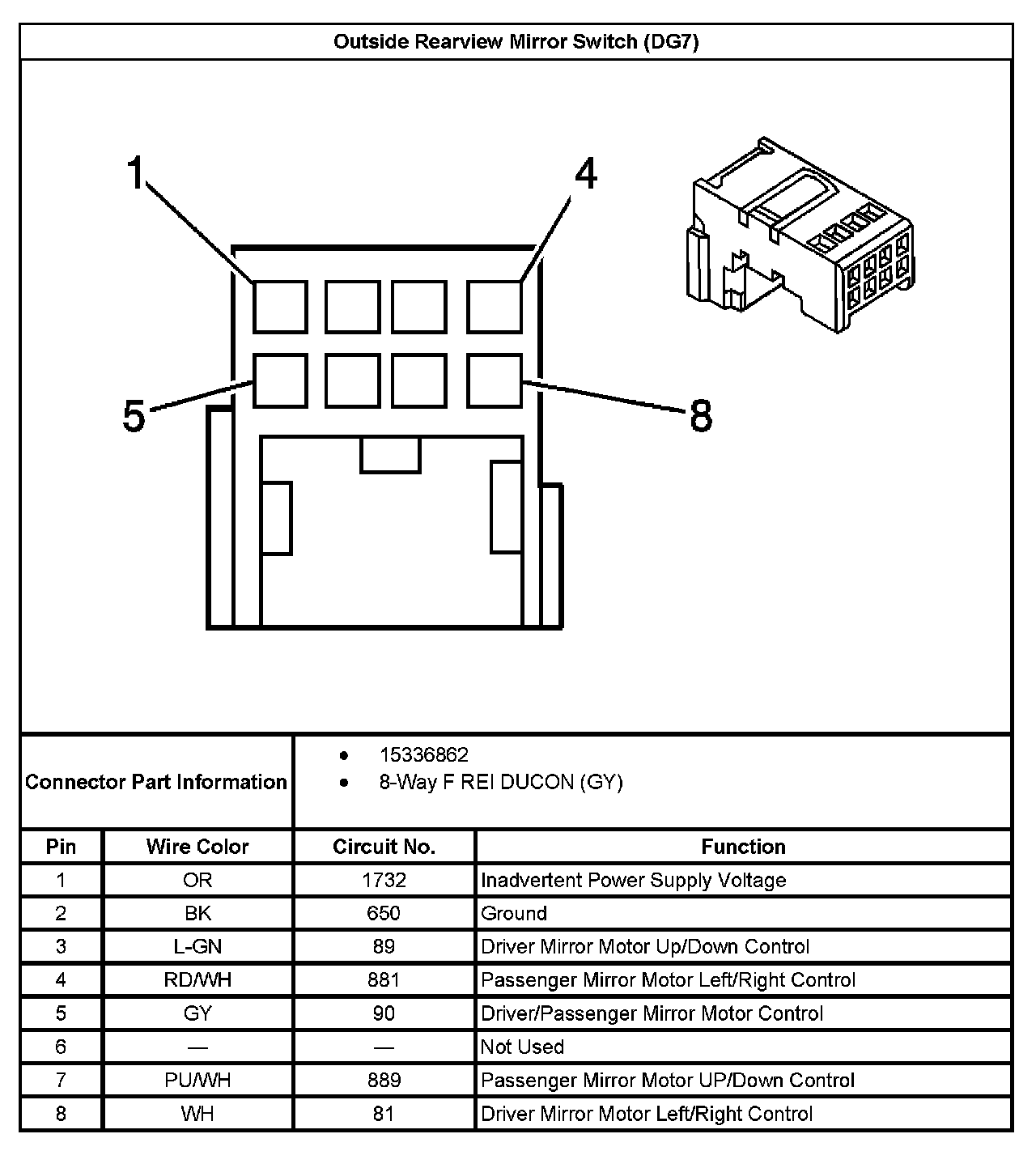

Outside Rearview Mirror Switch (With RPO Code DG7):
