Hazard Warning Switch: Service and Repair



HAZARD WARNING SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument panel (I/P) accessory trim plate.

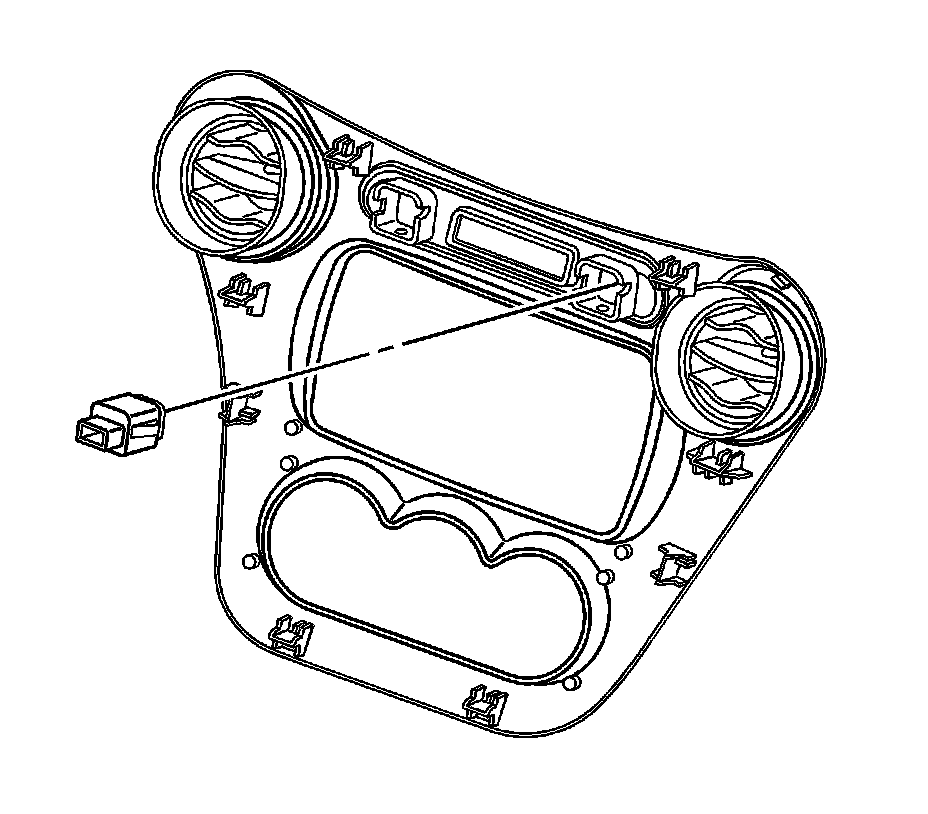

2. Carefully release the retaining tabs and remove the hazard switch from the I/P accessory trim plate.

INSTALLATION PROCEDURE




1. Install the hazard switch to the I/P accessory trim plate. Ensure that the retaining tabs are fully engaged.
2. Install the I/P accessory trim plate.
