Door Switch: Diagrams
Door Jamb Switch - Driver:
Door Jamb Switch - Front Passenger:

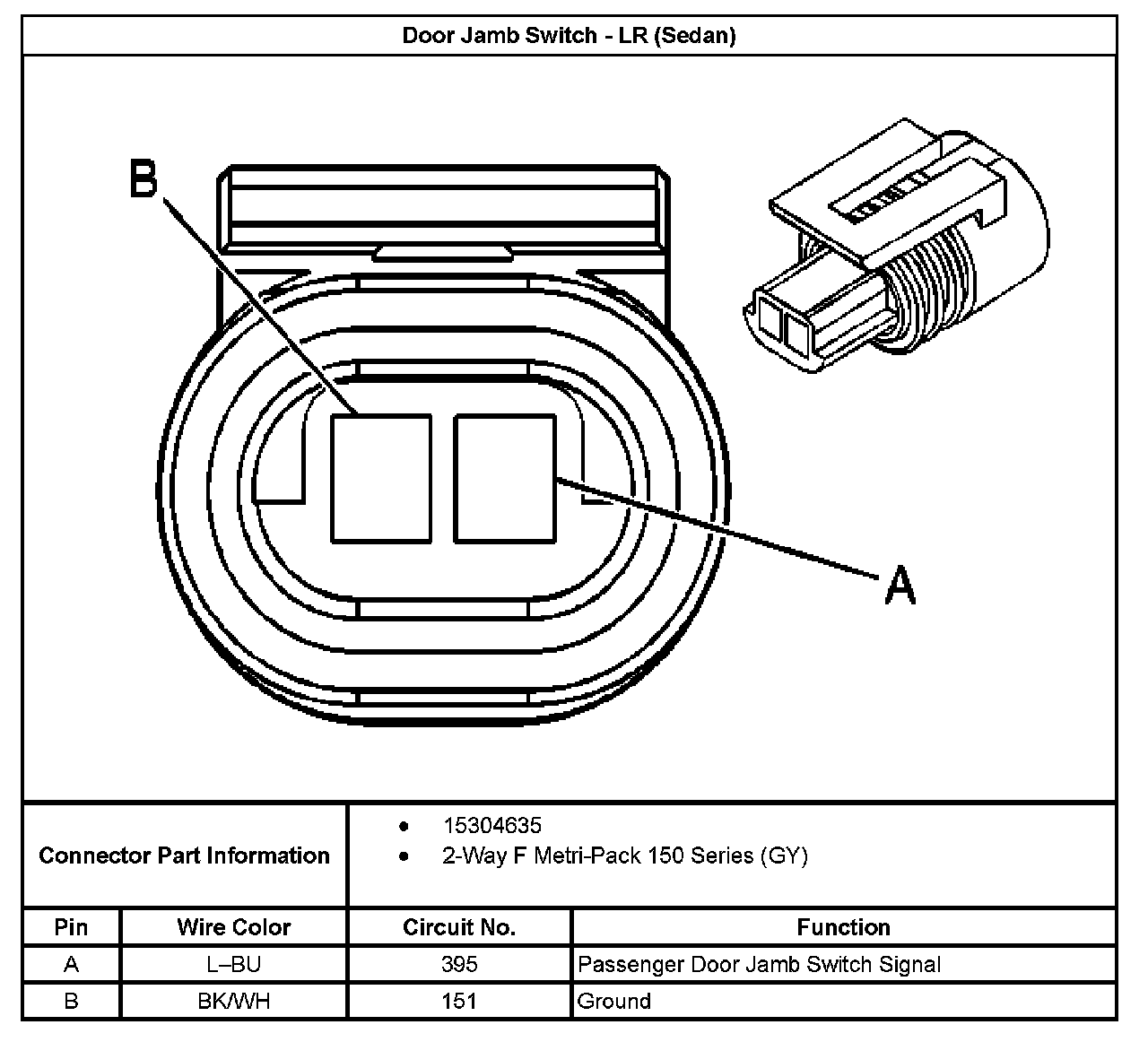

Door Jamb Switch - LR (Sedan):

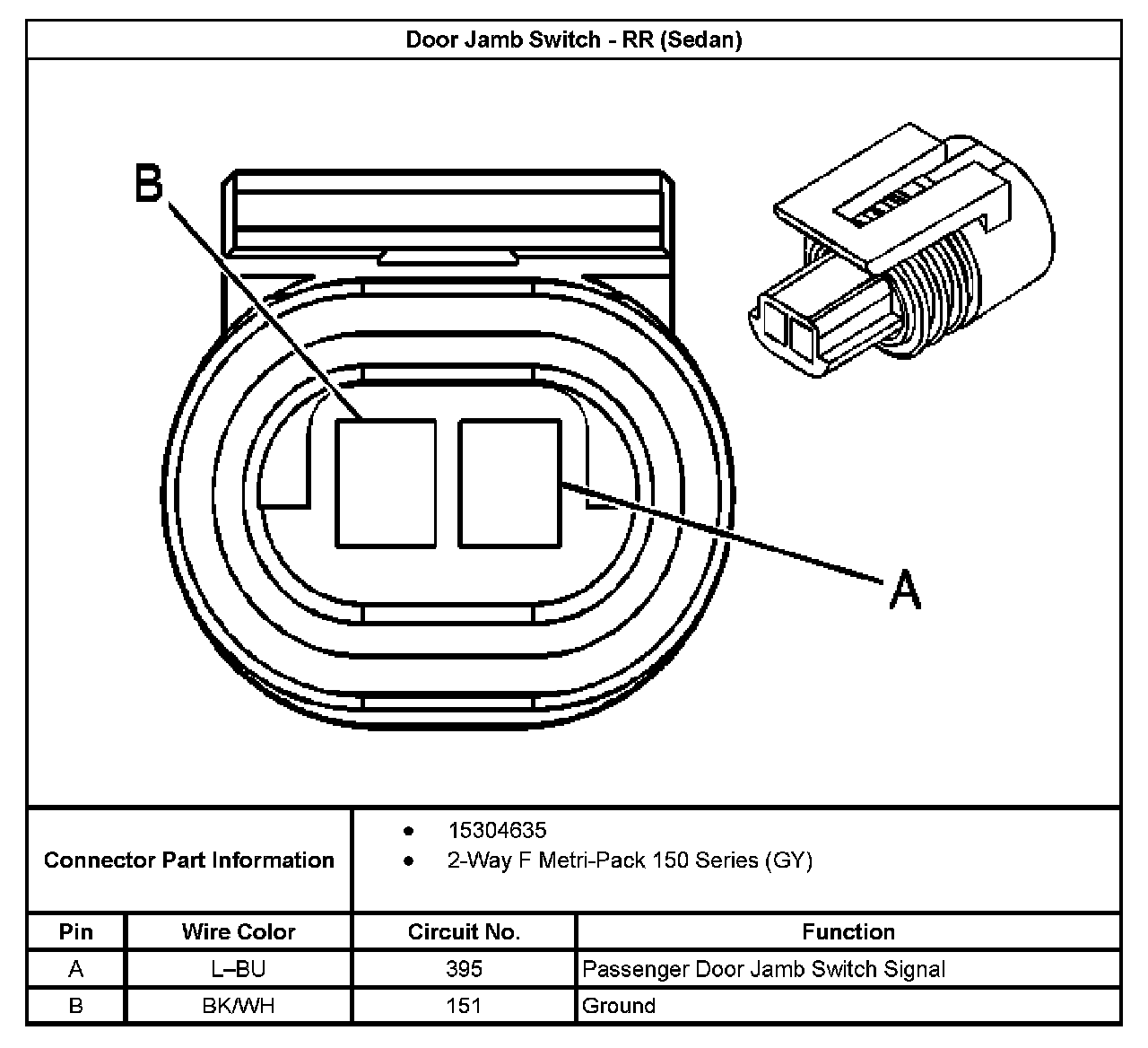

Door Jamb Switch - RR (Sedan):
