Rear Crankshaft Main Bearing Seal: Service and Repair

Crankshaft Rear Oil Seal Replacement

- Tools Required
- J 42067 Rear Main Seal Installer

Removal Procedure





1. Remove the transmission.

Important: Do not damage the outside diameter of the crankshaft or chamber with any tool.





3. Pry the crankshaft rear oil seal with a flat-bladed tool.

Installation Procedure

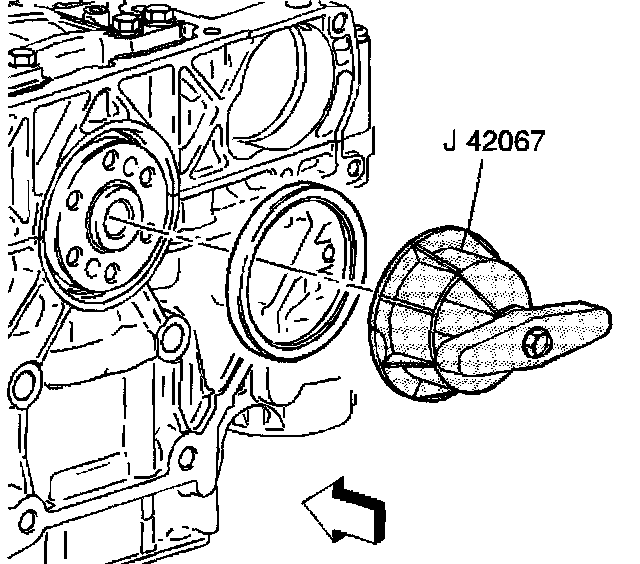

1. Use the J 42067 and install the seal.





Notice: Refer to Fastener Notice in Service Precautions.

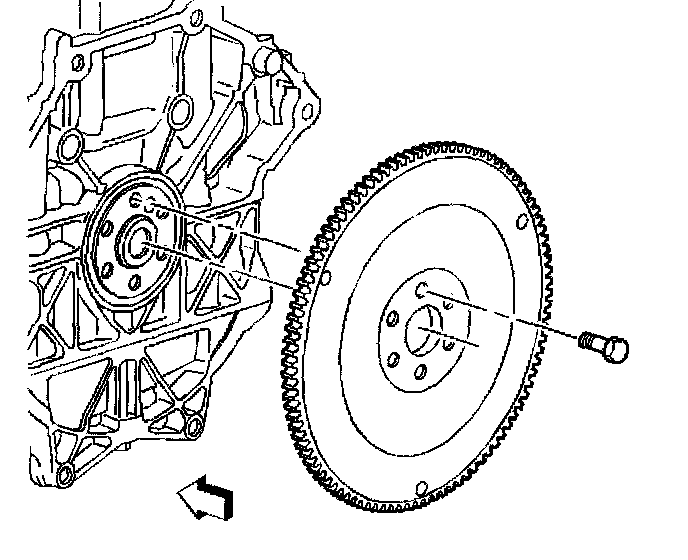

2. Install the flywheel.
- Tighten the flywheel bolts to 53 Nm (39 ft. lbs.) plus 25°.
3. Install the transmission.
