Chart 2 - Radio Display Functions, But No Sound From One To Three Speakers

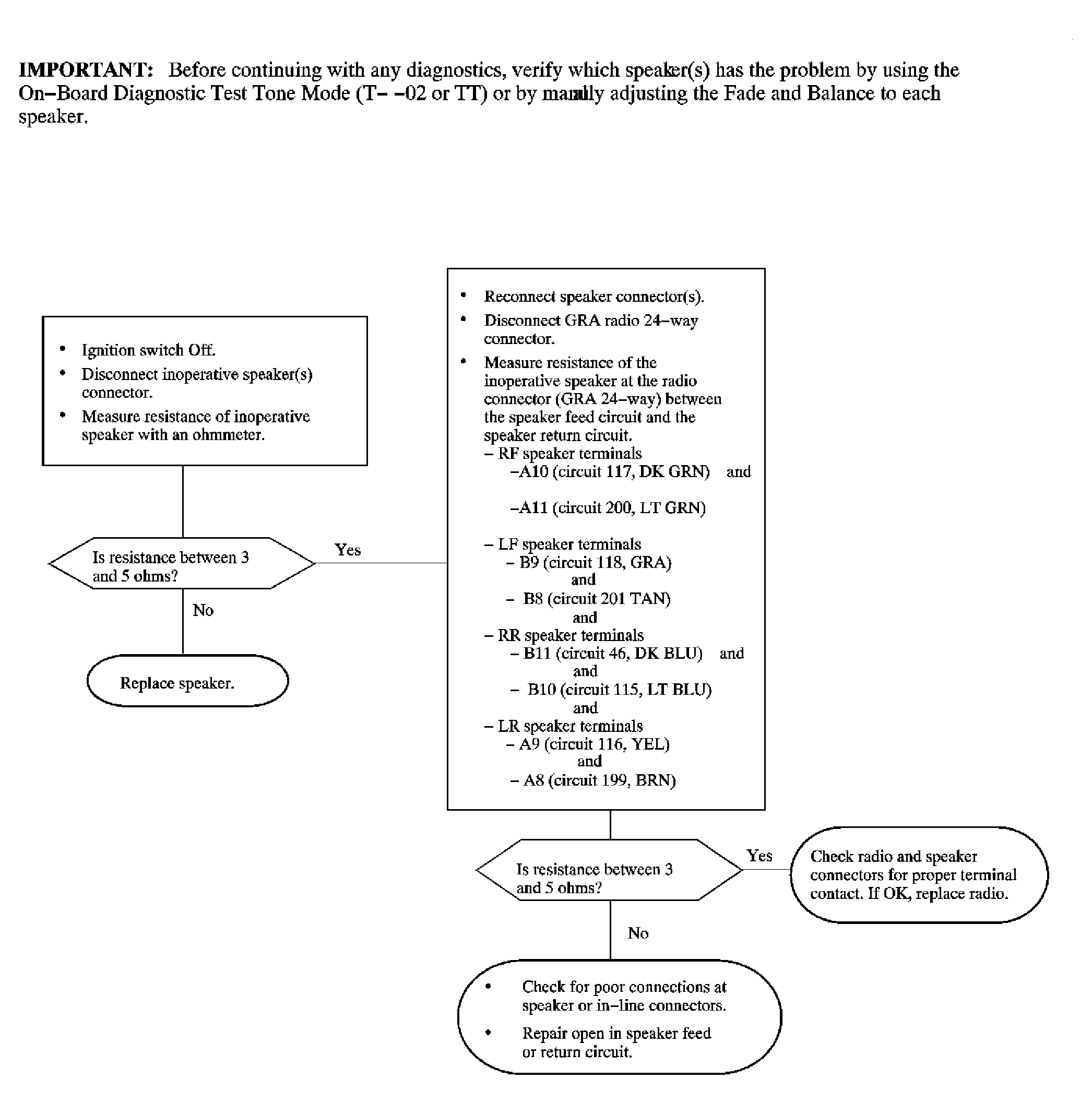

Fig 1: Chart 2 - Radio Display Functions, But No Sound From One To Three Speakers
GM874987Courtesy of GENERAL MOTORS CORP.
