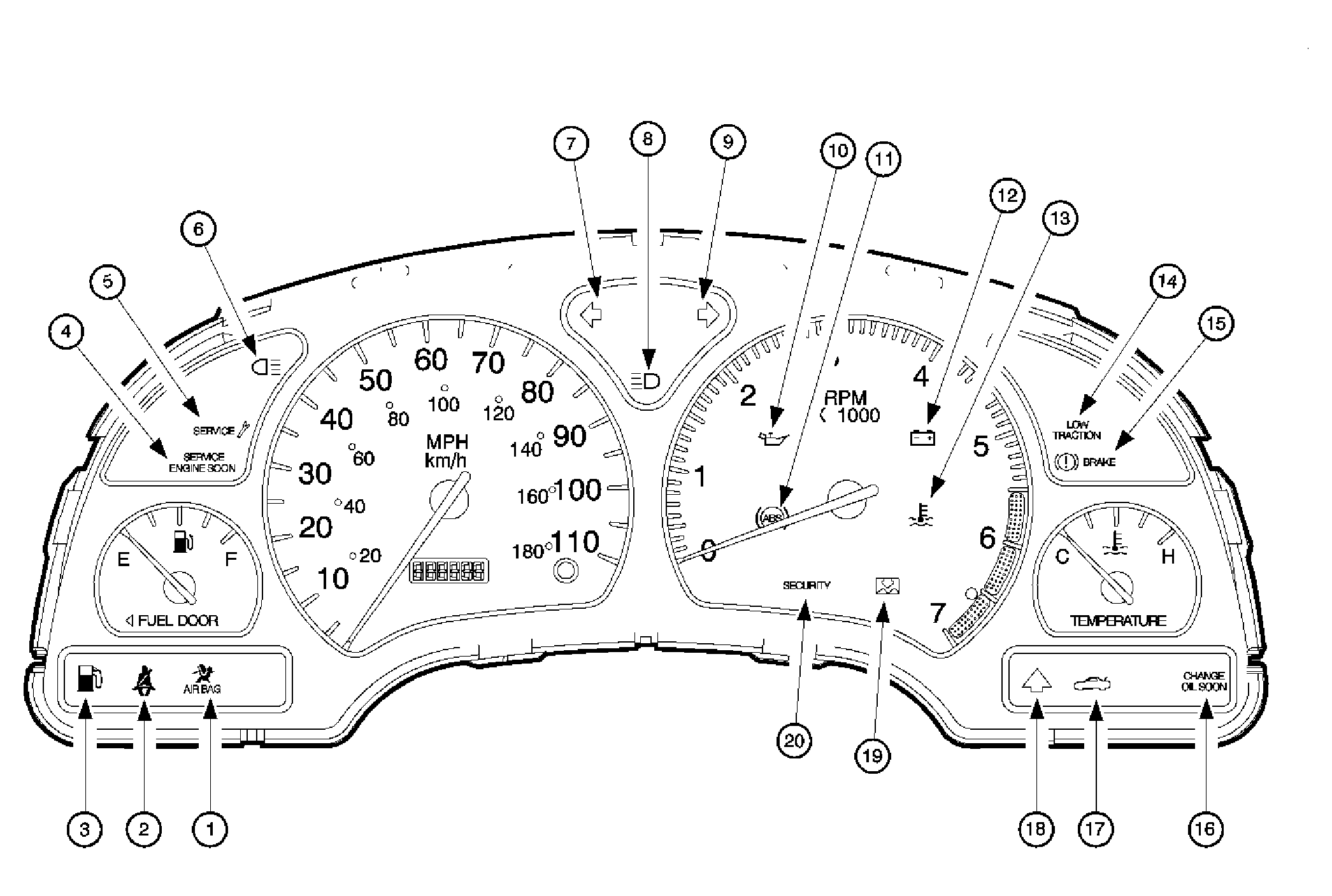

Instrument Panel, Gages, and Console Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Air Bag |
| 2 |
Seatbelt |
| 3 |
Low Fuel |
| 4 |
Service Engine Soon |
| 5 |
Service (Wrench) |
| 6 |
Daytime Running Lamps (DRL) |
| 7 |
Left Turn Lamp |
| 8 |
High Beam Lamp |
| 9 |
Right Turn Lamp |
| 10 |
Oil Pressure |
| 11 |
ABS |
| 12 |
Charging System |
| 13 |
Hot Coolant |
| 14 |
Low Traction |
| 15 |
Brake |
| 16 |
Change Oil Soon |
| 17 |
Liftgate Ajar (Wagon Only) |
| 18 |
Upshift Arrow (Manual Trans Only) |
| 19 |
Low Coolant |
| 20 |
Security |
IMPORTANT:

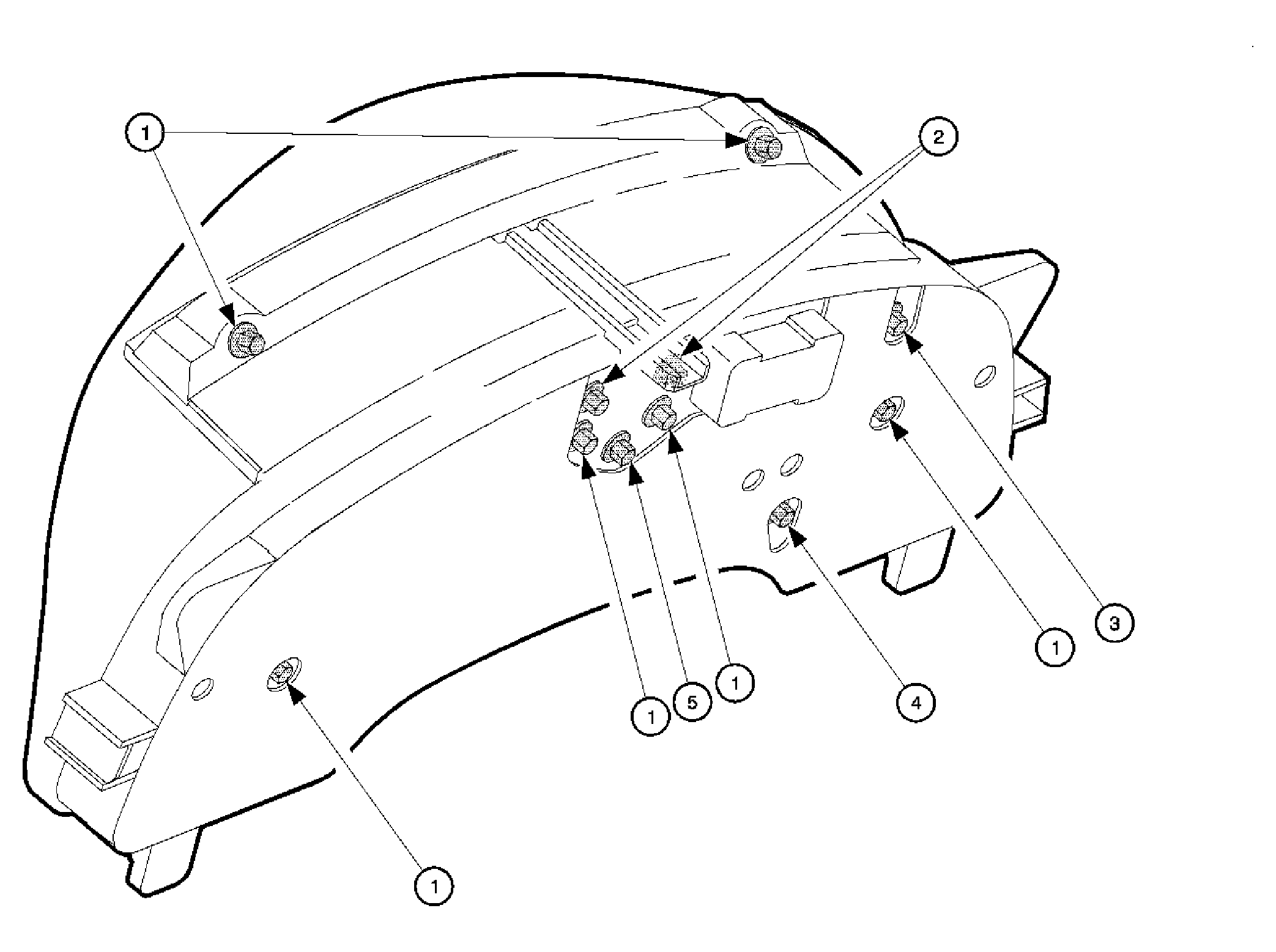

The daytime running lamp (DRL) telltale, high beam indicator, and turn signal indicators are illuminated by replaceable bulbs. All other telltales are illuminated by LEDs which are not replaceable. In addition to the telltales listed above, the instrument cluster contains 6 replaceable bulbs used for backlighting and an additional replaceable bulb used for the odometer.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Instrument Cluster Illumination (six bulbs) |
| 2 |
Indicators |
| 3 |
Daytime Running Lamp (DRL) Telltale |
| 4 |
Backlighting |
| 5 |
High Beam Indicator |
