Roof -- "S" Series
>>
Diagnostic Information and Procedures
>>
Power Sunroof Diagnosis
>>
Chart 2
Chart 2

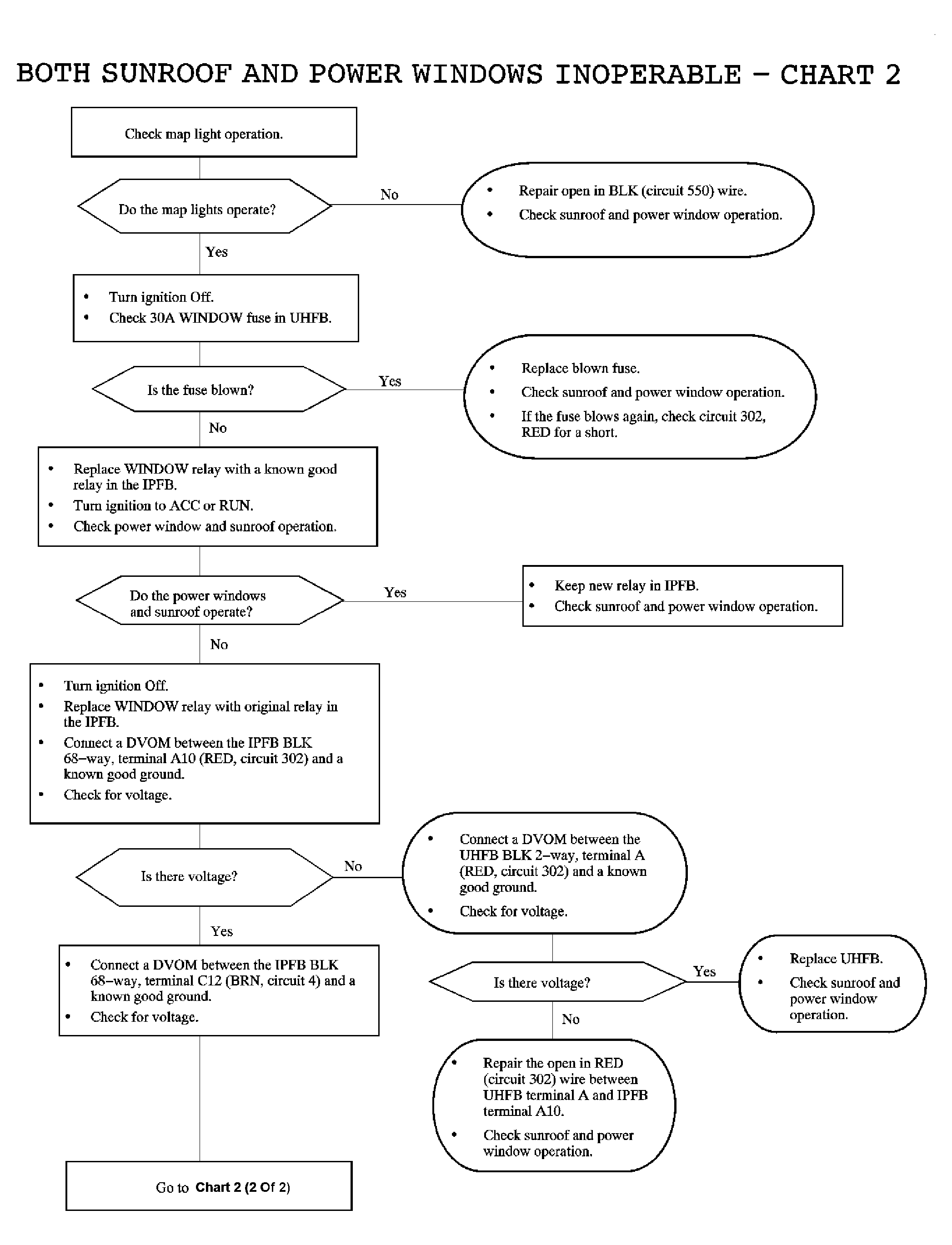

Fig 1: Chart 2, Both Sunroof & Power Windows Inoperable (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

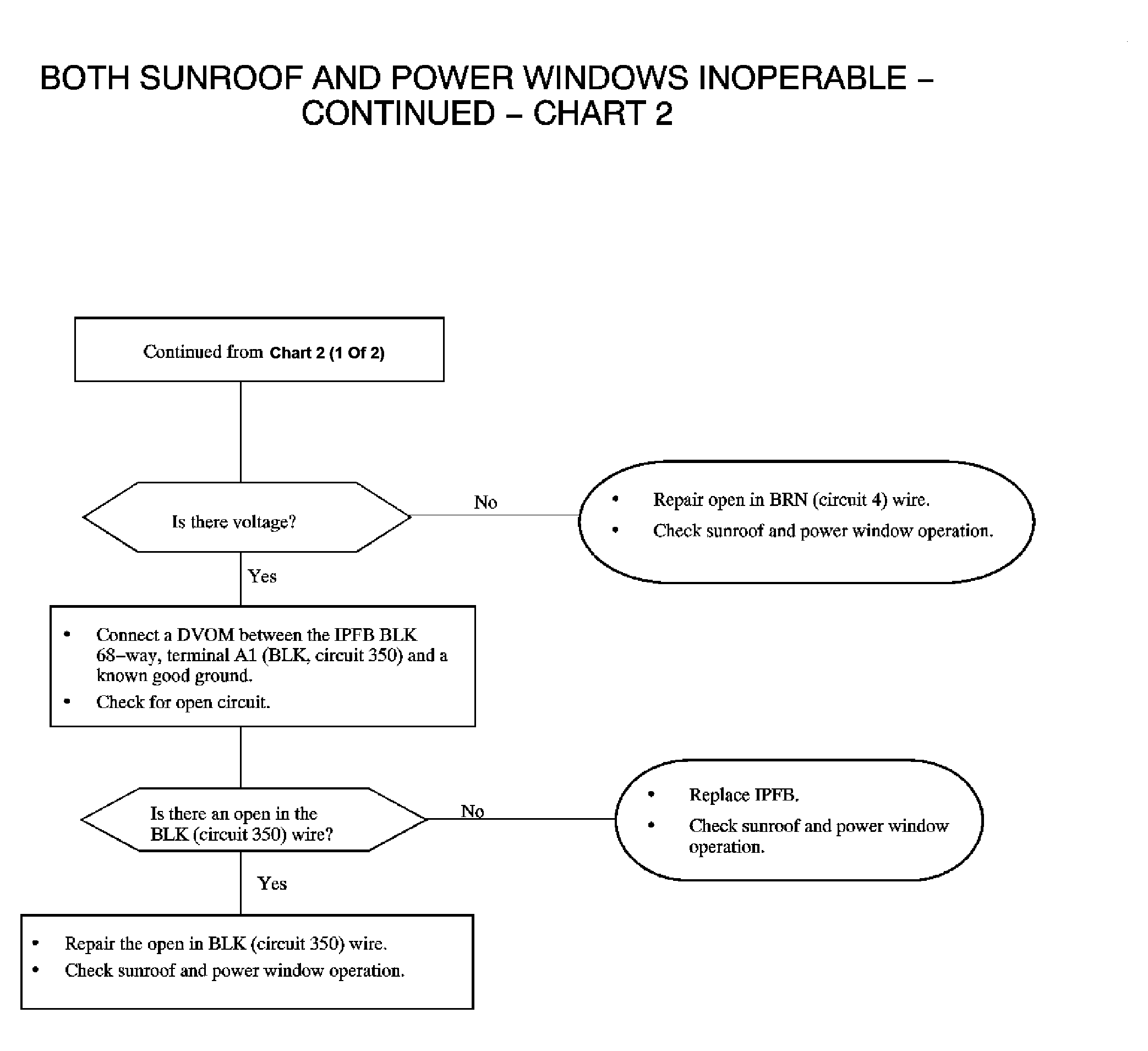

Fig 2: Chart 2, Both Sunroof & Power Windows Inoperable (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
