Removal Procedure

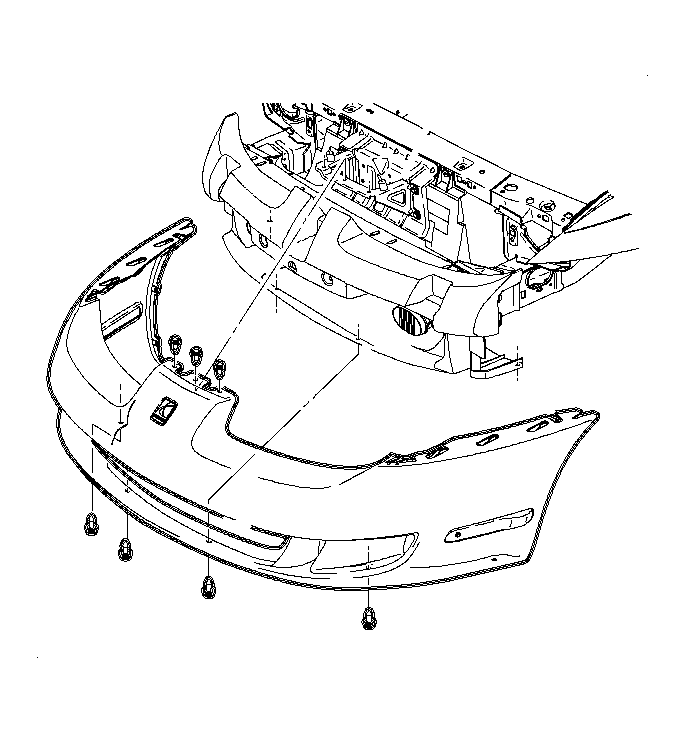

    Fig 1: Upper And Lower Fascia Retainers (Coupe)
    GM866329Courtesy of GENERAL MOTORS CORP.
  1. Remove the front fascia. Refer to Front Bumper Fascia Replacement (Sedan/Wagon)  or Front Bumper Fascia Replacement (Coupe) .
    2. Fig 2: Fascia Support-To-Bumper Impact Bar Attaching Nuts
    GM866692Courtesy of GENERAL MOTORS CORP.
  2. Remove the fascia support. Refer to Fascia Support Replacement .
    3. Fig 3: Fog Lamp
    GM866769Courtesy of GENERAL MOTORS CORP.
  3. Remove the fog lamps, if equipped. Refer to Fog Lamp Capsule Replacement - Front in Lighting Systems.
  4. Remove the tow hook bracket to the impact bar stud nut. The remaining stud can be pushed into the bar for the bar removal.
    5. Fig 4: Impact Bar
    GM866643Courtesy of GENERAL MOTORS CORP.
  5. Remove the impact bar to spaceframe attachment nuts.
  6. Remove the impact bar.
