Installation Procedure

    Fig 1: Fascia, Side Marker Lamps, Fascia Brackets, Fog-Lamp Grilles (If Equipped) And Emblem.
    GM867280Courtesy of GENERAL MOTORS CORP.
  1. If installing a new fascia, transfer the side marker lamps, fascia brackets, fog-lamp grilles (if SL2 or SW2 is not equipped with fog lamps) and the emblem.

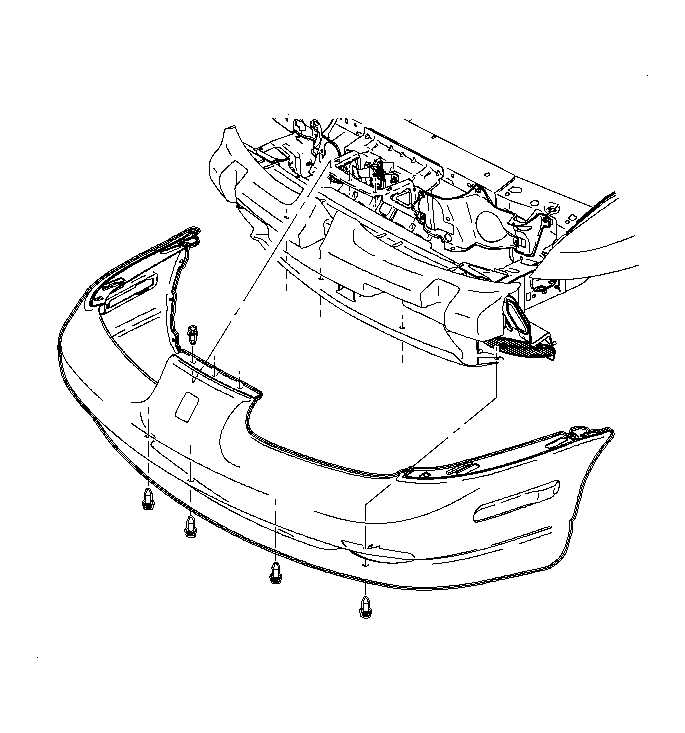

    2. Fig 2: Front Bumper Fascia & Retainers
    GM867369Courtesy of GENERAL MOTORS CORP.
  2. Install the front fascia assembly to the vehicle by positioning the fascia over the front bumper fascia energy absorber.
  3. Install the side marker lamp sockets to the lamp housings.
    4. Fig 3: Front Fascia
    GM867391Courtesy of GENERAL MOTORS CORP.
  4. Install the fascia ends over the shoulder bolts extending down from the front fender upper support bracket assembly. The holes in the fascia are slotted to allow for installation without removing the shoulder bolts. The front fascia lower support plate should be on the lower side of the fascia.
    5. Fig 4: Push Retainers
    GM867286Courtesy of GENERAL MOTORS CORP.
  5. Install the retainers, the front fascia to the front wheelhouse panel.
  6. Install the upper front plastic retainers.
  7. Install the lower front and the middle front plastic retainers.
