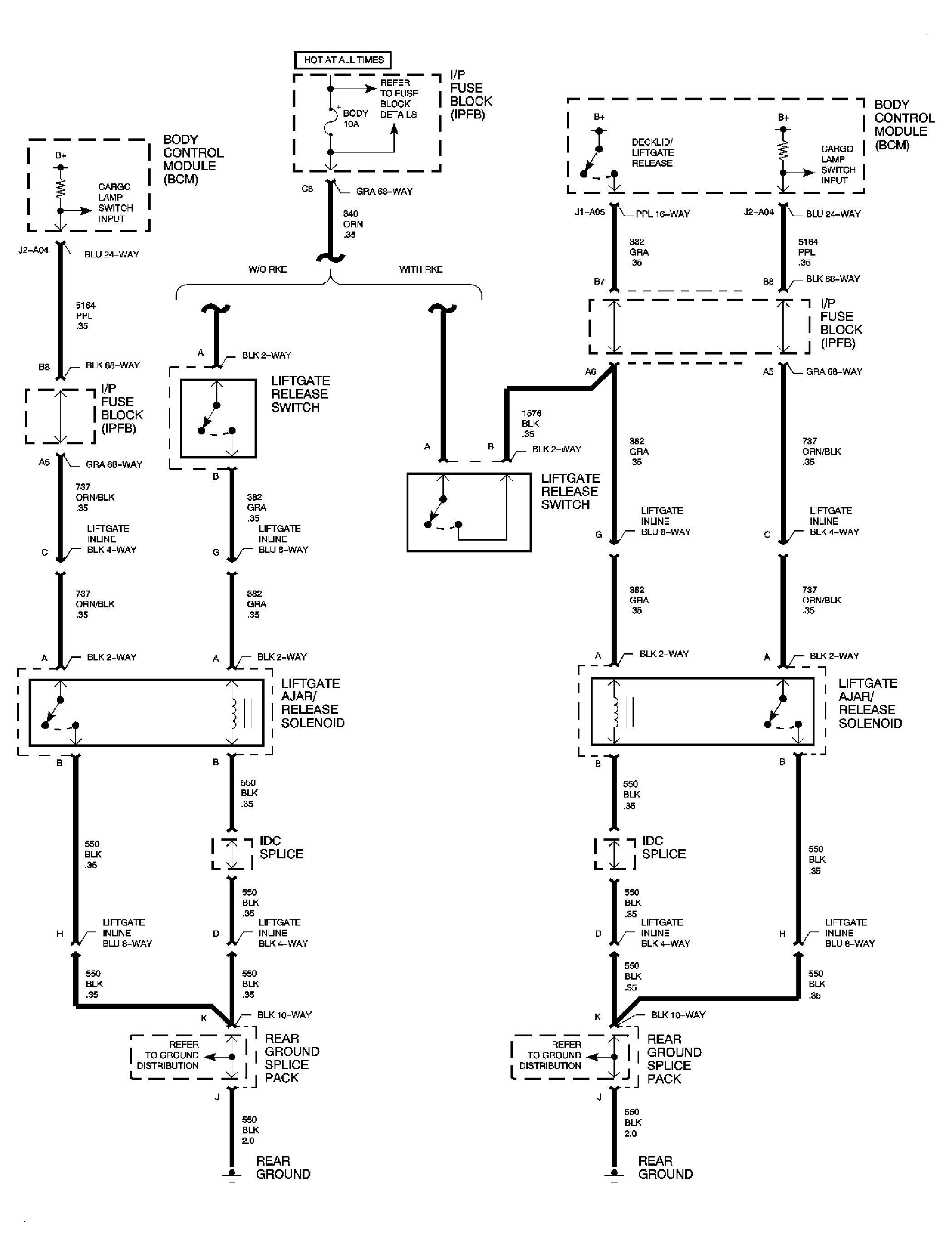

Home >> Saturn >> 2002 >> SC2 Automatic, MP6 >> Repair and Diagnosis (Single Page) >> Body & Frame >> Exterior Body Panels >> Body Rear End -- "S" Series >> Schematic and Routing Diagrams >> Body Rear End Schematics
