Body & Frame
>>
Exterior Body Panels
>>
Body Rear End -- "S" Series
>>
Diagnostic Information and Procedures
>>
DTC B3268
>>
Diagnostic Aids
Diagnostic Aids
Inspect the wiring harness for damage. Inspect for broken or chafed insulation.
If a fault is suspected to be intermittent, wiggling the harness wiring may help in locating the fault.

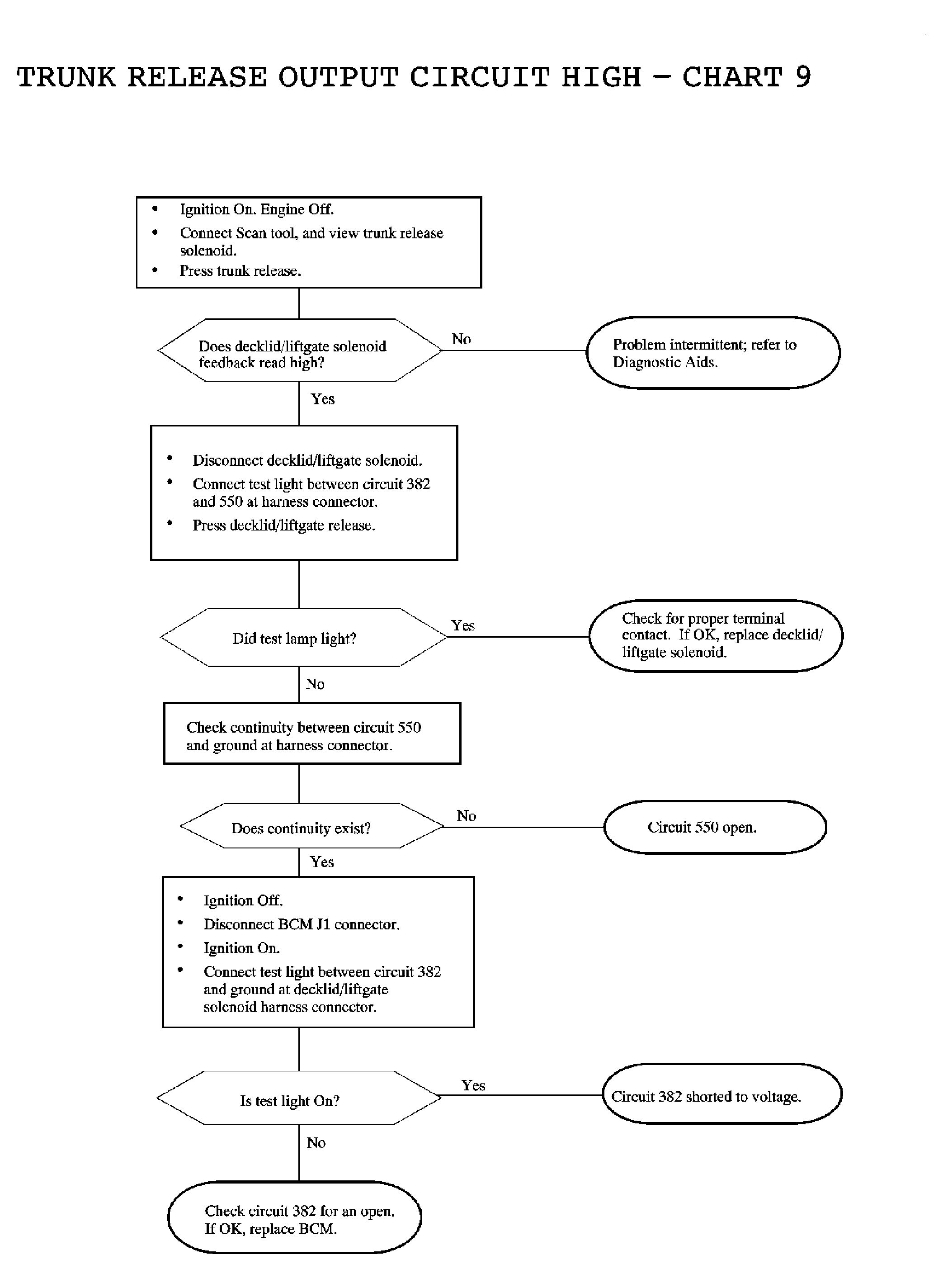

Fig 1: Chart 9 Trunk Release Output Circuit High
Courtesy of GENERAL MOTORS CORP.
