Removal Procedure

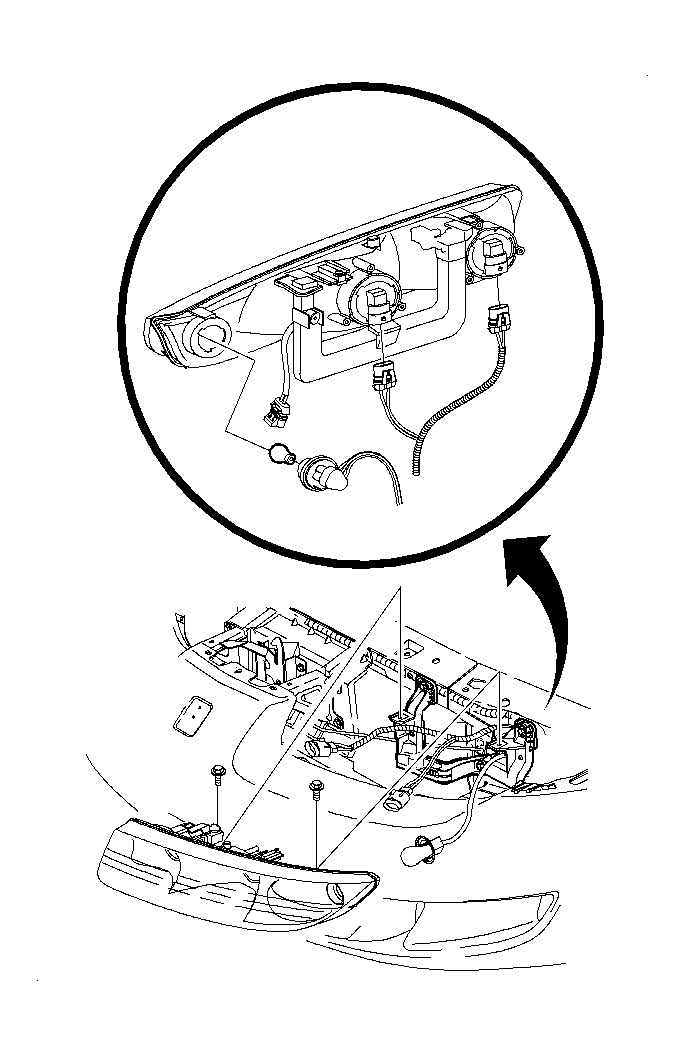

    Fig 1: Left Headlamp Assembly (Coupe)
    GM866509Courtesy of GENERAL MOTORS CORP.
  1. Remove the left headlamp assembly.
  2. Remove the 2 headlamp attachment bolts.
  3. Disconnect the headlamp bulbs and the turning signal sockets from the headlamp housing.
  4. Lift the headlamp housing to remove.
  5. Disconnect the horn connector.
  6. Remove the horn bolt.
    7. Fig 2: Horn Assembly
    GM863271Courtesy of GENERAL MOTORS CORP.
  7. Remove the horn assembly.
    • Horn connector (1)
    • Horn (2)
    • Horn bolt (3)
    • Left front motor compartment rail (4)
    • Forward lamp harness - horn lead (5)
