Chart 1 - Rear Defogger Grid and Defog "On" Indicator Inoperative

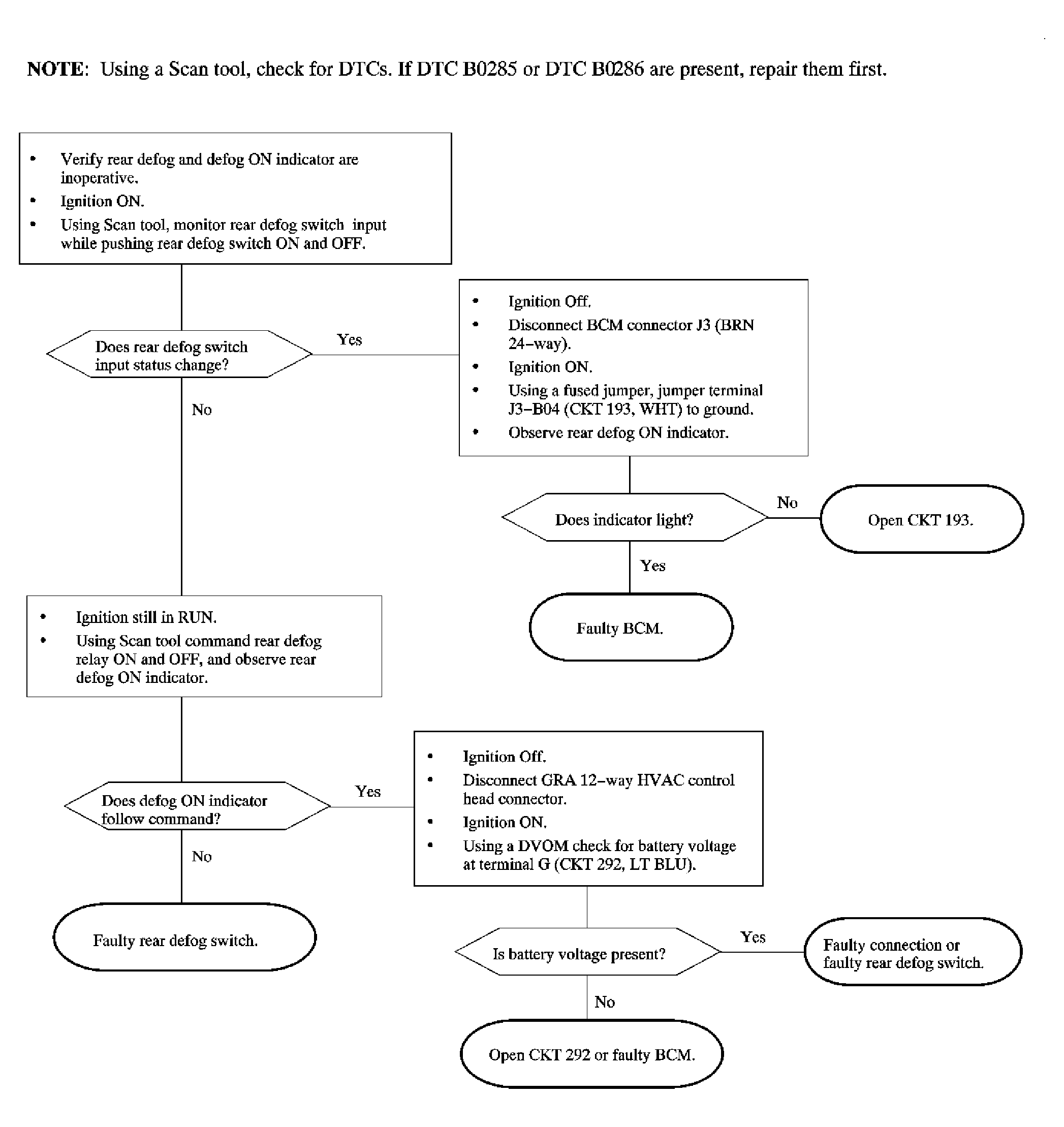

Fig 1: Chart 1 - Rear Defogger Grid and Defog "On" Indicator Inoperative

GM874430

Courtesy of GENERAL MOTORS CORP.
