Removal Procedure

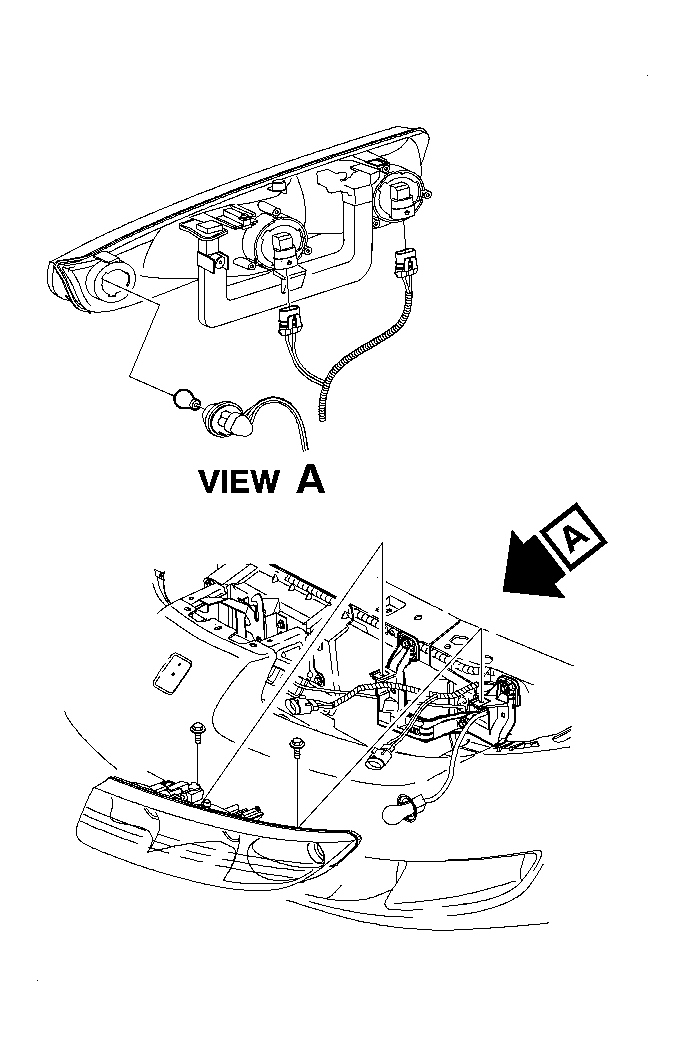

Fig 1: Headlamp Assembly (Coupe)
GM866500Courtesy of GENERAL MOTORS CORP.
CAUTION: Halogen bulbs contain a gas under pressure. Handling a bulb improperly could cause it to shatter into flying glass fragments. To help avoid personal injury:
  • Turn off the headlamp switch and allow the bulb to cool before changing bulbs. Leave the headlamp switch off until the bulb change is complete.
  • Always wear eye protection when changing a halogen bulb.
  • Handle the bulb only by its base. Avoid touching the glass.
  • Do not drop or scratch the bulb. Keep moisture away.
  • Place the used bulb in the new bulb's carton and dispose of it properly. Keep halogen bulbs out of the reach of children.
  1. Remove the 2 headlamp attachment bolts.
  2. Disconnect the headlamp bulbs and turn the signal sockets from the headlamp housing.
  3. Lift the headlamp housing to remove.
