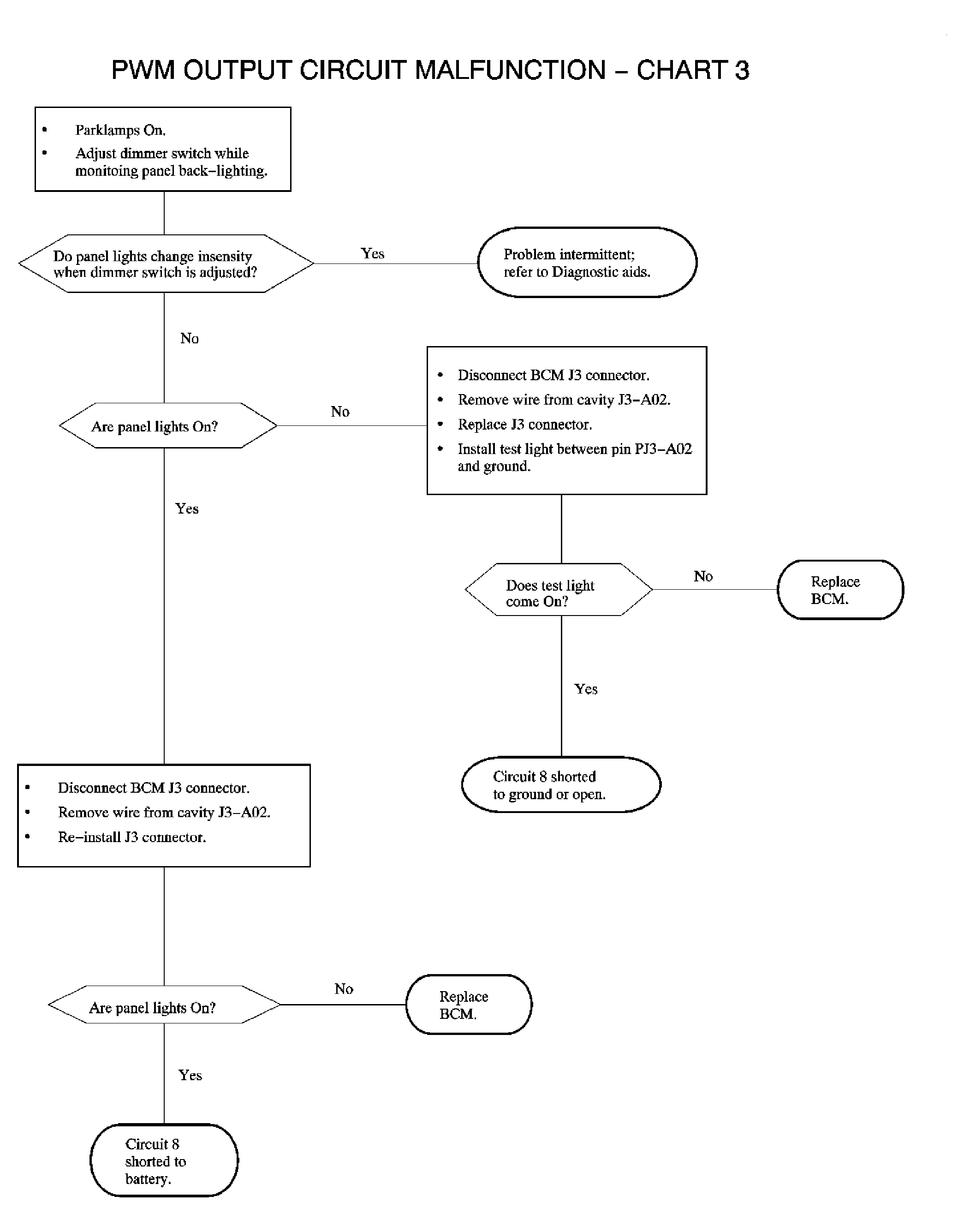

Diagnostic Aids
- Check for poor connection at the BCM. Inspect harness connectors for backed out terminals, improper terminal mating, broken connector locks, improperly formed or damaged terminals and poor terminal to wire connection (terminal crimped over wire insulation and not conductors). Inspect wiring harness for damage.
- If fault is suspected to be intermittent, wiggling harness wiring may help in locating fault.
