Headlights/Daytime Running Lights (DRL) Schematics

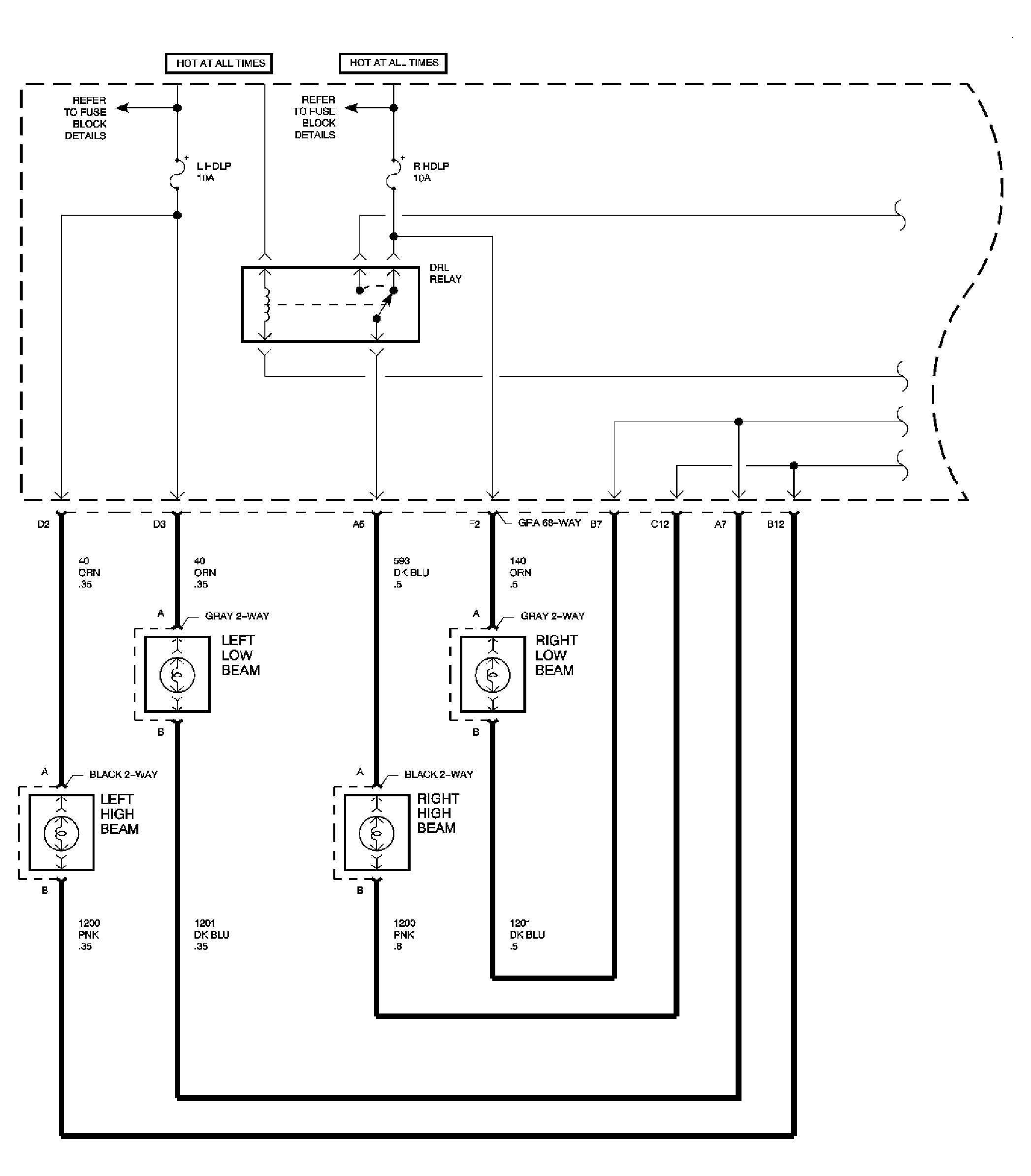

Fig 1: Headlamps (1 of 2)

GM875727

Courtesy of GENERAL MOTORS CORP.

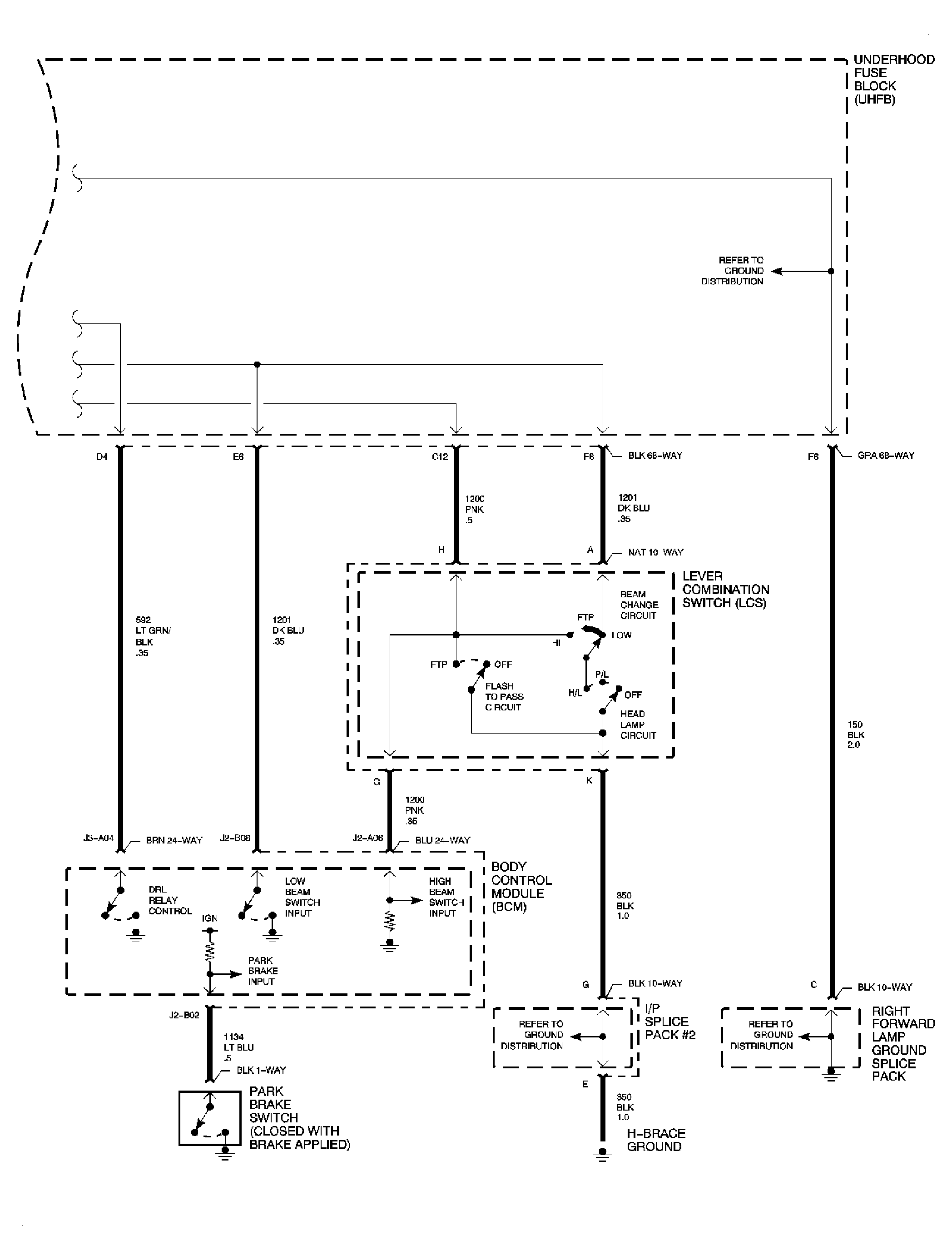

Fig 2: Headlamps (2 of 2)

GM875735

Courtesy of GENERAL MOTORS CORP.
