Accessory Drive Belt Replacement

Minor cracks in the belt rib are normal. They are the result of reverse bending around a backside pulley. Do not replace belts for minor cracks.

Belts that have chunking longer that 5 mm in one or more places should be replaced.

Belts should also be replaced if cord breakage or fabric separation is observed.

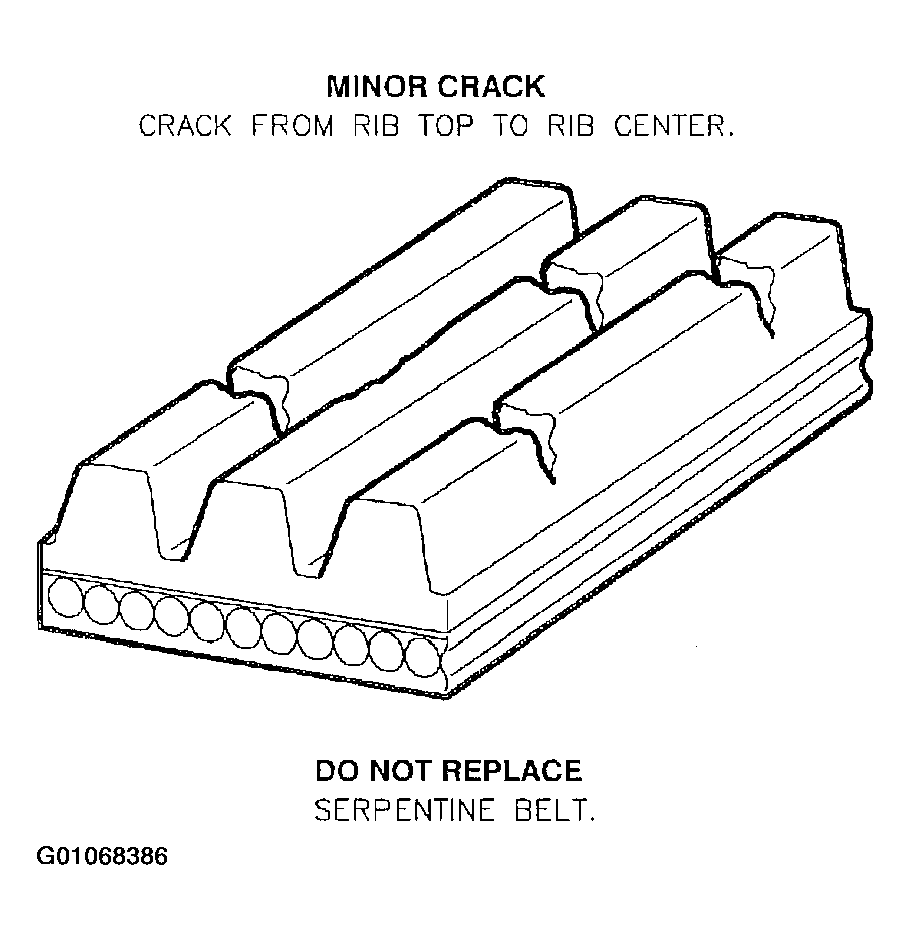

Fig 1: Determining Minor Cracking Conditions
G01068386Courtesy of GENERAL MOTORS CORP.

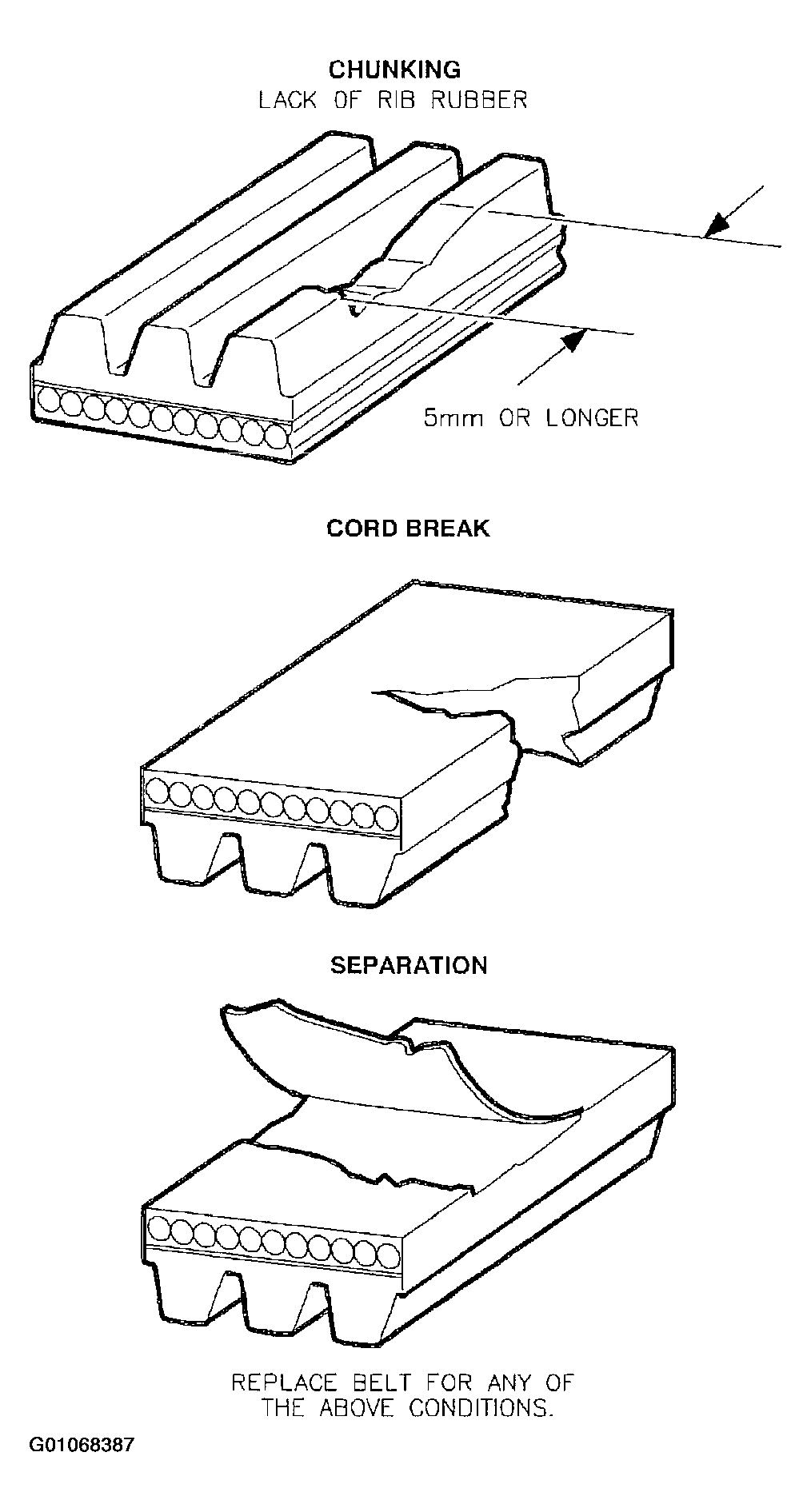

Fig 2: Identifying Chunking, Cord Break And Separation Conditions
G01068387Courtesy of GENERAL MOTORS CORP.
