Cigar Lighter/Power Outlet Schematics

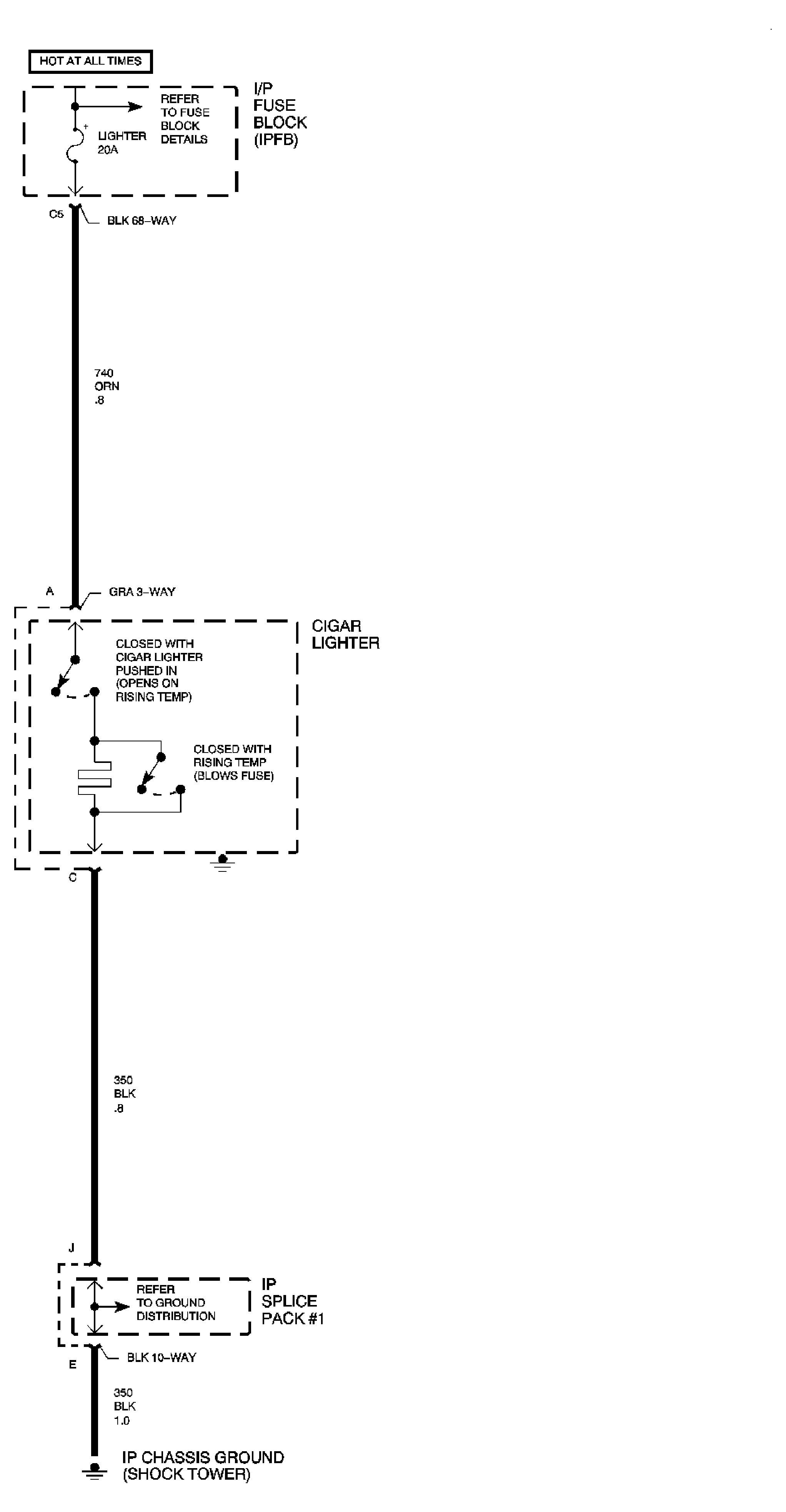

Fig 1: Cigar Lighter/Power Outlet Schematics

GM875298

Courtesy of GENERAL MOTORS CORP.
