Diagnostic System Check - Instrument Cluster

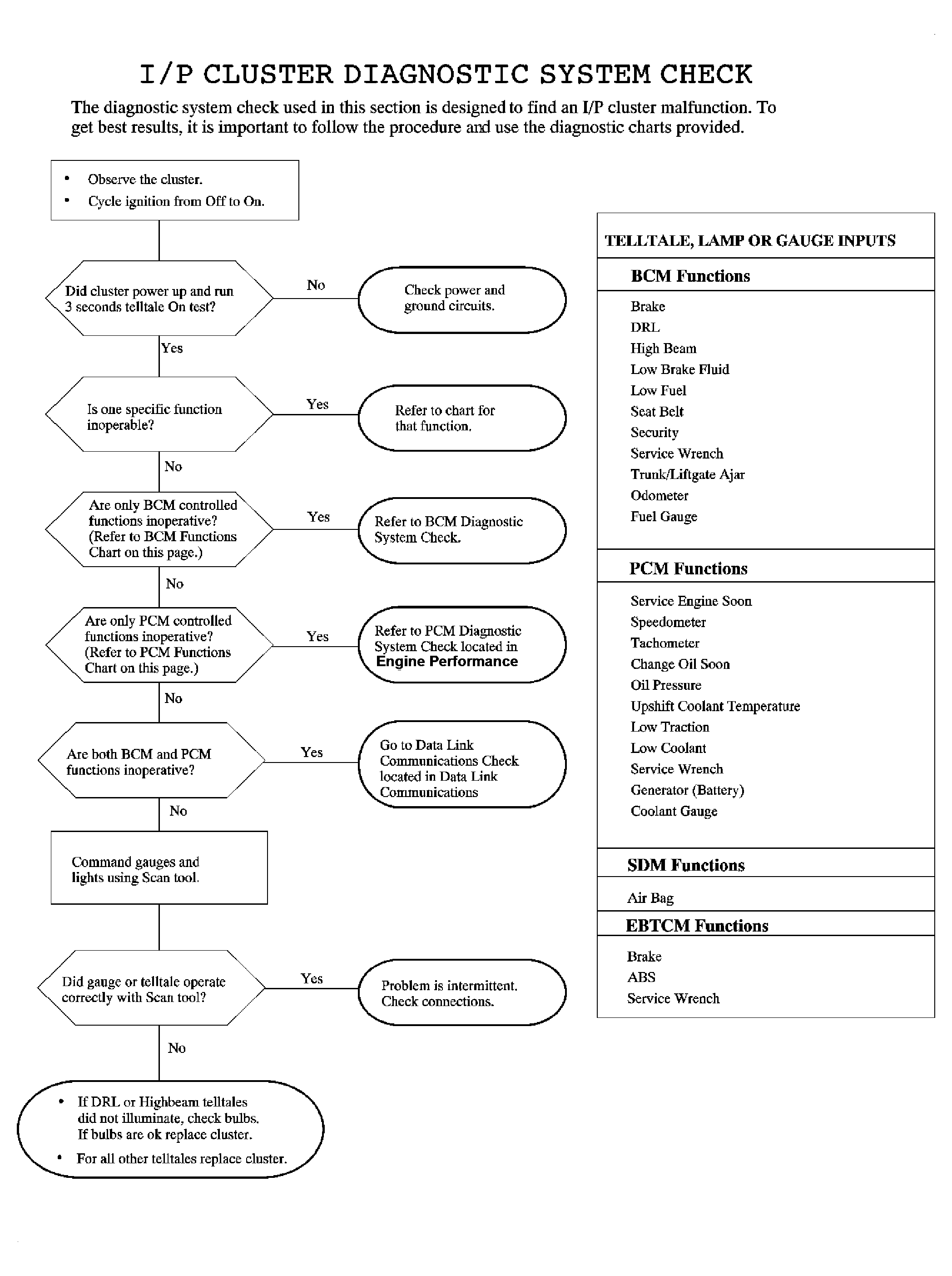

Fig 1: Diagnostic System Check - Instrument Cluster

GM879224

Courtesy of GENERAL MOTORS CORP.
