Sunroof Switch

Check for opens/shorts. Check the continuity of the switch in the OPEN, VENT, OFF, and CLOSE positions.

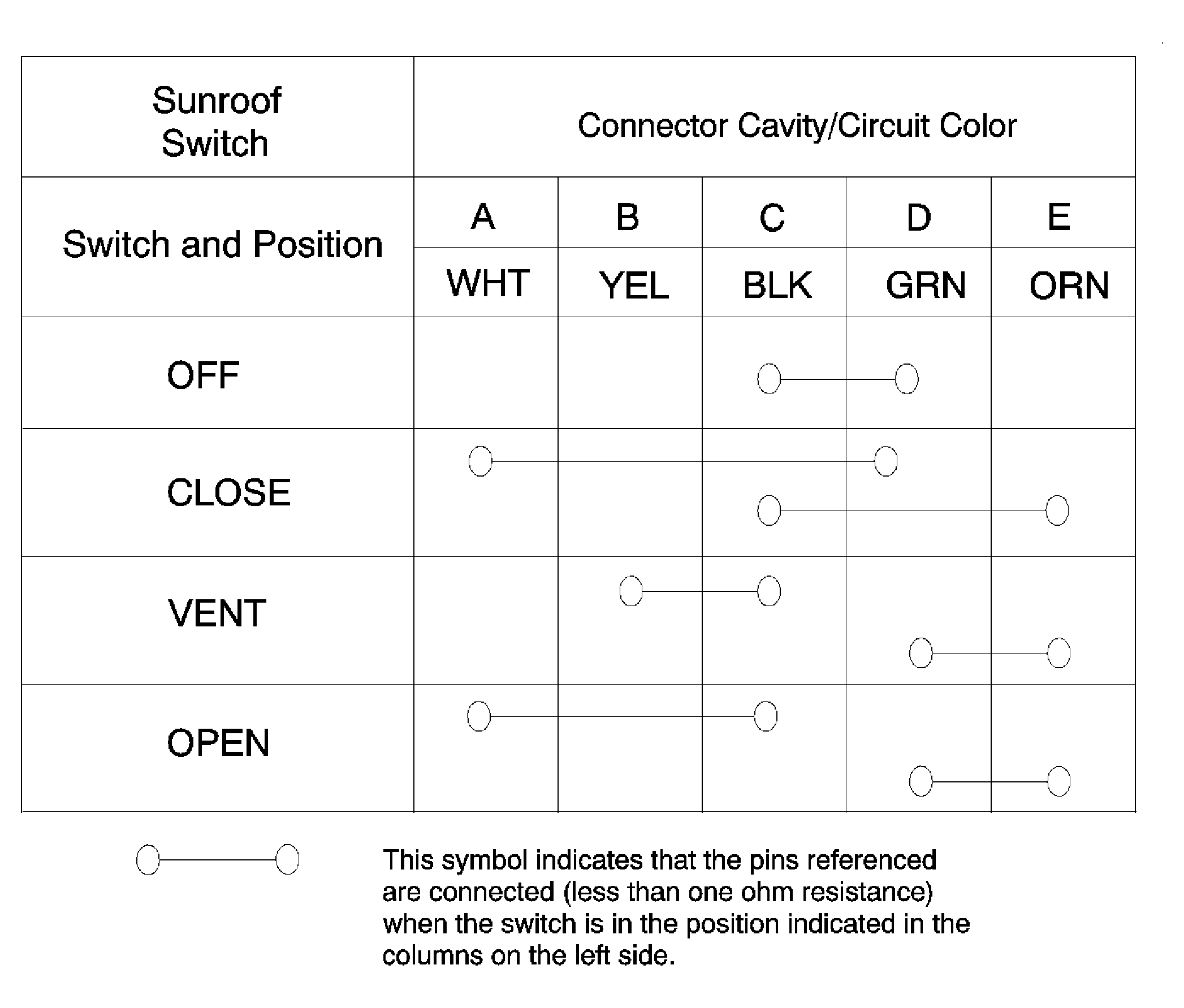

Fig 1: Sunroof Switch Continuity Chart
GM876061Courtesy of GENERAL MOTORS CORP.
